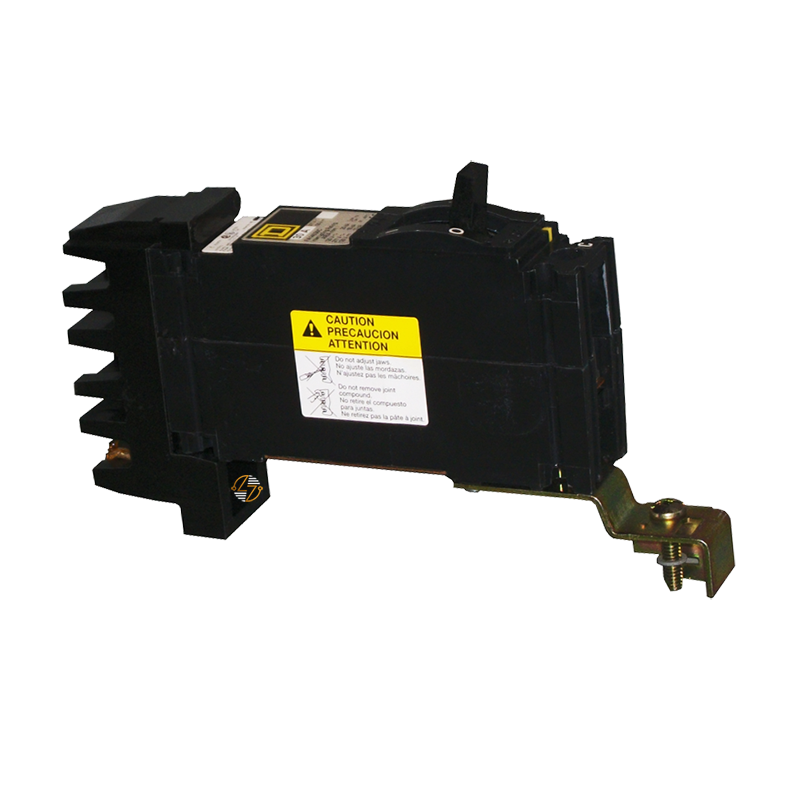

FH16020A - 20 Amp Circuit Breaker

FH16020A - 20 Amp Circuit Breaker

When you're replacing a circuit breaker in an existing electrical distribution system, matching the original specifications is just as important as restoring power. The Schneider Electric FH16020A is a 20 Amp, 1-pole molded case circuit breaker designed with an I-Line mounting configuration for use in compatible panelboards and switchboards. Whether you're performing preventive maintenance, replacing a failed breaker, or servicing legacy electrical systems, this breaker is engineered to provide the proper form, fit, and function required for approved replacement applications without modifying existing equipment.

Key Features and Benefits

• 20 Amp continuous current rating
• Single-pole molded case circuit breaker
• Thermal magnetic trip unit for overload and short-circuit protection
• I-Line mounting configuration for compatible panelboards and switchboards
• I-Line line connection with load-side lug terminals
• Designed for form, fit, and functional replacement in approved equipment
• Ideal for maintaining existing and legacy electrical systems
• Supports compatibility with original electrical distribution equipment
• Built to last


Technical Specifications

• Manufacturer: Schneider Electric

• Catalog Number: FH16020A

• Product Type: Molded Case Circuit Breaker

• Trip Unit Technology: Thermal Magnetic

• Current Rating: 20 Amps

• Number of Poles: 1 Pole

• Voltage Rating: 277 VAC

• Breaking Capacity Code: H

• Mounting Mode: I-Line

• Line Connection: I-Line

• Load Connection: Lugs

• Terminal Identifier: AL50FA

• Magnetic Hold Current: 275 Amps

• Magnetic Tripping Current: 600 Amps

• Height: 6.40 in.

• Width: 1.50 in.

• Depth: 4.13 in.

• Certifications: UL Listed, CSA

• GTIN: 00785901338918

• Country of Origin: Mexico


Material Compliance and Certifications

The Schneider Electric FH16020A molded case circuit breaker is UL Listed and CSA Certified for use in compatible electrical distribution equipment requiring thermal magnetic circuit protection.

Where It Works Best

• Compatible Schneider Electric I-Line panelboards and switchboards
• Replacement of Type FH molded case circuit breakers
• Commercial electrical distribution systems
• Industrial facilities
• Healthcare facilities
• Educational campuses
• Office buildings
• Retail and mixed-use commercial properties
• Branch circuit protection for lighting, receptacles, and control circuits
• Preventive maintenance and repair projects
