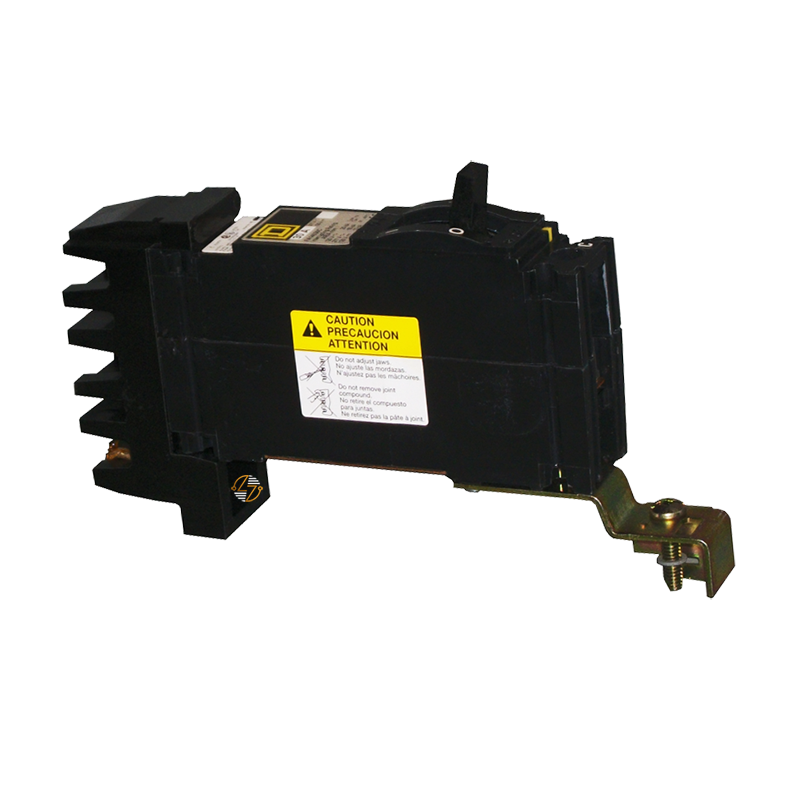

FH16015C - 15 Amp Circuit Breaker

FH16015C - 15 Amp Circuit Breaker

Finding the correct replacement circuit breaker is essential for maintaining the safety and reliability of an existing electrical distribution system. The Schneider Electric FH16015C is a 15 Amp, 1-pole molded case circuit breaker with a thermal-magnetic trip unit and an I-Line mounting configuration, making it a compatible replacement for approved I-Line electrical equipment.

If your application requires a Type FH molded case circuit breaker with I-Line mounting, the Schneider Electric FH16015C offers the ratings and configuration needed for many replacement applications.

Key Features and Benefits

• 15 Amp continuous current rating
• Single-pole molded case circuit breaker
• Thermal magnetic trip unit for overload and short-circuit protection
• I-Line mounting configuration
• I-Line line connection with load-side lug terminals
• Designed for form, fit, and functional replacement in compatible equipment
• Suitable for maintaining existing and legacy electrical systems
• Helps preserve original equipment electrical characteristics
• Built to last


Technical Specifications

• Manufacturer: Schneider Electric

• Catalog Number: FH16015C

• Product Type: Molded Case Circuit Breaker

• Trip Unit Technology: Thermal Magnetic

• Current Rating: 15 Amps

• Number of Poles: 1 Pole

• Breaking Capacity Code: H

• Voltage Rating: 277 VAC

• Mounting Mode: I-Line

• Line Connection: I-Line

• Load Connection: Lugs

• Terminal Identifier: AL50FA

• Magnetic Hold Current: 275 Amps

• Magnetic Tripping Current: 600 Amps

• Height: 6.40 in.

• Width: 1.50 in.

• Depth: 4.13 in.

• GTIN: 00785901563747

• Country of Origin: Mexico


Material Compliance and Certifications

The Schneider Electric FH16015C molded case circuit breaker is UL Listed and CSA Certified for use in compatible electrical distribution equipment requiring thermal magnetic circuit protection.

Where It Works Best

• Compatible I-Line panelboards and switchboards
• Replacement of Type FH molded case circuit breakers
• Commercial electrical distribution systems
• Industrial facilities
• Office buildings
• Healthcare facilities
• Educational campuses
• Branch circuit protection
• Lighting and control circuits
• Preventive maintenance and repair projects
