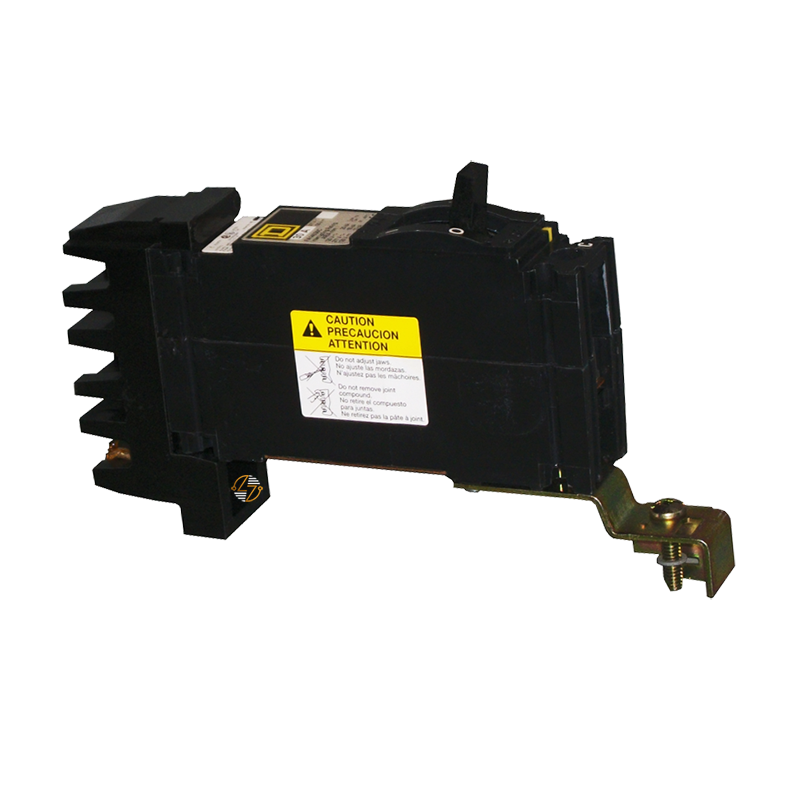

FH16015B - 15 Amp Circuit Breaker

FH16015B - 15 Amp Circuit Breaker

When replacing a circuit breaker in an existing electrical distribution system, compatibility is one of the most important considerations. The FH16015B is a 15 Amp, 1-pole molded case circuit breaker featuring thermal magnetic trip protection and an I-Line mounting configuration for use in compatible electrical equipment. Designed to provide the proper form, fit, and function in replacement applications, this breaker helps maintain the original design of commercial and industrial electrical systems. Whether you're performing preventive maintenance, replacing a damaged breaker, or restoring service after a fault, selecting the correct breaker helps keep downtime to a minimum while preserving the integrity of the existing installation.

Key Features and Benefits

• 15 Amp continuous current rating
• Single-pole molded case circuit breaker
• Thermal magnetic trip unit for overload and short-circuit protection
• I-Line mounting configuration
• I-Line line connection with load-side lug terminals
• Designed for form, fit, and functional replacement in compatible equipment
• Suitable for maintaining existing and legacy electrical systems
• Compatible with approved I-Line electrical distribution equipment
• Built to last


Technical Specifications

• Manufacturer: Schneider Electric

• Catalog Number: FH16015B

• Product Type: Molded Case Circuit Breaker

• Trip Unit Technology: Thermal Magnetic

• Current Rating: 15 Amps

• Number of Poles: 1

• Breaking Capacity Code: H

• Mounting Mode: I-Line

• Line Connection: I-Line

• Load Connection: Lugs

• Terminal Identifier: AL50FA

• Magnetic Hold Current: 275 Amps

• Magnetic Tripping Current: 600 Amps

• Height: 6.40 in.

• Width: 1.50 in.

• Depth: 4.13 in.

• GTIN: 00785901563730

• Country of Origin: Mexico


Material Compliance and Certifications

The FH16015B molded case circuit breaker is UL Listed and CSA Certified for use in compatible electrical distribution equipment requiring thermal magnetic circuit protection.

Where It Works Best

• Replacement of compatible I-Line molded case circuit breakers
• Commercial electrical distribution systems
• Industrial facilities
• Office buildings
• Healthcare facilities
• Educational campuses
• Branch circuit protection
• Lighting and control circuits
• Preventive maintenance and repair projects
