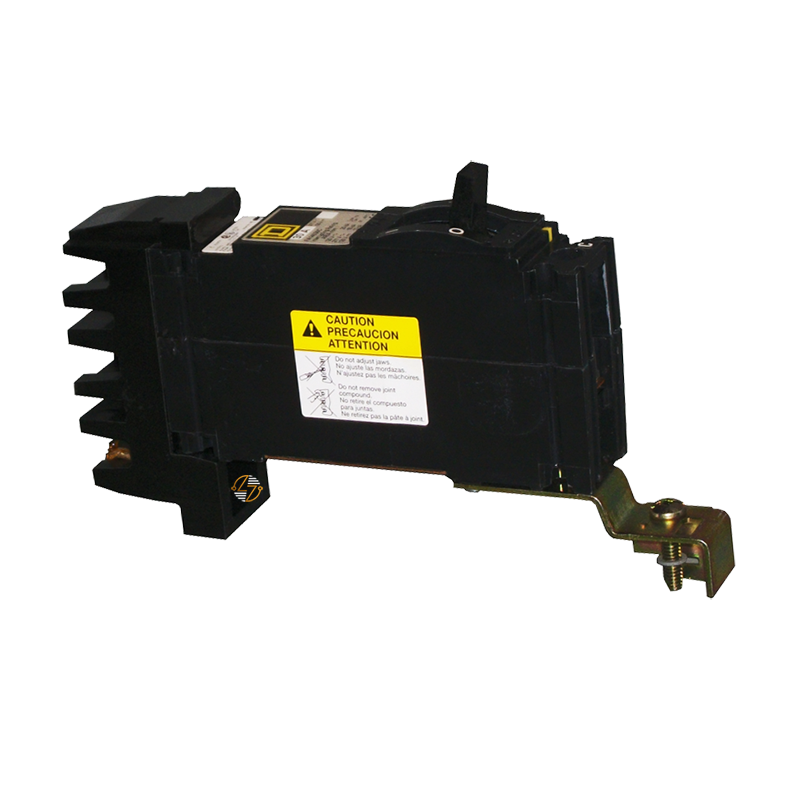

FH16015A - 15 Amp Circuit Breaker

FH16015A - 15 Amp Circuit Breaker

Choosing the right replacement circuit breaker starts with making sure it matches the original equipment. The FH16015A is a 15 Amp, 1-pole molded case circuit breaker with thermal magnetic trip protection and an I-Line mounting configuration, making it a practical replacement for compatible electrical distribution systems. Whether you're performing preventive maintenance or replacing a failed breaker, selecting a compatible replacement helps keep your electrical system operating as intended without unnecessary modifications.

Key Features and Benefits

• 15 Amp continuous current rating
• Single-pole molded case circuit breaker
• Thermal magnetic trip unit for overload and short-circuit protection
• I-Line mounting configuration
• I-Line line connection with load-side lug terminals
• Designed for replacement applications requiring matching form, fit, and function
• Suitable for compatible commercial and industrial electrical distribution equipment
• Helps maintain existing and legacy electrical systems
• Built to last


Technical Specifications

• Manufacturer: Schneider Electric

• Catalog Number: FH16015A

• Product Type: Molded Case Circuit Breaker

• Trip Unit Technology: Thermal Magnetic

• Current Rating: 15 Amps

• Number of Poles: 1

• Mounting Mode: I-Line

• Line Connection: I-Line

• Load Connection: Lugs

• Terminal Identifier: AL50FA

• Magnetic Hold Current: 275 Amps

• Magnetic Tripping Current: 600 Amps

• Height: 6.40 in.

• Width: 1.50 in.

• Depth: 4.13 in.

• GTIN: 00785901563723

• Country of Origin: Mexico


Material Compliance and Certifications

The FH16015A molded case circuit breaker is UL Listed and CSA Certified for use in compatible electrical distribution equipment requiring thermal magnetic circuit protection.

Where It Works Best

• Replacement of compatible I-Line molded case circuit breakers
• Existing commercial electrical distribution systems
• Industrial manufacturing facilities
• Office buildings
• Healthcare facilities
• Educational campuses
• Branch circuit protection
• Lighting and control circuits
• Maintenance of existing electrical systems and legacy equipment
