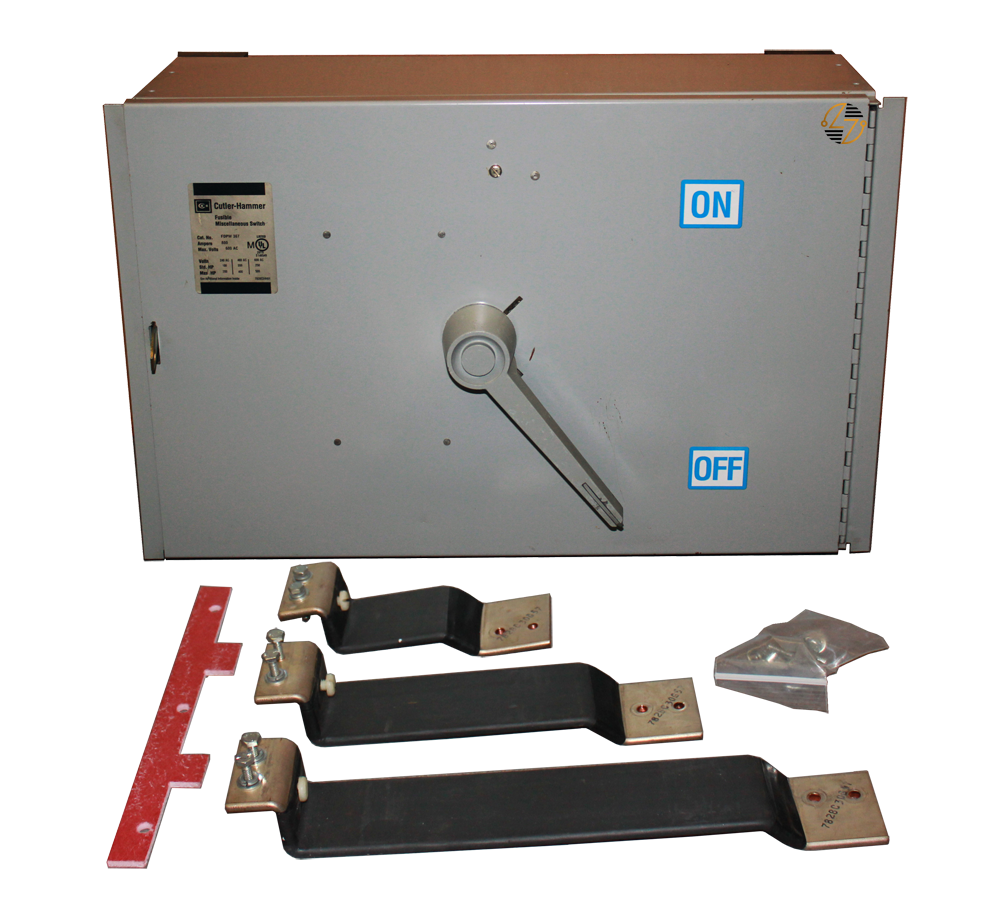

FDPW326R w/ Mounting Kit - 600Amp Panelboard Switch

FDPW326R w/ Mounting Kit - 600Amp Panelboard Switch

The Eaton FDPW326R makes it easy to handle high-power electrical systems. It runs on 250 Volts A.C. and 600 Amps, keeping your circuits safe. The bolt-in design holds it securely in place, and the mounting strap kit helps with a fast, straightforward installation. It works with Class RK1 or RK5 fuses, so you can use whichever fits your setup. Whether it’s for an industrial plant, a commercial building, or a large project, this switch keeps your power running reliably.

Key Features and Benefits

• Fusible Single Unit: Fits Class RK1 and RK5 fuses for solid protection.
• Bolt-In Installation: Stays in place and is easy to install.
• Mounting Kit Included: Makes setup quicker and simpler.
• Sturdy Frame: FDPW frame stands up to tough conditions.

Technical Specifications

• Voltage: 250 Volts A.C.
• Amperage: 600 Amps
• Frame Type: FDPW
• Poles: 3
• Fuse Compatibility: Class RK1 and RK5
• Dimensions:
  • Width: 22.00"
  • Height: 15.00"
  • Depth: 7.00"
• Includes: Mounting hardware strap kit

Material Compliance and Certifications

• UL Certified: Meets safety standards.
• Eco-Friendly: Made from RoHS-compliant materials.
• ISO-Certified: Built under quality checks for reliable performance.

Where It Works Best

• Industrial Facilities: Handles heavy electrical loads safely.
• Commercial Spaces: Powers offices, retail stores, and other busy areas.
• Infrastructure Projects: Works in larger, complex electrical systems.
