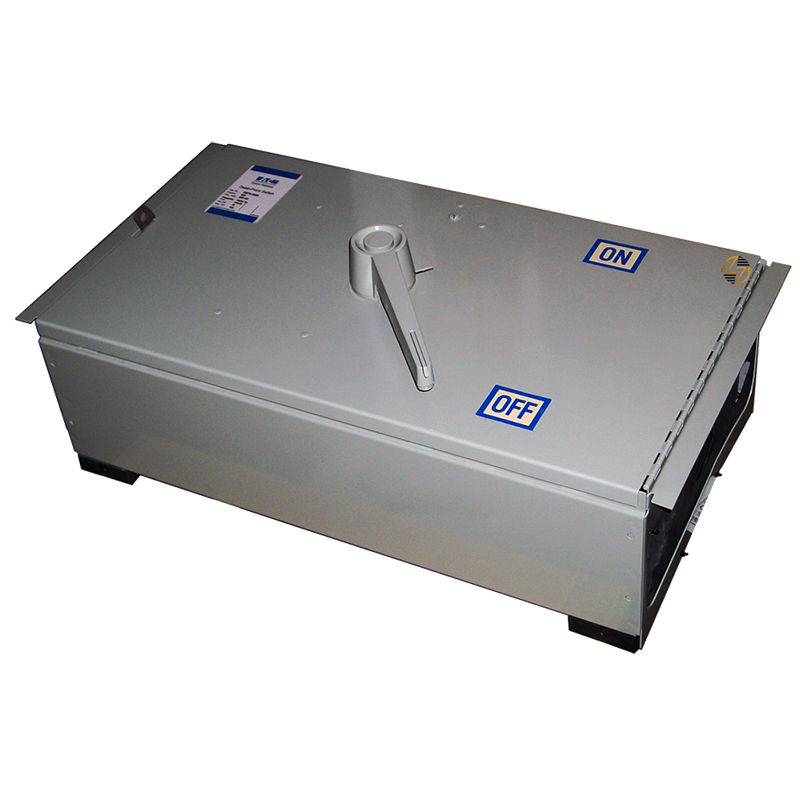

FDPW326MR - 600Amp Panelboard Switch

FDPW326MR - 600Amp Panelboard Switch

The Eaton FDPW326MR handles high electrical loads safely and easily. It carries up to 600 amps at 250 Volts A.C. The top-feed “MAIN” design keeps wiring simple, and the bolt-in installation keeps the switch secure. It works with Class RK1 and RK5 fuses, giving reliable protection without extra hassle.

Key Features and Benefits

• Single-Unit Fusible: Works with Class RK1 or RK5 fuses for safe operation.
• Bolt-In Installation: Quick to mount and stays put.
• Handles Heavy Loads: Rated for 600 amps at 250 Volts A.C.
• Easy to Access: Top-feed layout makes wiring and service simple.

Technical Specifications

• Voltage: 250 Volts A.C.
• Current: 600 Amperes
• Frame Type: FDPW
• Poles: 3
• Fuse Compatibility: Class RK1 and RK5
• Dimensions: 22" W x 15" H x 7" D
• Configuration: Bolt-in Type “MAIN”

Material Compliance and Certifications

• UL Certified: Meets safety standards.
• RoHS-Compliant: Made with safe, eco-friendly materials.
• ISO-Certified: Built with consistent quality for reliable performance.

Where It Works Best

• Industrial Plants: Perfect for factories and processing areas.
• Commercial Spaces: Keeps offices, retail locations, and busy areas running smoothly.
• Infrastructure Projects: Great for larger setups where safety and reliability matter.
