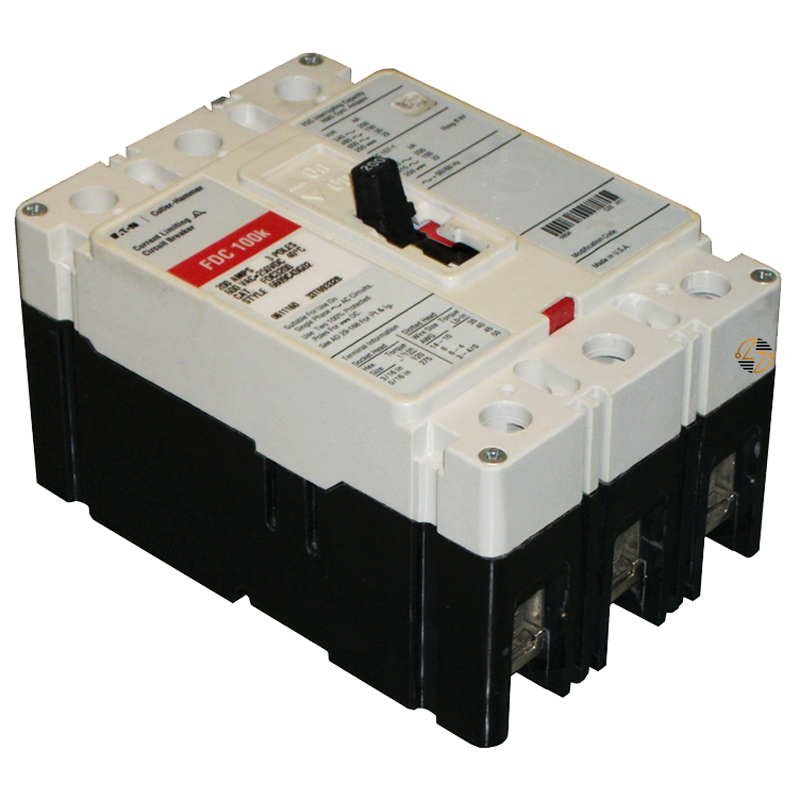

FDC3225L 225A Circuit Breaker

FDC3225L 225A Circuit Breaker

The Eaton FDC3225L is a robust and reliable circuit breaker designed for demanding industrial and commercial applications. Part of Eaton's Series C complete molded case circuit breakers, this model offers superior performance and safety, making it a top choice for electrical systems requiring dependable protection and control. With a 225A current rating, it is well-suited for high-capacity circuits, ensuring efficient power distribution and fault protection.

Key Features and Benefits:

• High Current Capacity: With a 225A rating, the FDC3225L is ideal for large-scale electrical systems, providing ample capacity for a variety of applications.
• Thermal Magnetic Trip: This feature ensures precise protection against overcurrent conditions, combining thermal and magnetic trip mechanisms for enhanced safety.
• Durability: Constructed with high-quality materials and a robust design, the FDC3225L is built to withstand the rigors of industrial environments.
• High Interrupting Capacity: Boasting a 100 kAIC rating at 480 Vac and 200 kAIC at 240 Vac, it can handle high fault currents, providing superior protection for your electrical system.

Technical Specifications:

• Amperage Rating: 225 A
• Voltage Rating: 600 Vac, 250 Vdc
• Trip Type: Fixed thermal, fixed magnetic
• Frame Type: F-Frame
• Interrupting Capacity: 100 kAIC at 480 Vac, 200 kAIC at 240 Vac
• Number of Poles: Three
• Dimensions: 3.38 in (Depth) x 4.13 in (Height) x 4.13 in (Width)
• Weight: 4.5 lb
• Frequency Rating: 50 to 60 Hz

Material Compliance and Certifications:

• The Eaton FDC3225L is UL listed, ensuring it meets stringent safety and performance standards. Eaton follows rigorous quality control processes to ensure that all their products, including the FDC3225L, comply with industry regulations and standards.

Suitability:

• Industrial Facilities: Perfect for heavy-duty machinery and high-power electrical systems.
• Commercial Buildings: Ideal for large-scale electrical distribution in office buildings, shopping centers, and more.
• Energy Sector: Suitable for power distribution in renewable energy installations and traditional power plants.
• Infrastructure Projects: Well-suited for use in large infrastructure projects such as airports, railway stations, and data centers.

By choosing the Eaton FDC3225L, you are investing in a circuit breaker that combines reliability, safety, and performance, making it an excellent choice for protecting your electrical systems.
