FDC3225 225A Circuit Breaker

FDC3225 225A Circuit Breaker

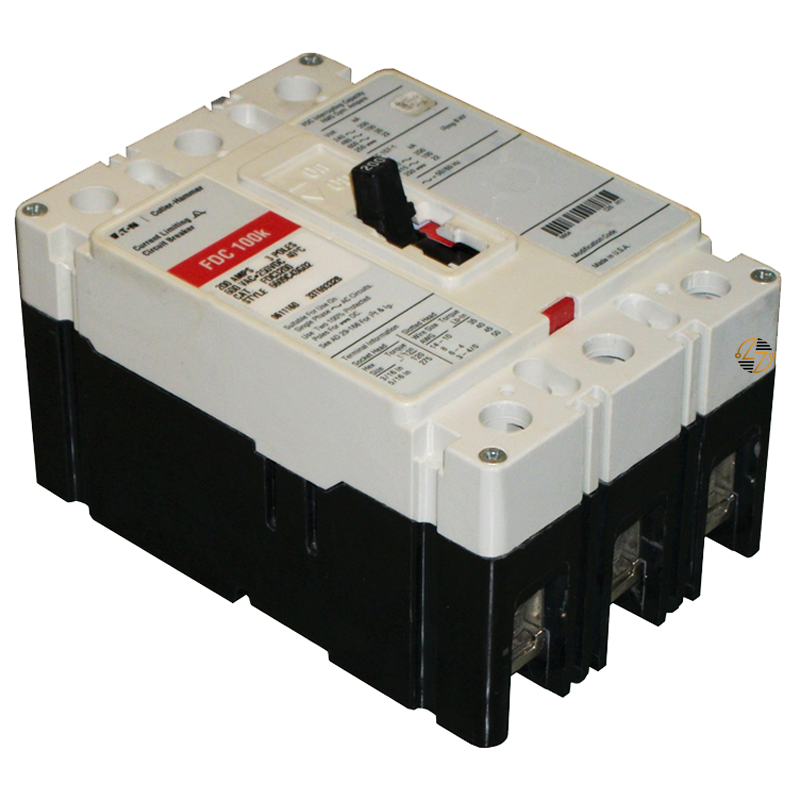

The Eaton FDC3225 Circuit Breaker, part of the Series C family, is designed to provide robust and reliable protection for industrial electrical systems. With a current rating of 225A and a thermal magnetic trip mechanism, this three-pole molded case circuit breaker ensures efficient operation and safety in demanding environments.

Key Features and Benefits:

• High Amperage Capacity: Rated at 225A, suitable for high-demand industrial applications.
• Thermal Magnetic Trip: Ensures precise protection against overloads and short circuits.
• Compact Design: Facilitates easy integration into existing electrical systems with limited space.
• High Interrupting Capacity: 100 kAIC at 480 Vac and 200 kAIC at 240 Vac, ensuring reliable interruption of fault currents.
• Durable Construction: Built to withstand harsh industrial environments, ensuring long-term reliability and performance.

Technical Specifications:

• UPC: 786679019580
• Voltage Rating: 600 Vac, 250 Vdc
• Frequency Rating: 50 to 60 Hz
• Interrupting Capacity: 100 kAIC at 480 Vac, 200 kAIC at 240 Vac
• Number of Poles: 3
• Trip Type: Fixed thermal, fixed magnetic
• Frame Type: F-frame
• Mounting: Load side terminals

Material Compliance and Certifications:

• UL Listed: Meets the stringent safety and performance standards set by Underwriters Laboratories.
• Environmental Compliance: Designed with materials that comply with environmental regulations, ensuring minimal impact on the environment.

Suitability:

• The FDC3225 circuit breaker is ideal for use in a variety of industrial applications where reliable protection and efficient operation are critical. Its high interrupting capacity makes it suitable for installations with high fault current levels, while its compact and durable design ensures it can withstand the rigors of industrial use. Whether for new installations or upgrades, the FDC3225 offers the reliability and performance needed to protect valuable electrical infrastructure.
