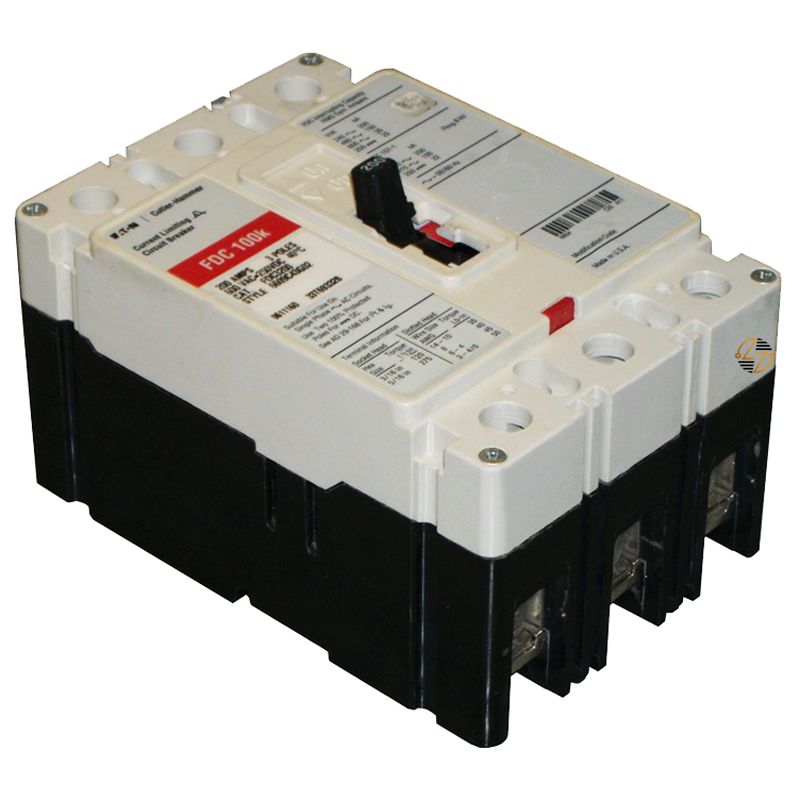

FDC3200L 200A Circuit Breaker

FDC3200L 200A Circuit Breaker

The Eaton FDC3200L is a top-tier Series C complete molded case circuit breaker designed to ensure robust protection for electrical systems in commercial and industrial environments. This 200A, three-pole breaker is engineered for superior performance, reliability, and safety, making it an ideal choice for demanding applications that require consistent and secure power distribution. The FDC3200L features a fixed thermal and fixed magnetic trip mechanism, ensuring precise and rapid response to overloads and short circuits, thereby protecting your electrical infrastructure from potential damage.

Key Features and Benefits:

• High Interrupting Capacity: The FDC3200L offers a remarkable interrupting capacity of 100 kAIC at 480V AC and 200 kAIC at 240V AC, providing superior protection against electrical faults.
• Thermal Magnetic Trip: The fixed thermal and fixed magnetic trip units ensure fast and accurate interruption of overcurrent events, safeguarding your equipment and minimizing downtime.
• Durability and Reliability: Built with robust materials and cutting-edge manufacturing processes, the FDC3200L promises long-lasting performance even in harsh operational environments.
• Compact Design: Its compact and lightweight design allows for flexible installation options, making it suitable for space-constrained applications.
• Ease of Installation: Equipped with line and load terminals, the circuit breaker simplifies the installation process, ensuring a secure and efficient setup.

Technical Specifications:

• Amperage Rating: 200A
• Voltage Rating: 600V AC, 250V DC
• Trip Type: Fixed thermal, fixed magnetic
• Interrupting Capacity: 100 kAIC at 480V AC, 200 kAIC at 240V AC
• Frequency Rating: 50 to 60 Hz
• Number of Poles: Three
• Dimensions: 3.38 in (L) x 4.13 in (W) x 4.13 in (H)
• Weight: 4.5 lbs

Material Compliance and Certifications:

• The Eaton FDC3200L circuit breaker is UL Listed, ensuring compliance with rigorous safety and performance standards. Additionally, it adheres to Eaton's stringent manufacturing policies and quality control procedures, providing users with peace of mind and assurance of product reliability.

Suitability:

• The FDC3200L is ideally suited for use in commercial and industrial settings that demand high reliability and robust protection. Its high interrupting capacity and precise trip mechanisms make it perfect for applications involving heavy machinery, power distribution panels, and other critical electrical systems. Whether used in manufacturing plants, commercial buildings, or infrastructure projects, the FDC3200L delivers dependable performance and enhances overall system safety.

By incorporating the Eaton FDC3200L circuit breaker into your electrical systems, you are investing in a product that combines superior protection, reliability, and ease of use, ensuring optimal operational efficiency and safety.
