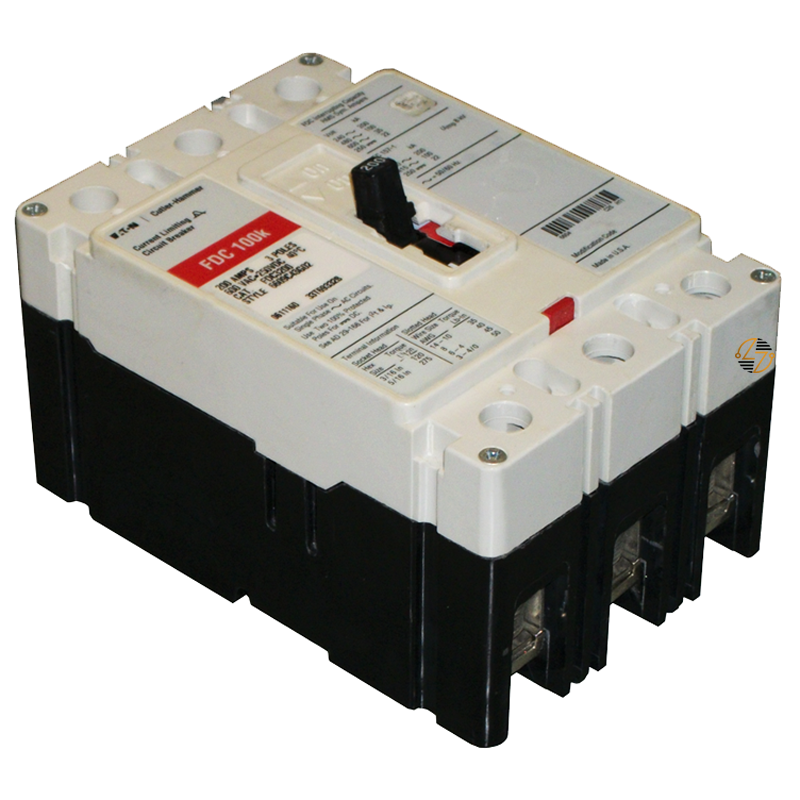

FDC3200 - 200Amp Circuit Breaker

FDC3200 - 200Amp Circuit Breaker

The Eaton FDC3200 is a robust, high-performance molded case circuit breaker from the renowned Series C range. Designed to provide superior circuit protection, this breaker is ideal for a variety of industrial and commercial applications. With its advanced thermal magnetic trip unit and impressive interrupting capacity, the FDC3200 ensures reliable and safe operation in demanding environments.

Key Features and Benefits:

• High Interrupting Capacity: Rated at 200 kAIC at 240 Vac and 100 kAIC at 480 Vac, the FDC3200 can handle high fault currents, providing enhanced protection for your electrical system.
• Thermal Magnetic Trip Unit: The fixed thermal and magnetic trip unit offers precise and reliable protection against overloads and short circuits, ensuring the safety of connected equipment.
• Versatile Applications: Suitable for a wide range of applications, including motor protection, feeder protection, and branch circuit protection, making it a versatile choice for various electrical systems.

Technical Specifications:

• Amperage Rating: 200 A
• Voltage Rating: 600 Vac, 250 Vdc
• Frequency Rating: 50 to 60 Hz
• Number of Poles: Three-pole
• Frame Type: F-Frame
• Interrupt Rating: 200 kAIC at 240 Vac, 100 kAIC at 480 Vac
• Dimensions: Length 3.38 in, Height 4.13 in, Width 4.13 in
• Weight: 4.5 lb

Material Compliance and Certifications:

• The Eaton FDC3200 circuit breaker is UL listed, adhering to rigorous safety standards. Eaton’s commitment to quality ensures that this product complies with relevant material safety regulations and is manufactured using high-quality, durable materials.

Suitability:

• The Eaton FDC3200 is ideal for use in industrial and commercial settings where high interrupting capacity and reliable protection are critical. It is suitable for protecting motors, feeders, and branch circuits in manufacturing plants, commercial buildings, and other facilities requiring robust circuit protection solutions.
