FDC3150 150A Circuit Breaker

FDC3150 150A Circuit Breaker

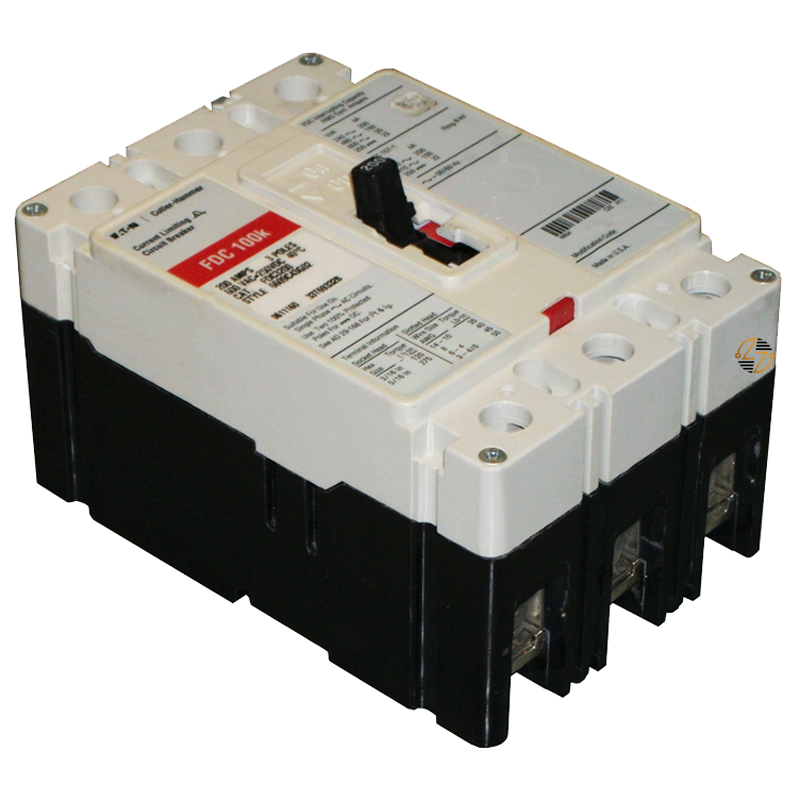

The Eaton FDC3150 is a high-performance circuit breaker designed to provide robust protection for electrical systems in commercial and industrial settings. As part of Eaton’s Series C line, this molded case circuit breaker offers superior reliability and safety features, making it an excellent choice for safeguarding critical electrical infrastructures. The FDC3150 is a three-pole breaker with a fixed thermal and magnetic trip type, ensuring precise and consistent protection against overcurrent conditions.

Key Features and Benefits

• High Interrupting Capacity: With an interrupting capacity of 200 kAIC at 240 Vac and 100 kAIC at 480 Vac, the FDC3150 provides exceptional protection against short circuits and electrical faults.
• Durable Construction: Built with robust materials, this breaker ensures long-term durability and reliability in demanding environments.
• Fixed Thermal and Magnetic Trip: Offers consistent protection by automatically disconnecting power in overcurrent situations, enhancing safety and preventing damage to electrical systems.
• Compact Design: The compact form factor allows for easy installation and integration into various electrical panels and enclosures.
• Versatile Applications: Suitable for a wide range of applications, including commercial buildings, industrial facilities, and power distribution systems.

Technical Specifications

• Amperage Rating: 150 A
• Voltage Rating: 600 Vac, 250 Vdc
• Interrupt Rating: 200 kAIC at 240 Vac, 100 kAIC at 480 Vac
• Number of Poles: Three-pole
• Trip Type: Fixed thermal, fixed magnetic
• Frequency: 50/60 Hz
• Dimensions: Length 7.6 in, Height 4.9 in, Width 5 in
• Weight: 4.25 lb

Material Compliance and Certifications

• UL Listed: Ensures compliance with industry safety standards, providing peace of mind and ensuring regulatory compliance.
• Eaton Quality Assurance: As a product of Eaton, a leader in power management solutions, the FDC3150 benefits from rigorous quality control processes and extensive testing to meet the highest standards of performance and safety.

Suitability

• The Eaton FDC3150 circuit breaker is ideally suited for use in environments where reliable overcurrent protection is critical. Its high interrupting capacity makes it particularly effective in protecting high-capacity electrical systems from potential faults. Whether used in new installations or retrofit projects, the FDC3150 offers dependable performance and ease of maintenance, making it a preferred choice for electrical professionals and facility managers.

This breaker is particularly beneficial in settings such as data centers, manufacturing plants, and commercial buildings where electrical stability and safety are paramount.
