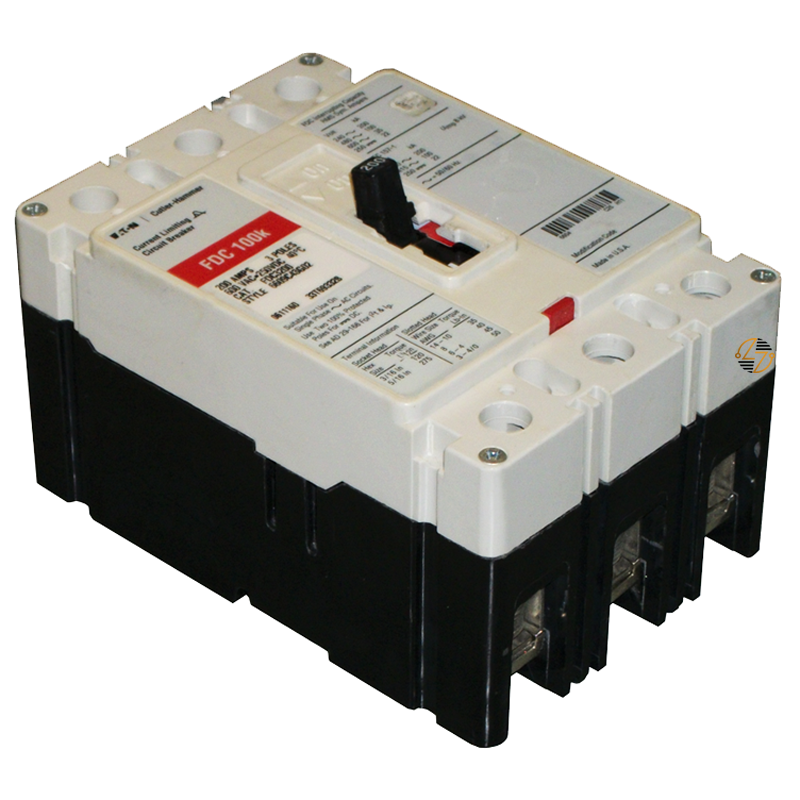

FDC3125L 125A Circuit Breaker

FDC3125L 125A Circuit Breaker

The Eaton FDC3125L is a top-of-the-line, Series C complete molded case circuit breaker designed for high-performance and reliability in demanding electrical applications. Engineered with fixed thermal and magnetic trip types, this three-pole breaker is ideal for safeguarding electrical systems in commercial and industrial settings. With a 125A current rating and the capability to handle 600 Vac and 250 Vdc, it ensures robust protection and operational efficiency.

Key Features and Benefits

• High Interrupting Capacity: Boasting a 200 kAIC at 240 Vac and 100 kAIC at 480 Vac, this breaker provides exceptional fault current interruption, enhancing safety and system protection.
• Versatile Application: Suitable for both line and load connections, it supports a wide range of applications with a frequency rating of 50/60 Hz.
• Reliable Trip Mechanism: The fixed thermal and magnetic trip types ensure consistent and reliable performance, preventing overheating and electrical faults.

Technical Specifications

• Amperage Rating: 125 A
• Voltage Rating: 600 Vac, 250 Vdc
• Interrupt Rating: 200 kAIC at 240 Vac, 100 kAIC at 480 Vac
• Poles: Three-pole
• Trip Type: Fixed thermal, fixed magnetic
• Frequency Rating: 50/60 Hz
• Dimensions: 3.38 in (L) x 4.13 in (H) x 4.13 in (W)
• Weight: 4.5 lb

Material Compliance and Certifications

• UL Listed: Ensures compliance with rigorous safety standards.
• Certifications: Backed by Eaton’s commitment to quality and performance, the FDC3125L meets all necessary industry certifications and standards.

Suitability

• The Eaton FDC3125L is suitable for use in a variety of settings, including commercial buildings, industrial plants, and critical infrastructure. Its high interrupting capacity and reliable trip mechanism make it an excellent choice for protecting electrical systems against overloads and short circuits, ensuring operational continuity and safety.
