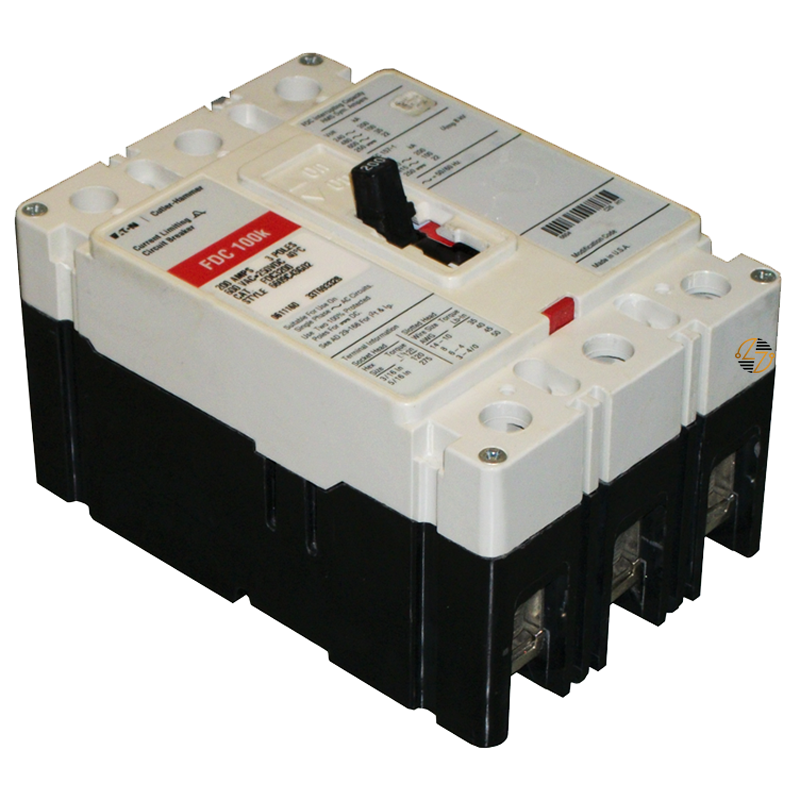

FDC3100L - 100Amp Circuit Breaker

FDC3100L - 100Amp Circuit Breaker

The Eaton FDC3100L is a premier choice in the Series C complete molded case circuit breakers, designed to provide reliable and efficient protection in various electrical systems. With its robust construction and advanced safety features, this circuit breaker is ideal for industrial, commercial, and high-performance applications. The FDC3100L ensures optimal performance and safety, making it a crucial component in any electrical distribution system.

Key Features and Benefits:

• High Interrupting Capacity: The FDC3100L boasts an impressive interrupt rating of 200 kAIC at 240 Vac and 100 kAIC at 480 Vac, ensuring robust protection against electrical faults.
• Fixed Thermal and Magnetic Trip: This circuit breaker features fixed thermal and fixed magnetic trip settings, providing consistent and reliable protection.
• Versatile Applications: Suitable for a wide range of applications, including industrial machinery, commercial buildings, and electrical distribution systems.
• Durable Construction: Built to withstand harsh environments, the FDC3100L ensures long-lasting performance with minimal maintenance.
• Easy Installation: Designed with line and load terminals, the FDC3100L allows for straightforward installation and integration into existing systems.

Technical Specifications:

• Amperage Rating: 100A
• Voltage Rating: 600 Vac, 250 Vdc
• Poles: Three-pole
• Frequency Rating: 50/60 Hz
• Trip Type: Fixed thermal, fixed magnetic
• Dimensions: 3.38 in (Depth) x 6 in (Height) x 4.13 in (Width)
• Weight: 4 lb
• Interrupt Rating: 200 kAIC at 240 Vac, 100 kAIC at 480 Vac

Material Compliance and Certifications:

• The FDC3100L circuit breaker is UL listed, ensuring it meets stringent safety and performance standards. Eaton's commitment to quality and compliance guarantees that this breaker is manufactured to the highest industry standards, providing peace of mind in demanding electrical applications.

Suitability:

• The Eaton FDC3100L is perfectly suited for high-capacity electrical systems that require dependable circuit protection. It is an excellent choice for protecting motors, transformers, and other critical electrical equipment in industrial plants, commercial facilities, and infrastructure projects. Its high interrupting capacity makes it particularly suitable for environments with potential for significant electrical faults.
