FDC3080 80A Circuit Breaker

FDC3080 80A Circuit Breaker

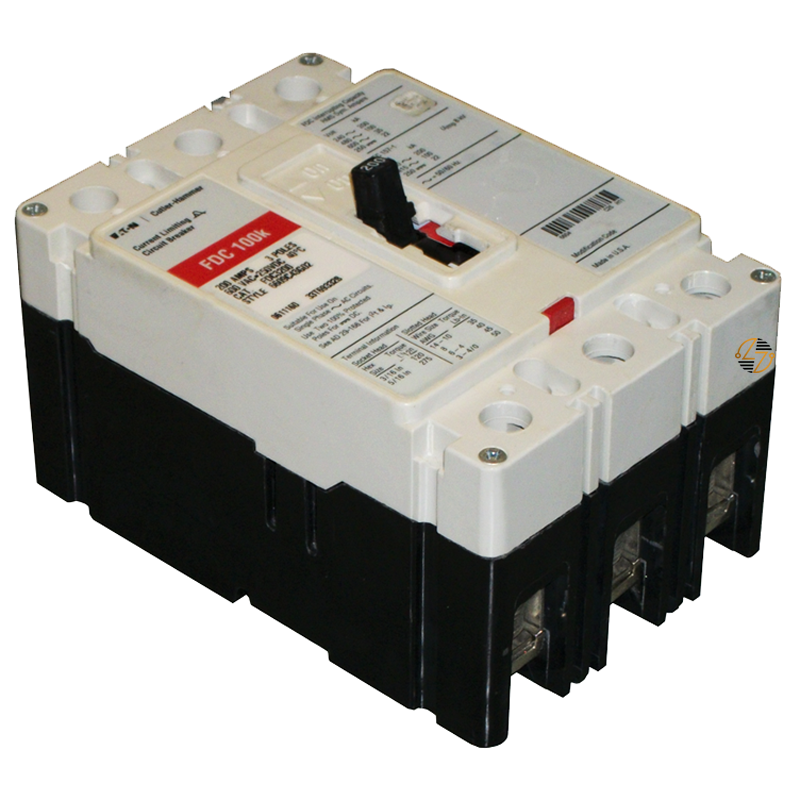

The Eaton FDC3080 is a premium, robust solution within the Series C molded case circuit breaker family, designed to provide exceptional performance and reliability in demanding electrical applications. This F-frame circuit breaker is engineered to deliver superior protection with its fixed thermal and magnetic trip mechanism, ensuring optimal safety and functionality for a wide range of industrial and commercial environments.

Key Features and Benefits

• High Interrupting Capacity: The FDC3080 offers an impressive interrupting capacity of 200 kAIC at 240 Vac and 100 kAIC at 480 Vac, providing reliable protection against short circuits and ensuring system integrity.
• Versatile Application: With its three-pole design and compatibility with both AC and DC systems, this circuit breaker is versatile, suitable for various applications including industrial machinery, commercial buildings, and electrical panels.
• Fixed Thermal and Magnetic Trip: The fixed trip units provide consistent and reliable protection by responding accurately to overloads and short circuits, minimizing the risk of equipment damage and enhancing operational safety.

Technical Specifications

• Amperage Rating: 80A
• Voltage Rating: 600 Vac, 250 Vdc
• Interrupting Capacity: 200 kAIC at 240 Vac, 100 kAIC at 480 Vac
• Number of Poles: 3
• Trip Type: Fixed thermal, fixed magnetic
• Frequency Rating: 50/60 Hz
• Dimensions: 3.38 in (L) x 6 in (H) x 4.13 in (W)
• Weight: 4 lb

Material Compliance and Certifications

• Certifications: UL Listed, ensuring compliance with rigorous safety and performance standards.
• Compliance: The FDC3080 adheres to industry regulations and environmental standards, making it a reliable and eco-friendly choice for modern electrical systems.

Suitability

• Industrial Facilities: Ideal for protecting heavy machinery and industrial equipment from electrical faults.
• Commercial Buildings: Provides reliable circuit protection in office buildings, shopping centers, and other commercial spaces.
• Electrical Panels: An excellent choice for integration into electrical distribution panels and switchboards, ensuring system reliability and safety.

Invest in the Eaton FDC3080 for your electrical protection needs and experience unparalleled performance and peace of mind with every installation.
