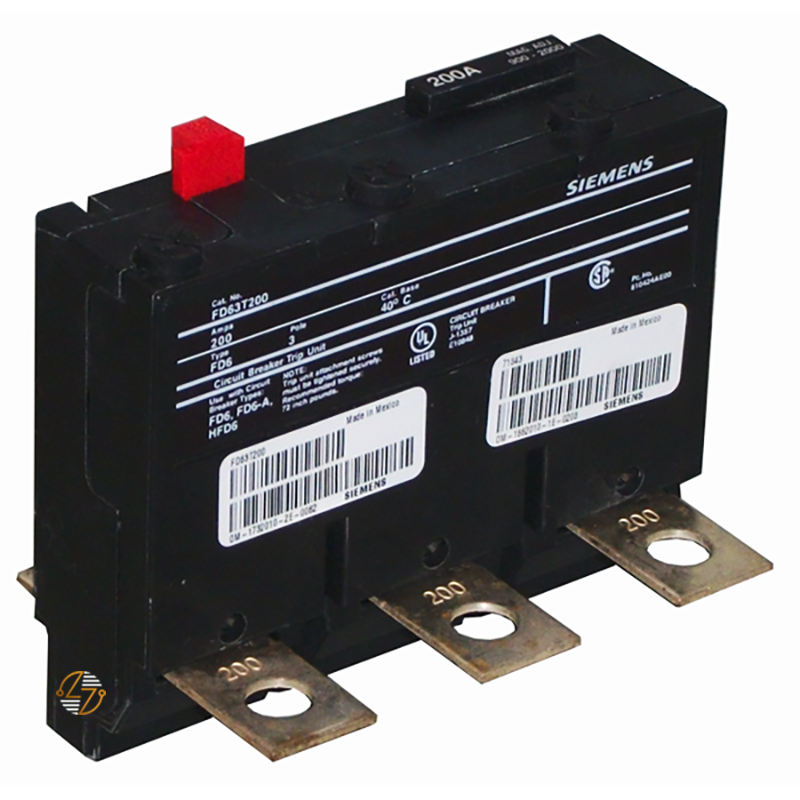

FD63T200 - 200Amp Trip Unit

FD63T200 - 200Amp Trip Unit

When your electrical system requires reliable protection at the 200 amp level, choosing a breaker that matches the application is critical. The FD63T200 Siemens circuit breaker is a 200 Amp, 3-pole molded case circuit breaker designed for commercial and industrial electrical distribution systems where dependable performance and safe operation are priorities. Built as part of the Siemens SENTRON FD frame family, this breaker helps protect your feeders, equipment, and distribution circuits from damaging overloads and short-circuit conditions.

This Siemens 3 pole circuit breaker is rated for 22kAIC at 600V and 35kAIC at 480V, providing the interrupting capacity needed for demanding electrical environments. Its compact FD frame design makes it a dependable choice for compatible electrical distribution equipment, whether you are replacing an existing breaker, upgrading a system, or installing new equipment.

Key Features and Benefits

• 200 Amp, 3-pole Siemens SENTRON molded case circuit breaker
• Designed for commercial and industrial electrical distribution systems
• Thermal magnetic trip technology provides overload and short-circuit protection
• Rated for 600 VAC electrical systems
• 22kAIC interrupting capacity at 600V
• 35kAIC interrupting capacity at 480V
• Includes line and load side lugs for simplified installation
• Supports both copper and aluminum conductors
• Accepts 6 AWG–350 kcmil copper wire
• Accepts 4 AWG–350 kcmil aluminum wire
• Siemens FD frame design for compatible electrical equipment


Technical Specifications

• Catalog Number: FD63T200

• Manufacturer: Siemens

• Product Type: Molded Case Circuit Breaker (MCCB)

• Series: Siemens SENTRON FD Frame

• Frame Size: FD6

• Amperage Rating: 200 Amps

• Number of Poles: 3

• Voltage Rating: 600 VAC

• Interrupting Capacity:
  • 22 kAIC at 600V
  • 35 kAIC at 480V
• Trip Unit: Thermal Magnetic

• Temperature Rating: 40°C Standard

• Connection Type: Line and Load Side Lugs Included

• Lug Type: TA1FD350A

• Wire Range:
  • Copper: 6 AWG–350 kcmil
  • Aluminum: 4 AWG–350 kcmil
• Standards: UL 489 / IEC 60947-2

• Dimensions: 4.5 in W x 9.5 in H x 4 in D

• Weight: 0.899 lb

• UPC: 783643211971


Material Compliance and Certifications

The Siemens FD63T200 molded case circuit breaker is designed to meet recognized electrical safety and performance standards, including UL 489 and IEC 60947-2 requirements. These certifications help verify that the breaker has been evaluated for applications requiring dependable overcurrent protection.

Where It Works Best

• Commercial electrical distribution systems
• Industrial facilities and manufacturing environments
• Three-phase 600V power applications
• Equipment feeder protection
• Electrical panels and distribution assemblies
• Siemens FD frame breaker replacement projects
• Applications requiring 200 amp circuit protection
• Systems using copper or aluminum conductors
• Electrical maintenance and upgrade projects
