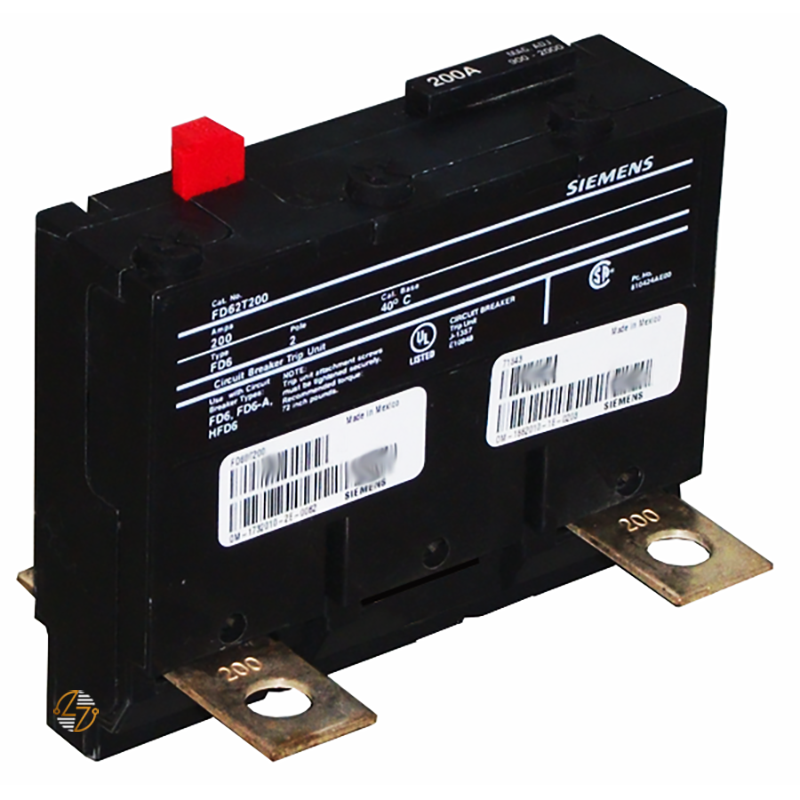

The Siemens FD62T200 is a 200 Amp thermal-magnetic trip unit designed for your compatible FD-frame molded case circuit breakers. The trip unit controls how the breaker responds during overload and short-circuit conditions, making it an important component when servicing or rebuilding an existing breaker assembly.

This Siemens FD-frame trip unit combines thermal overload protection with magnetic short-circuit protection. It is rated for 600 VAC and is used with breaker configurations rated for 22 kAIC at 600V and 35 kAIC at 480V.

The FD62T200 is designed for FD-frame applications and supports breaker setups with line- and load-side lug connections. It accommodates larger conductors, including 6 AWG to 350 kcmil copper wire and 4 AWG to 350 kcmil aluminum wire.

Key Features and Benefits

• Siemens FD-frame thermal-magnetic trip unit
• Catalog Number: FD62T200
• 200 Amp rating
• Two-pole configuration
• Provides overload and short-circuit protection
• Rated for 600 VAC
• Designed for compatible FD-frame molded case circuit breakers
• Meets UL 489 and IEC 60947-2 standards


Technical Specifications

• Manufacturer: Siemens

• Catalog Number: FD62T200

• Product Type: Thermal-Magnetic Trip Unit

• Frame Compatibility: FD

• Amperage Rating: 200 Amps

• Number of Poles: 2

• Trip Type: Thermal-Magnetic

• Voltage Rating: 600 VAC

• Interrupting Rating:
  • 22 kAIC at 600 VAC
  • 35 kAIC at 480 VAC
• Terminal Configuration: Line and Load Side Lug Applications

• Wire Range:
  • Copper: 6 AWG – 350 kcmil
  • Aluminum: 4 AWG – 350 kcmil
• Dimensions: 4.5 in. W × 9.5 in. H × 4 in. D

• Weight: Approximately 1.049 lbs

• UPC: 783643211629


Material Compliance and Certifications

The Siemens FD62T200 is designed to meet UL 489 and IEC 60947-2 standards for molded case circuit breaker applications. Before installation, confirm that the trip unit matches the FD-frame breaker and the required amp, voltage, and protection ratings.

Where It Works Best

The Siemens FD62T200 is commonly used in commercial buildings, industrial facilities, and electrical distribution equipment using compatible FD-frame molded case circuit breakers.
