FD62T080 - 80Amp Trip Unit

FD62T080 - 80Amp Trip Unit

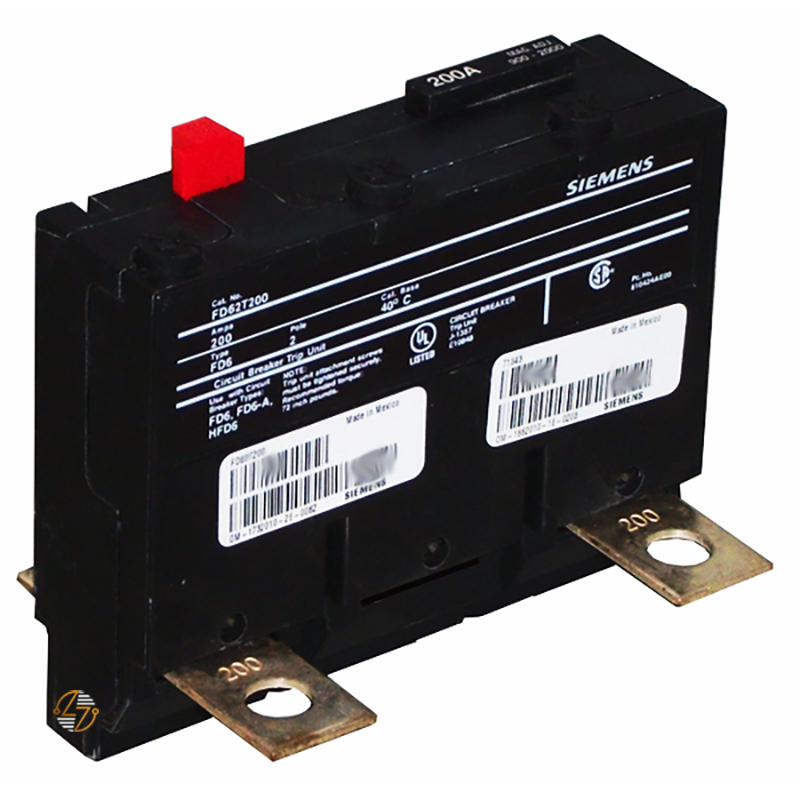

The Siemens FD62T080 is a thermal-magnetic trip unit designed to provide reliable protection in low-voltage molded case circuit breakers. When paired with an appropriate FD frame, this trip unit ensures high performance, safety, and precise protection against overload and short-circuit conditions in a variety of electrical applications. This is only a trip unit, it needs a compatible frame to function as a circuit breaker.

Key Features and Benefits

• Thermal-Magnetic Protection: The thermal-magnetic trip unit offers optimal protection against both overloads (thermal) and short circuits (magnetic), ensuring the safety and reliability of your electrical systems.
• High Interrupting Rating: Capable of handling 22kAIC at 600V and 35kAIC at 480V, making it suitable for various applications requiring high fault protection.
• Compatibility: Designed for use with FD frame circuit breakers, providing flexibility in configuration and ensuring a reliable solution for various installations.
• Simple and Efficient Integration: This trip unit integrates seamlessly with the FD frame, making it a versatile choice for a range of electrical systems.

Technical Specifications

• Amperage Rating: 80A
• Trip Unit Type: Thermal-Magnetic
• Interrupting Rating: 22kAIC at 600V, 35kAIC at 480V
• Dimensions: Designed to fit standard FD frame (dimensions will vary based on frame configuration)
• Wire Range (when used with compatible frame): 6AWG - 350KCM (CU), 4AWG - 350KCM (AL)
• Weight: 1.080 lb (trip unit only)

Material Compliance and Certifications

• UL 489 Compliance: Meets the Underwriters Laboratories standards for circuit breakers, ensuring safe and reliable operation.
• IEC 60947-2 Compliance: Conforms to international standards for low-voltage switchgear and controlgear.
• RoHS Compliance: Free from hazardous substances, meeting environmental and material safety standards.
• WEEE Compliance: Adheres to the Waste Electrical and Electronic Equipment directive for proper recycling and disposal.

Suitability

• The Siemens FD62T080 thermal-magnetic trip unit is designed to be used with an FD frame to create a fully functional circuit breaker. It is ideal for use in commercial and industrial electrical distribution systems, offering reliable overload and short-circuit protection. When paired with an FD frame, it ensures the safety and longevity of electrical infrastructure in a wide range of environments, from manufacturing facilities to office buildings.
