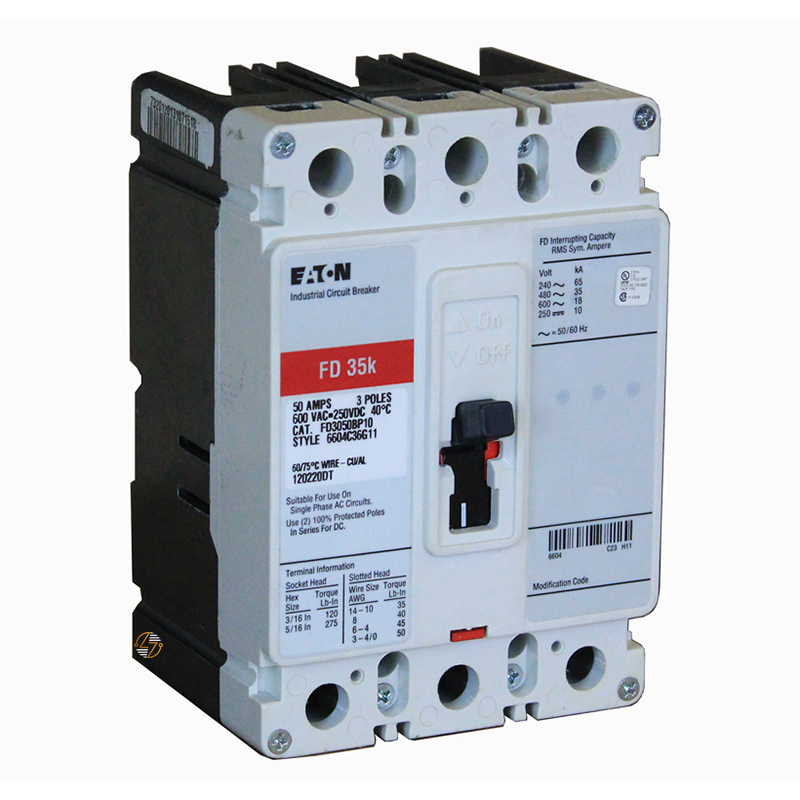

FD3025 - 25Amp Circuit Breaker

FD3025 - 25Amp Circuit Breaker

Anyone who has worked inside switchgear knows that replacing a circuit breaker isn't just about matching the amperage. The frame size, trip unit, terminal configuration, voltage rating, and interrupting capacity all need to line up with the existing system to maintain the protection the equipment was originally designed around. Taking the time to verify every specification before installation can prevent unnecessary delays and help keep your electrical systems operating as expected.

Key Features and Benefits

• Eaton Series C complete molded case circuit breaker
• Catalog Number: FD3025
• 25 Amp continuous current rating
• Three-pole configuration
• F-frame construction
• T186 thermal magnetic trip unit
• Rated for 600 VAC and 250 VDC applications
• Load-side terminal configuration
• Interrupting ratings:
  • 65 kAIC at 240 VAC
  • 35 kAIC at 480 VAC
• Form, fit, and function replacement for compatible Eaton Series C equipment


Technical Specifications

• Manufacturer: Eaton

• Catalog Number: FD3025

• Series: Series C

• Product Type: Molded Case Circuit Breaker

• Circuit Breaker Type: FD

• Frame: F

• Frame Type: Complete Breaker

• Amperage Rating: 25 Amps

• Number of Poles: 3

• Trip Unit: T186 Thermal Magnetic

• Voltage Rating: 600 VAC / 250 VDC

• Frequency: 50/60 Hz

• Interrupting Rating:
  • 65 kAIC at 240 VAC
  • 35 kAIC at 480 VAC
• Terminals: Load Side

• Dimensions: 6 in. H × 4.13 in. W × 3.38 in. D

• Weight: 4.35 lbs


Material Compliance and Certifications

The Eaton FD3025 is UL Listed and manufactured to published specifications for Series C molded case circuit breakers.

Where It Works Best

The FD3025 is commonly found in manufacturing facilities, commercial buildings, schools, healthcare facilities, warehouses, municipal buildings, and industrial plants using compatible Eaton Series C F-frame equipment.
