FD3020 - 20Amp Circuit Breaker

FD3020 - 20Amp Circuit Breaker

Finding the right replacement for your breaker often comes down to the details. Two breakers may look nearly identical on the outside, yet have different interrupting ratings, trip units, or voltage capacities that make one suitable and the other a poor fit. That's why experienced electricians take a few extra minutes to verify every specification before installing a replacement.

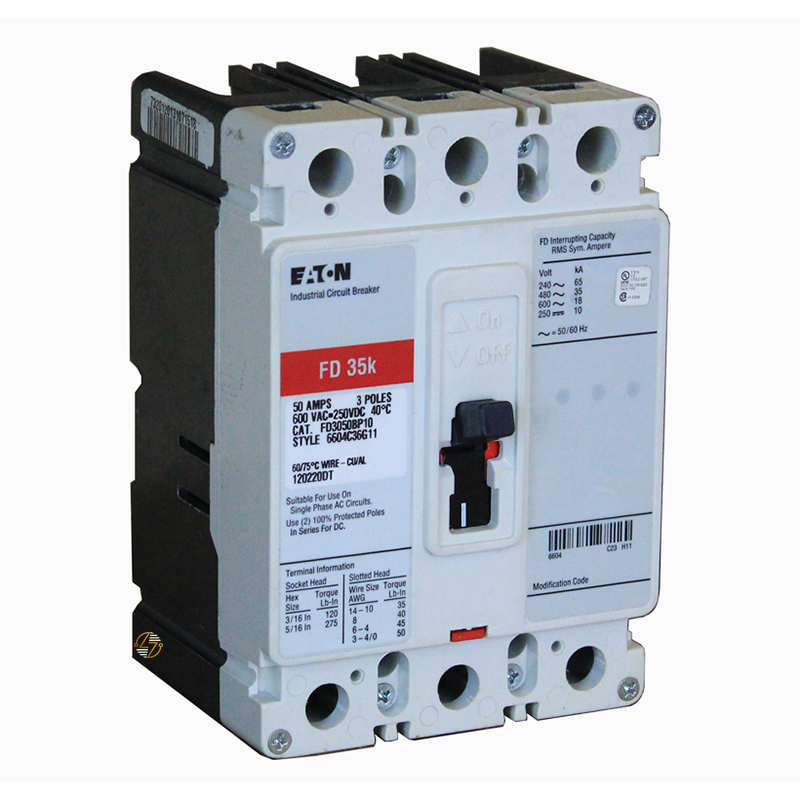

The Eaton FD3020 is a 20 Amp, three-pole molded case circuit breaker built for applications that require the electrical characteristics of an Eaton Series C F-frame breaker. Rated for 600 VAC and 250 VDC, this breaker is commonly found in commercial and industrial distribution systems where your dependable overcurrent protection is part of everyday operation.

Key Features and Benefits

• Eaton Series C complete molded case circuit breaker
• 20 Amp continuous current rating
• Three-pole configuration
• F-frame construction
• T186 thermal magnetic trip unit
• Rated for 600 VAC and 250 VDC
• Interrupting ratings of 65 kAIC at 240 VAC and 35 kAIC at 480 VAC
• Load-side terminal configuration
• Helps restore original circuit protection in compatible Eaton Series C equipment
• Suitable for preventive maintenance programs and spare parts inventory
• Built to last in demanding commercial and industrial environments


Technical Specifications

• Manufacturer: Eaton

• Catalog Number: FD3020

• Series: Series C

• Product Type: Molded Case Circuit Breaker

• Breaker Type: FD

• Frame: F

• Frame Type: Complete Breaker

• Amperage Rating: 20 Amps

• Number of Poles: 3

• Trip Unit: T186 Thermal Magnetic

• Voltage Rating: 600 VAC / 250 VDC

• Frequency: 50/60 Hz

• Interrupting Rating:65 kAIC at 240 VAC
  • 35 kAIC at 480 VAC
• Terminal Configuration: Load Side

• Dimensions: 6 in. H × 4.13 in. W × 3.38 in. D

• Weight: 4.5 lbs


Material Compliance and Certifications

The Eaton FD3020 is UL Listed and manufactured to published specifications for Series C molded case circuit breakers. Before replacing an existing breaker, confirm the frame size, amperage, pole configuration, voltage rating, interrupting capacity, trip unit, and terminal style to ensure compatibility with the equipment.

Where It Works Best

The FD3020 is commonly installed in manufacturing facilities, commercial buildings, schools, healthcare facilities, warehouses, municipal properties, and industrial plants that use compatible Eaton Series C distribution equipment.
