FD1030 - 30Amp Circuit Breaker

FD1030 - 30Amp Circuit Breaker

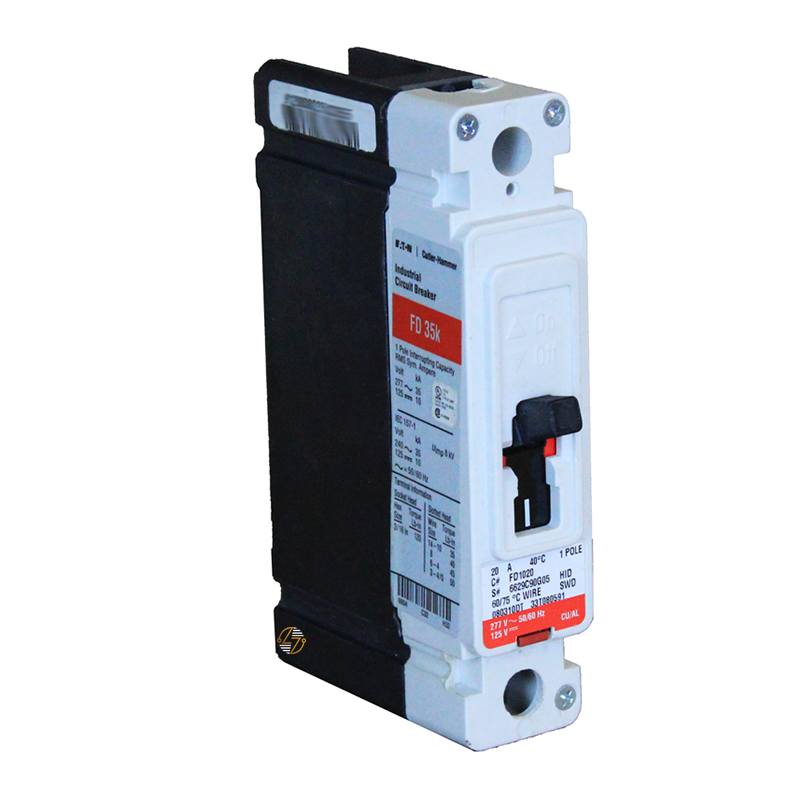

Electrical maintenance rarely happens on a convenient schedule. When your breaker needs to be replaced to restore power or keep preventive maintenance on track, having the correct replacement can make all the difference. The FD1030 Eaton Series C molded case circuit breaker is a 30 Amp, single-pole complete breaker built for use in compatible commercial and industrial electrical systems. Featuring a T186 thermal magnetic trip unit, it responds to overloads and short circuits while matching the published electrical characteristics required for many existing installations.

Key Features and Benefits

• Eaton Series C complete molded case circuit breaker
• 30 Amp current rating
• Single-pole configuration
• F-frame design for compatible applications
• T186 thermal magnetic trip unit for overload and short-circuit protection
• Rated for 347 VAC and 125 VDC electrical systems
• Interrupting capacity:
  • 35 kAIC at 277 VAC
  • 18 kAIC at 347 VAC
• Load-side terminal configuration
• 50/60 Hz frequency rating
• Matches the form, fit, and function of compatible equipment
• A practical solution for maintenance, repairs, and replacement of existing electrical distribution systems
• Built to last for demanding commercial and industrial environments


Technical Specifications

• Catalog Number: FD1030

• UPC: 786679312131

• Series: Series C

• Product Type: Molded Case Circuit Breaker

• Circuit Breaker Type: FD

• Circuit Breaker Frame Type: Complete Breaker

• Frame: F

• Trip Unit: T186 Thermal Magnetic

• Amperage Rating: 30 Amps

• Number of Poles: Single-Pole

• Voltage Rating: 347 VAC, 125 VDC

• Frequency Rating: 50/60 Hz

• Interrupting Ratings:
  • 35 kAIC at 277 VAC
  • 18 kAIC at 347 VAC
• Terminals: Load Side

• Height: 6.00 in.

• Width: 1.38 in.

• Depth: 3.38 in.

• Approximate Shipping Weight: 1.65 lbs.


Material Compliance and Certifications

The FD1030 is UL Listed and manufactured to the published electrical ratings for this catalog number. Before installation, verify that the breaker's frame, amperage, voltage rating, interrupting capacity, pole configuration, and terminal arrangement match the existing equipment. Installation should always be completed in accordance with applicable electrical codes and by qualified personnel.

Where It Works Best

The FD1030 is commonly found in commercial buildings, industrial facilities, schools, healthcare environments, municipal properties, and other locations that utilize Eaton Series C electrical distribution equipment. It's well suited for replacing a breaker that has reached the end of its service life, supporting scheduled maintenance programs, or maintaining spare inventory for critical systems.
