FD1025L - 25Amp Circuit Breaker

FD1025L - 25Amp Circuit Breaker

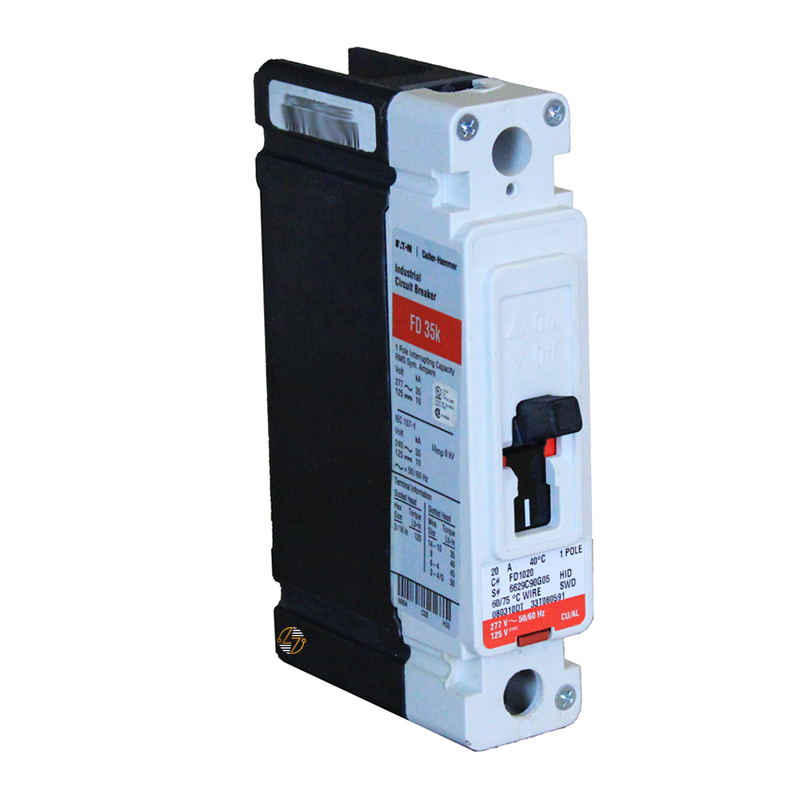

When you're replacing a circuit breaker in an existing panel, finding one that matches the original specifications can save time and help avoid unnecessary modifications. The FD1025L Eaton Series C molded case circuit breaker is a 25 Amp, single-pole breaker built for commercial and industrial electrical systems where maintaining equipment compatibility is a priority. Equipped with a T186 thermal magnetic trip unit, this complete F-frame breaker is designed to respond to both overloads and short circuits while meeting the published electrical ratings for the original application. Whether you're restoring service after a breaker failure or performing scheduled maintenance, using the correct replacement helps keep projects moving and minimizes downtime.

Key Features and Benefits

• Eaton Series C complete molded case circuit breaker
• 25 Amp current rating
• Single-pole configuration
• F-frame construction
• T186 thermal magnetic trip unit for overload and short-circuit protection
• Rated for 347 VAC and 125 VDC applications
• Interrupting capacity:
  • 35 kAIC at 277 VAC
  • 18 kAIC at 347 VAC
• Line and load terminal configuration for compatible installations
• 50/60 Hz frequency rating
• Matches the form, fit, and function of compatible equipment
• Well suited for maintenance, repair, and replacement of existing electrical systems
• Built to last for long-term service in commercial and industrial environments


Technical Specifications

• Catalog Number: FD1025L

• UPC: 786679093313

• Series: Series C

• Product Type: Molded Case Circuit Breaker

• Circuit Breaker Type: FD

• Circuit Breaker Frame Type: Complete Breaker

• Frame: F

• Trip Unit: T186 Thermal Magnetic

• Amperage Rating: 25 Amps

• Number of Poles: Single-Pole

• Voltage Rating: 347 VAC, 125 VDC

• Frequency Rating: 50/60 Hz

• Interrupting Ratings:
  • 35 kAIC at 277 VAC
  • 18 kAIC at 347 VAC
• Terminals: Line and Load

• Height: 6.00 in.

• Width: 1.38 in.

• Depth: 3.38 in.

• Approximate Shipping Weight: 4.5 lbs.


Material Compliance and Certifications

The FD1025L is UL Listed and manufactured to the published electrical ratings for this catalog number. Before installation, verify compatibility with the existing electrical system, including frame size, amperage, voltage rating, interrupting capacity, pole configuration, and terminal arrangement.

Where It Works Best

The FD1025L is commonly used in commercial buildings, manufacturing facilities, educational campuses, healthcare facilities, municipal buildings, and other industrial environments where Eaton Series C equipment is already installed.
