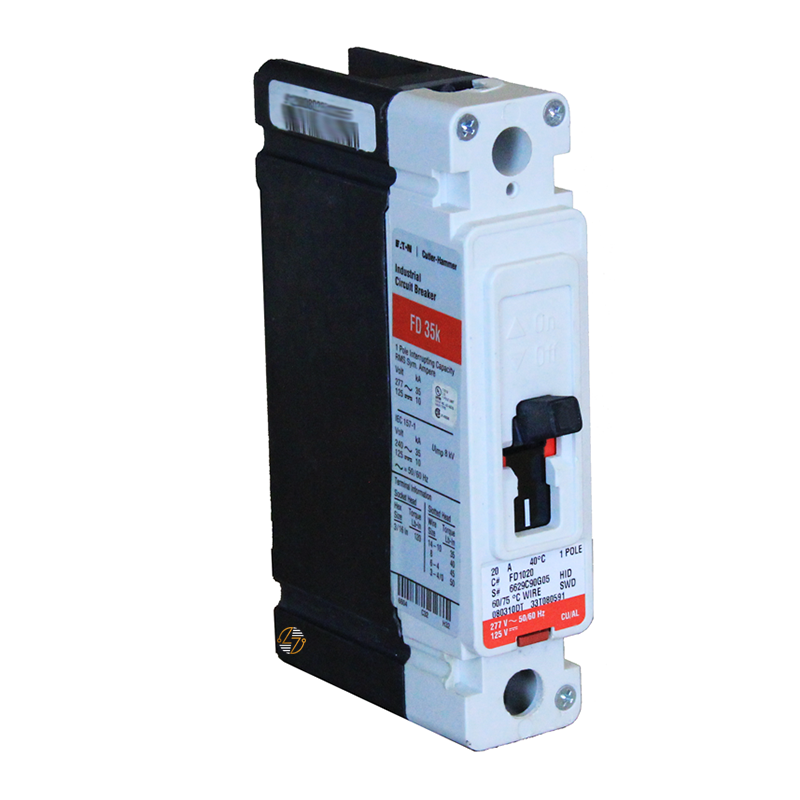

FD1025 - 25Amp Circuit Breaker

FD1025 - 25Amp Circuit Breaker

When your circuit breaker needs to be replaced, getting the right match the first time can save hours of unnecessary troubleshooting. If you're maintaining an existing electrical distribution system, the FD1025 Eaton Series C molded case circuit breaker is built to match the original electrical specifications for compatible equipment. With a 25 Amp rating, single-pole configuration, and T186 thermal magnetic trip unit, it's commonly used anywhere dependable branch circuit protection is needed in commercial and industrial installations.

Key Features and Benefits

• Eaton Series C complete molded case circuit breaker
• 25 Amp current rating
• Single-pole design
• F-frame construction
• T186 thermal magnetic trip unit
• Rated for 347 VAC and 125 VDC applications
• Interrupting capacity of:
  • 35 kAIC at 277 VAC
  • 18 kAIC at 347 VAC
• Load-side terminal configuration
• 50/60 Hz frequency rating
• Matches the original form, fit, and function of compatible equipment
• Well suited for maintenance, repair, and replacement projects in existing electrical systems


Technical Specifications

• Catalog Number: FD1025

• Series: Series C

• Product Type: Molded Case Circuit Breaker

• Circuit Breaker Type: FD

• Frame: F

• Frame Type: Complete Breaker

• Trip Unit: T186 Thermal Magnetic

• Amperage: 25 Amps

• Poles: 1

• Voltage Rating: 347 VAC, 125 VDC

• Frequency: 50/60 Hz

• Interrupting Ratings:35 kAIC at 277 VAC
  • 18 kAIC at 347 VAC
• Terminals: Load Side

• Height: 6.00 in.

• Width: 1.38 in.

• Depth: 3.38 in.

• Approximate Shipping Weight: 2 lbs.


Material Compliance and Certifications

The FD1025 is UL Listed and manufactured to the published electrical ratings for this catalog number. Always verify compatibility with your equipment before installation, including amperage, voltage, interrupting capacity, frame size, pole configuration, and terminal arrangement.

Where It Works Best

The FD1025 is frequently used in commercial buildings, manufacturing facilities, schools, healthcare campuses, municipal properties, and other locations where Eaton Series C equipment remains in service.
