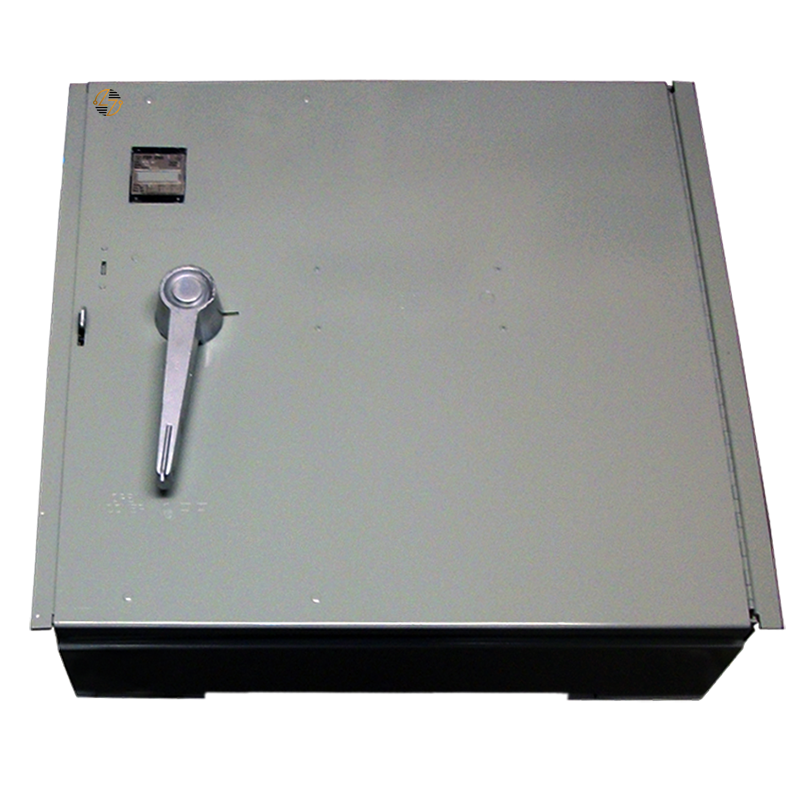

FCSC367 - 800Amp Panelboard Switch

FCSC367 - 800Amp Panelboard Switch

The Challenger FCSC367 Panelboard Switch is built for facilities that need safe, consistent, and high-capacity power distribution. With an 800 amp, 600 Volt A.C. rating, it’s made to handle tough electrical demands in everything from manufacturing plants to large commercial buildings. The bolt-in design makes installation straightforward, while the ability to accept Class RK1 and RK5 fuses gives you solid protection against overloads and short circuits. Despite its compact size, this switch is designed to perform reliably in environments where downtime is not an option.

Key Features and Benefits

• Handles High Loads: Rated for 800 amps at 600 Volts A.C. to manage demanding electrical systems.
• Dependable Protection: Compatible with Class RK1 and RK5 fuses for added safety and overcurrent control.
• Simple to Install: Bolt-in mounting saves time and ensures a secure fit.
• Space-Conscious Design: At just 22.00" W x 15.00" H x 7.00" D, it delivers strength without taking up unnecessary space.
• Versatile Use: Suitable for a wide range of commercial, industrial, and institutional applications.

Technical Specifications

• Frame Type: FCSC

• Voltage Rating: 600 Volts A.C.

• Amperage Capacity: 800 A

• Poles: 3

• Dimensions:
  • Width: 22.00 inches
  • Height: 15.00 inches
  • Depth: 7.00 inches
• Fuse Compatibility: Accepts Class RK1 and RK5 fuses

• Mounting Type: Bolt-in


Material Compliance and Certifications

• UL Listed: Certified for safety and performance assurance.
• RoHS Compliant: Uses environmentally responsible materials.
• ISO 9001 Certified Manufacturing: Ensures consistent build quality.

Where It Works Best

• Industrial operations that require reliable distribution to heavy machinery and production equipment.
• Commercial facilities like office towers, shopping centers, and mixed-use buildings.
• Institutions such as hospitals, schools, and government buildings where continuous operation is essential.
