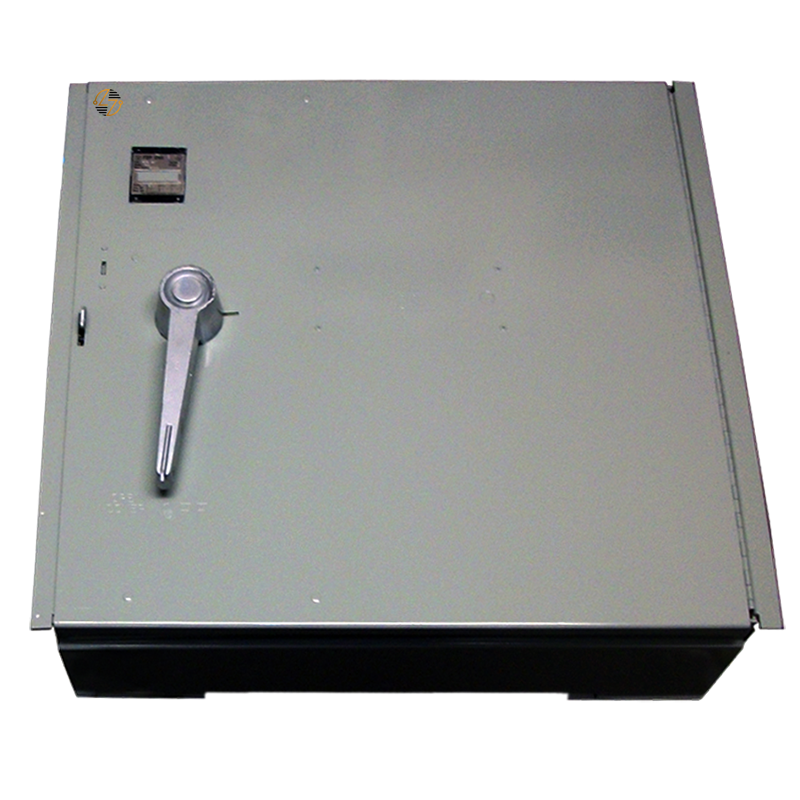

FCSC327 - 800Amp Panelboard Switch

FCSC327 - 800Amp Panelboard Switch

The Challenger FCSC327 is a reliable switch for heavy-duty power systems. It handles 800 amps at 250 Volts A.C. and works with Class RK1 and RK5 fuses to keep circuits safe from overloads and shorts. The bolt-in design makes installation easy—you just secure it, and it’s ready to go. It’s built tough to handle daily use in industrial and commercial spaces.

Key Features and Benefits

• Handles Big Loads: Supports 800 amps for heavy electrical systems.
• Circuit Protection: Works with Class RK1 and RK5 fuses to prevent overloads.
• Easy Installation: Bolt-in design makes setup quick.
• Sturdy Construction: Lasts through everyday use in busy environments.
• Flexible Use: Great for factories, offices, schools, hospitals, and more.

Technical Specifications

• Frame Type: FCSC
• Voltage Rating: 250 Volts A.C.
• Amperage Capacity: 800 A
• Poles: 3
• Dimensions:
  • Width: 22 inches
  • Height: 15 inches
  • Depth: 7 inches
• Fuse Compatibility: Class RK1 and RK5 fuses
• Mounting Type: Bolt-in

Material Compliance and Certifications

• UL Listed: Meets safety standards.
• RoHS Compliant: Made without harmful materials.
• ISO Certified: Produced in ISO 9001-certified facilities.

Where It Works Best

• Industrial Plants: Keeps production equipment running smoothly.
• Commercial Buildings: Powers offices, retail spaces, and warehouses.
• Schools & Hospitals: Provides steady power for important systems.
