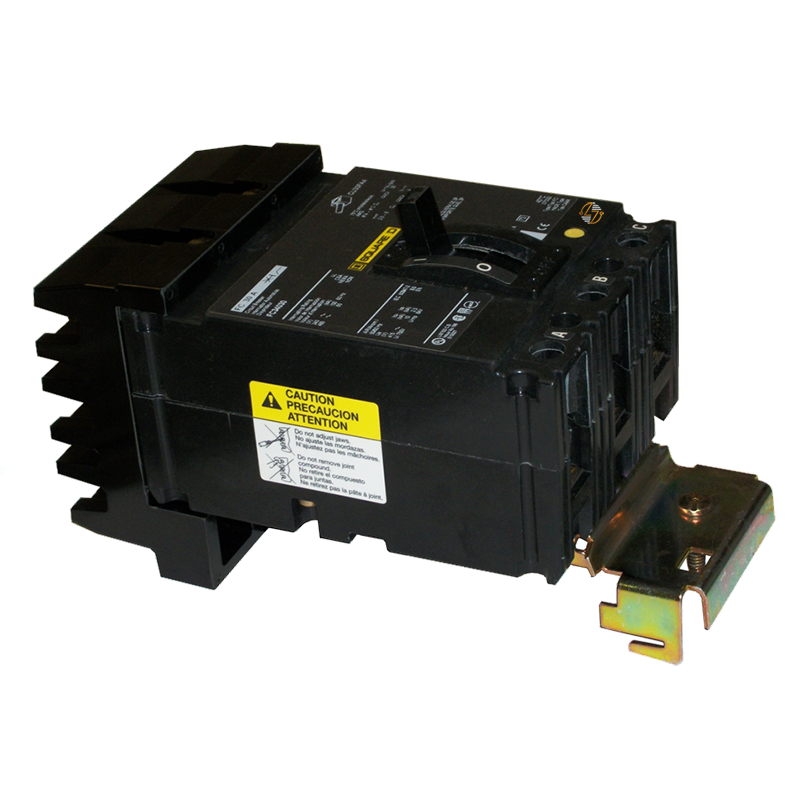

FC34100 - 100 Amp Circuit Breaker

FC34100 - 100 Amp Circuit Breaker

When you're replacing a breaker, matching the electrical and physical specifications is just as important as selecting the correct amperage. Before installing the FC34100, verify the catalog (part) number, breaker type, frame, amperage, number of poles, voltage rating, interrupt rating (A.I.C.), dimensions, and terminal configuration to ensure compatibility with your existing electrical distribution system. Taking these steps helps maintain the original design and supports a proper replacement without unnecessary modifications.

Key Features and Benefits

• 100 Amp continuous current rating
• Three-pole design for three-phase power distribution systems
• Type FC molded case circuit breaker
• Thermal-magnetic trip unit provides protection against overloads and short circuits
• Designed for use in compatible I-Line panelboards
• HACR Type classification for qualifying HVAC applications
• Rated for 60Hz electrical systems
• Suitable for operation in ambient temperatures up to 40°C
• Supports maintenance and replacement of compatible legacy electrical equipment
• Built to last while maintaining the original form, fit, and function


Technical Specifications

• Part Number: FC34100

• Product Type: Molded Case Circuit Breaker

• Breaker Type: FC

• Trip Type: Thermal-Magnetic

• Amperage: 100 Amps

• Poles: 3

• Frequency: 60Hz

• Voltage Ratings:
  • 480VAC
  • 240VAC
• Interrupt Rating (A.I.C.):
  • 65kA @ 480VAC
  • 100kA @ 240VAC
• HACR Rated: Yes

• Ambient Temperature Rating: 40°C

• Application: For compatible I-Line Panelboards

• Dimensions: 4.50" W × 8.75" H × 4.38" D

• Approximate Shipping Weight: 7.50 lbs.


Material Compliance and Certifications

• Before installation, confirm that the catalog number, breaker type, frame, amperage, pole count, voltage rating, interrupt rating (A.I.C.), dimensions, and terminal configuration match the existing breaker being replaced.
• The FC34100 is identified as a HACR Type molded case circuit breaker based on the available product specifications. Installation should be completed in accordance with the National Electrical Code (NEC), applicable local electrical codes, and the equipment manufacturer's installation requirements.
• No additional certifications beyond the provided product specifications are stated.


Where It Works Best

The FC34100 is well suited for maintaining and replacing compatible circuit breakers installed in I-Line panelboards found in commercial buildings, industrial plants, manufacturing facilities, institutional properties, and other demanding electrical distribution systems. It is an ideal choice when a replacement breaker must match the original equipment's electrical ratings and physical dimensions.
