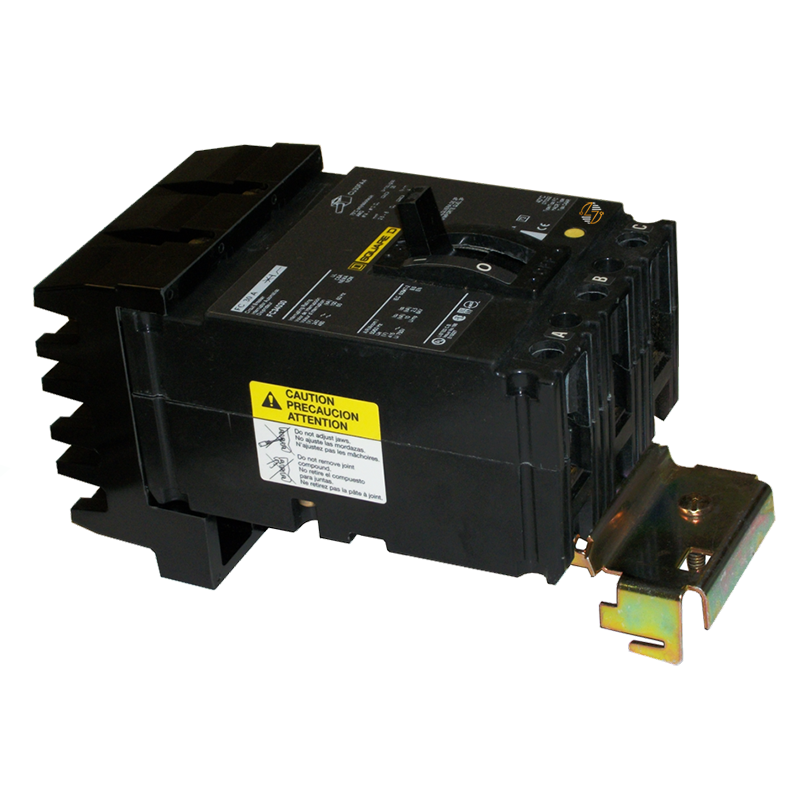

FC34090 - 90 Amp Circuit Breaker

FC34090 - 90 Amp Circuit Breaker

A replacement circuit breaker should match more than just the amperage. Before installing the FC34090, verify the catalog (part) number, breaker type, frame, amperage, number of poles, voltage rating, interrupt rating (A.I.C.), dimensions, and terminal configuration to confirm compatibility with your existing electrical equipment. Taking the time to match these specifications helps maintain the original design of the electrical distribution system and supports a straightforward replacement.

Key Features and Benefits

• 90 Amp continuous current rating
• Three-pole configuration for three-phase electrical systems
• Type FC molded case circuit breaker
• Thermal-magnetic trip unit provides overload and short-circuit protection
• Designed for use in compatible I-Line panelboards
• HACR Type classification
• Rated for 60Hz electrical systems
• Suitable for operation in ambient temperatures up to 40°C
• Supports maintenance and replacement of compatible legacy electrical distribution equipment
• Built to last while maintaining the original form, fit, and function


Technical Specifications

• Part Number: FC34090

• Product Type: Molded Case Circuit Breaker

• Breaker Type: FC

• Trip Type: Thermal-Magnetic

• Amperage: 90 Amps

• Poles: 3

• Frequency: 60Hz

• Voltage Ratings:
  • 480VAC
  • 240VAC
• Interrupt Rating (A.I.C.):
  • 65kA @ 480VAC
  • 100kA @ 240VAC
• HACR Rated: Yes

• Ambient Temperature Rating: 40°C

• Application: For compatible I-Line Panelboards

• Dimensions: 4.50" W × 8.75" H × 4.38" D

• Approximate Shipping Weight: 7.50 lbs.


Material Compliance and Certifications

• Before installation, confirm that the catalog number, breaker type, frame, amperage, pole count, voltage rating, interrupt rating (A.I.C.), dimensions, and terminal configuration match the existing breaker being replaced.
• The FC34090 is identified as a HACR Type molded case circuit breaker according to the available product specifications. Installation should be completed in accordance with the National Electrical Code (NEC), applicable local electrical codes, and the equipment manufacturer's installation requirements.
• No additional certifications beyond the provided product specifications are stated.


Where It Works Best

The FC34090 is well suited for maintaining and replacing compatible circuit breakers installed in I-Line panelboards serving commercial, industrial, institutional, and manufacturing facilities. It is commonly used in existing electrical distribution systems where a replacement breaker with matching electrical ratings and physical dimensions is required.
