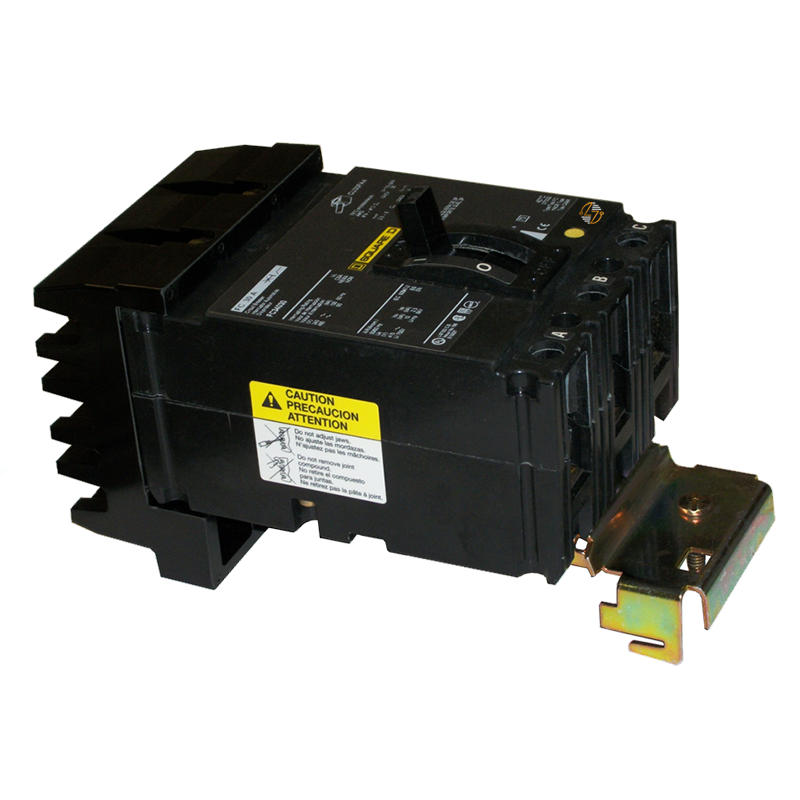

FC34070 - 70 Amp Circuit Breaker

FC34070 - 70 Amp Circuit Breaker

A replacement circuit breaker should match more than just the amp rating. Before installing the FC34070, it's important to compare the catalog (part) number, breaker type, frame, amperage, number of poles, voltage rating, interrupt rating (A.I.C.), dimensions, and terminal configuration with your existing breaker. Taking a few moments to verify these details can help you ensure the replacement is compatible with the original electrical distribution system and fits as intended.

Key Features and Benefits

• 70 Amp continuous current rating
• Three-pole configuration for three-phase electrical systems
• Type FC molded case circuit breaker
• Thermal-magnetic trip mechanism responds to both overloads and short circuits
• Designed for use in compatible I-Line panelboards
• HACR Type classification
• Rated for 60Hz electrical systems
• Suitable for operation in ambient temperatures up to 40°C
• Supports proper replacement of compatible legacy electrical equipment
• Built to last while maintaining the original form, fit, and function


Technical Specifications

• Part Number: FC34070

• Product Type: Molded Case Circuit Breaker

• Breaker Type: FC

• Trip Type: Thermal-Magnetic

• Amperage: 70 Amps

• Poles: 3

• Frequency: 60Hz

• Voltage Ratings:
  • 480VAC
  • 240VAC
• Interrupt Rating (A.I.C.):
  • 65kA @ 480VAC
  • 100kA @ 240VAC
• HACR Rated: Yes

• Ambient Temperature Rating: 40°C

• Application: For compatible I-Line Panelboards

• Dimensions: 4.50" W × 8.75" H × 4.38" D

• Approximate Shipping Weight: 7.50 lbs.


Material Compliance and Certifications

• Before installation, verify the catalog number, breaker type, frame, amperage, pole count, voltage rating, interrupt rating (A.I.C.), dimensions, and terminal configuration to confirm compatibility with the existing equipment.
• The FC34070 is identified as HACR Type according to the available product specifications. Installation should be completed in accordance with the National Electrical Code (NEC), applicable local electrical codes, and the original equipment manufacturer's recommendations.
• No additional certifications beyond the provided product specifications are stated.


Where It Works Best

The FC34070 is well suited for maintenance and replacement projects involving compatible I-Line panelboards installed in commercial buildings, industrial facilities, manufacturing plants, warehouses, and institutional properties. It is intended for applications where preserving the original system design is important.
