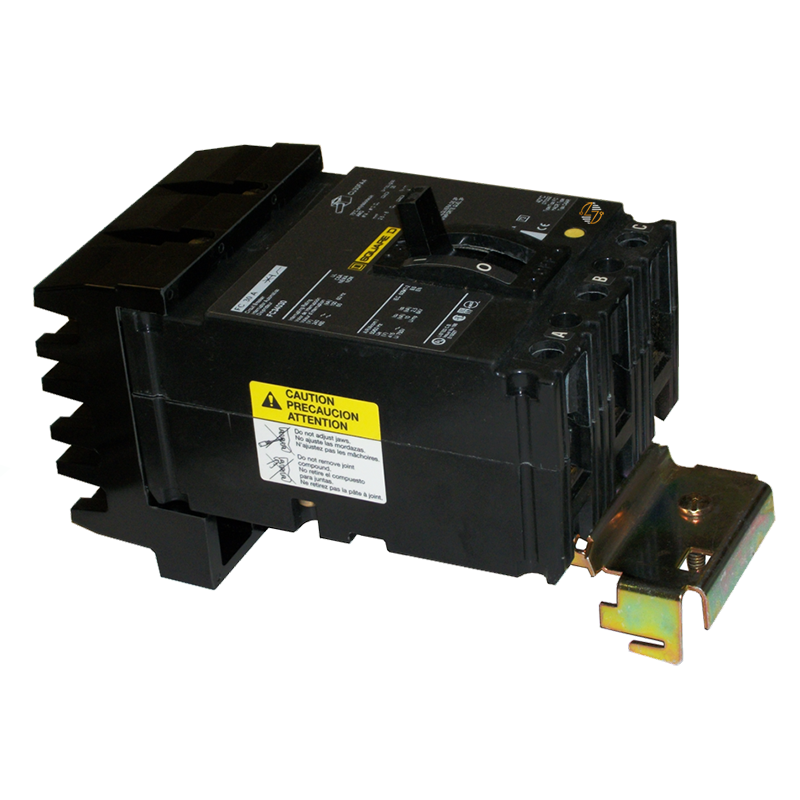

FC34060 - 60 Amp Circuit Breaker

FC34060 - 60 Amp Circuit Breaker

When you're replacing a circuit breaker, matching the amperage is only part of the process. It's a good idea to compare the catalog (part) number, breaker type, frame, amperage, number of poles, voltage rating, interrupt rating (A.I.C.), dimensions, and terminal configuration before installation. Even breakers that appear similar can have important differences, and verifying these specifications helps ensure compatibility with the existing electrical distribution system.

Key Features and Benefits

• 60 Amp continuous current rating
• Three-pole configuration for three-phase electrical systems
• Type FC molded case circuit breaker
• Thermal-magnetic trip mechanism provides protection against overloads and short circuits
• Designed for use in compatible I-Line panelboards
• HACR Type classification
• Rated for 60Hz electrical systems
• Suitable for operation in ambient temperatures up to 40°C
• Intended to maintain the original form, fit, and function in compatible electrical systems
• Built to last


Technical Specifications

• Part Number: FC34060

• Product Type: Molded Case Circuit Breaker

• Breaker Type: FC

• Trip Type: Thermal-Magnetic

• Amperage: 60 Amps

• Poles: 3

• Frequency: 60Hz

• Voltage Ratings:
  • 480VAC
  • 240VAC
• Interrupt Rating (A.I.C.):
  • 65kA @ 480VAC
  • 100kA @ 240VAC
• HACR Rated: Yes

• Ambient Temperature Rating: 40°C

• Application: For compatible I-Line Panelboards

• Dimensions: 4.50" W × 8.75" H × 4.38" D

• Approximate Shipping Weight: 7.50 lbs.


Material Compliance and Certifications

• Before installation, verify the catalog number, breaker type, frame, amperage, pole count, voltage rating, interrupt rating (A.I.C.), dimensions, and terminal configuration against the existing breaker.
• The FC34060 is identified as HACR Type according to the available product specifications. Installation should be completed in accordance with the National Electrical Code (NEC), applicable local electrical codes, and the original equipment manufacturer's recommendations.
• No additional certifications beyond the provided product specifications are stated.


Where It Works Best

The FC34060 is well suited for replacement and maintenance work in I-Line panelboards found in commercial buildings, industrial facilities, manufacturing plants, institutional properties, and other established electrical distribution systems. It is an excellent choice when maintaining the original design of the installation is important.
