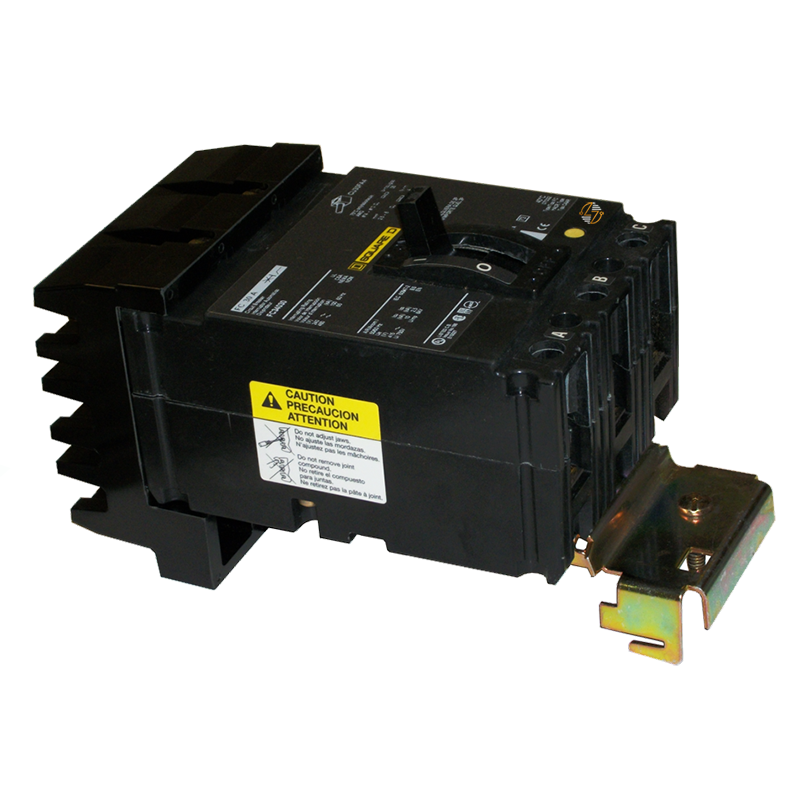

FC34035 - 35 Amp Circuit Breaker

FC34035 - 35 Amp Circuit Breaker

Upgrade your industrial electrical protection with the FC34035 from Schneider Electric’s Square D line. This 35 amp, 3-pole molded-case circuit breaker delivers high performance and dependable protection for demanding installations—from panelboards and busway plug-in units to switchboards and industrial enclosures. Engineered for environments where dependability matters, the FC34035 is designed to stand up to the kinds of overloads and fault currents that put standard breakers to the test.

Key Features and Benefits

• High interrupting capacity: With fault clearing ratings of up to 65 kA at 480 V AC and 100 kA at 240 V AC, this breaker gives you strong protection against short circuits and sudden faults—so you can trust your system stays safe and running.
• Thermal-magnetic dual trip: Combines a thermal element (for gradual overcurrent) with a magnetic element (for instantaneous faults). The result: full-spectrum protection and fewer unexpected shutdowns.
• Durable molded-case construction: Built to last in harsh industrial settings, the case helps shield internal components from dust, vibration and temperature extremes—so you get longer service life and fewer replacements.
• Versatile compatibility: Fits I-Line panelboards and meets HACR (Heating, Air Conditioning and Refrigeration) application requirements, offering flexibility across many types of electrical systems.

Technical Specifications

• Ship Weight: 7.50 lbs

• Dimensions:
  • Width: 4.50″
  • Length: 8.75″
  • Depth: 4.38″
• Poles: 3

• Amperage: 35 A

• Interrupting Rating:
  • 65 kA @ 480 V AC
  • 100 kA @ 240 V AC
• Frame Type: FC

• Frequency: 60 Hz

• Operating Temperature: 40 °C

• Application Type: HACR


Material Compliance and Certifications

• UL Listed: With full adherence to industry safety standards, offering you peace of mind for your installation’s compliance.
• RoHS-Compliant: The unit meets contemporary environmental and materials-safety guidelines.


Where It Works Best

• This circuit breaker shines in industrial installations where heavy electrical loads and high fault-current potential demand more than ordinary protection. Think manufacturing plants, HVAC systems, large compressor rooms, plug-in busway systems and panelboards in mission-critical settings. If you need a breaker that delivers both high interrupting capacity and robust durability, the FC34035 is a strong choice. It’s particularly suited when the goal is to minimise downtime, maximise system uptime and keep maintenance overhead low.
