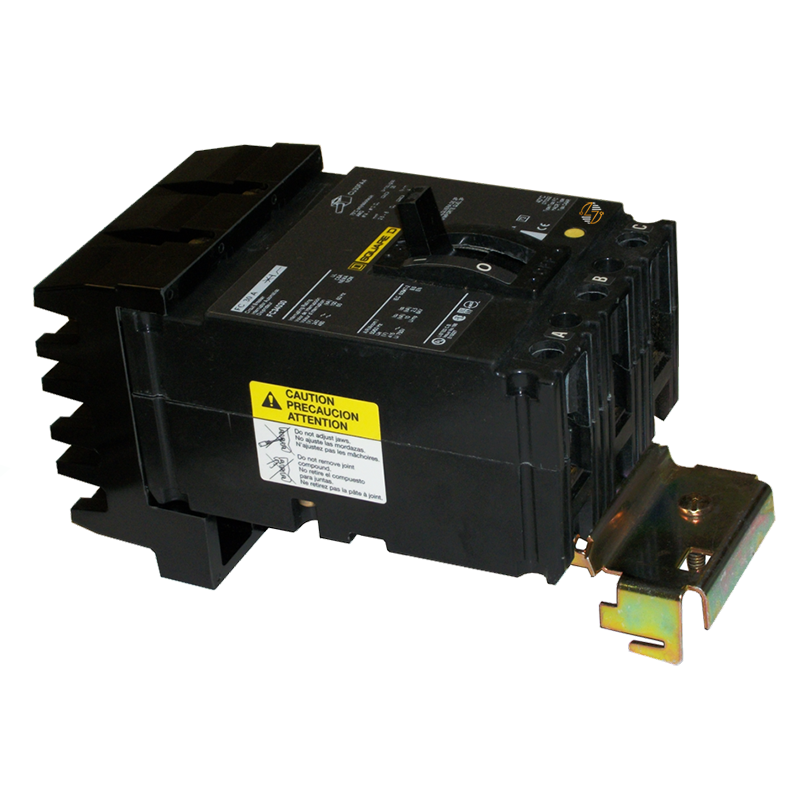

FC34030 - 30 Amp Circuit Breaker

FC34030 - 30 Amp Circuit Breaker

Electrical systems depend on having the right replacement breaker—not just one with the same amp rating. Before installing a molded case circuit breaker, it's important to confirm the catalog (part) number, breaker type, frame, amperage, number of poles, voltage rating, interrupt rating (A.I.C.), dimensions, and terminal configuration all match the original unit. Verifying these specifications helps you maintain proper compatibility and supports safe, reliable operation in the existing electrical distribution system.

Key Features and Benefits

• 30 Amp continuous current rating
• Three-pole configuration for three-phase electrical systems
• Type FC molded case circuit breaker
• Thermal-magnetic trip mechanism helps protect against overloads and short circuits
• Designed for compatible I-Line panelboards
• HACR Type classification
• Rated for 60Hz electrical systems
• Suitable for operation in ambient temperatures up to 40°C
• Helps maintain the original form, fit, and function when replacing a compatible Type FC breaker
• Built to last


Technical Specifications

• Part Number: FC34030

• Product Type: Molded Case Circuit Breaker

• Breaker Type: FC

• Trip Type: Thermal-Magnetic

• Amperage: 30 Amps

• Poles: 3

• Frequency: 60Hz

• Voltage Ratings:
  • 480VAC
  • 240VAC
• Interrupt Rating (A.I.C.):
  • 65kA @ 480VAC
  • 100kA @ 240VAC
• HACR Rated: Yes

• Ambient Temperature Rating: 40°C

• Application: I-Line Panelboards

• Dimensions: 4.50"W × 8.75"H × 4.38"D

• Approximate Shipping Weight: 7.50 lbs.


Material Compliance and Certifications

• When replacing an existing molded case circuit breaker, verify that the catalog number, breaker type, frame, amperage, pole count, voltage rating, interrupt rating (A.I.C.), dimensions, and terminal configuration are identical to the original device.
• The HACR Type classification makes this breaker suitable for applications where that designation is required. Installation should always comply with the National Electrical Code (NEC), applicable local electrical codes, and the original equipment manufacturer's requirements.
• No additional certifications beyond the provided product specifications are stated.


Where It Works Best

The FC34030 is well suited for compatible I-Line panelboards used in commercial buildings, industrial facilities, schools, healthcare facilities, office buildings, and other three-phase power distribution systems. It is a practical choice for maintenance and repair projects where preserving the original breaker's ratings, dimensions, and configuration is essential.
