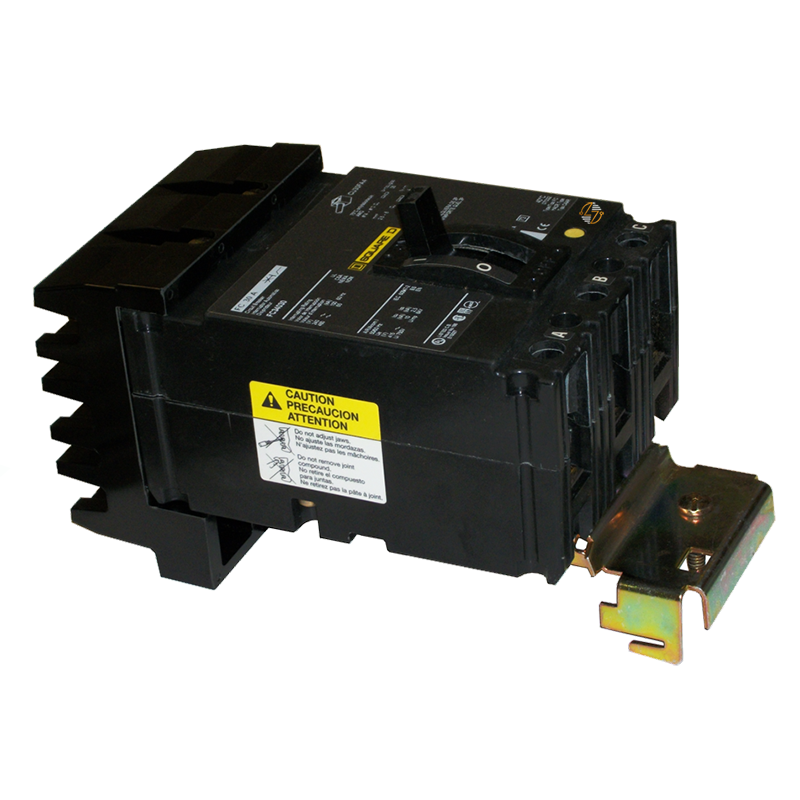

FC34025 - 25 Amp Circuit Breaker

FC34025 - 25 Amp Circuit Breaker

When you're replacing a molded case circuit breaker, matching the amperage is only part of the job. To ensure the replacement fits properly and performs as intended, verify the catalog number, breaker type, frame, amperage, pole count, voltage rating, interrupt rating (A.I.C.), dimensions, and terminal configuration against the existing breaker.

Key Features and Benefits

• 25 Amp continuous current rating
• Three-pole configuration for three-phase electrical distribution
• Type FC molded case circuit breaker
• Thermal-magnetic trip mechanism protects against overloads and short circuits
• Designed for use in compatible I-Line panelboards
• HACR Type classification
• Rated for 60Hz electrical systems
• Suitable for operation in ambient temperatures up to 40°C
• Helps maintain the original form, fit, and function when replacing a compatible Type FC breaker
• Built to last


Technical Specifications

• Part Number: FC34025

• Product Type: Molded Case Circuit Breaker

• Breaker Type: FC

• Trip Type: Thermal-Magnetic

• Amperage: 25 Amps

• Poles: 3

• Frequency: 60Hz

• Voltage Ratings:
  • 480VAC
  • 240VAC
• Interrupt Rating (A.I.C.):
  • 65kA @ 480VAC
  • 100kA @ 240VAC
• HACR Rated: Yes

• Ambient Temperature Rating: 40°C

• Application: I-Line Panelboards

• Dimensions: 4.50"W × 8.75"H × 4.38"D

• Approximate Shipping Weight: 7.50 lbs.


Material Compliance and Certifications

• Before replacing an existing molded case circuit breaker, verify that the catalog number, breaker type, frame, amperage, pole count, voltage rating, interrupt rating (A.I.C.), dimensions, and terminal configuration match the original equipment.
• No additional certifications beyond the provided product specifications are stated.


Where It Works Best

• The FC34025 is well suited for compatible I-Line panelboards found in commercial buildings, industrial facilities, schools, healthcare facilities, office buildings, and other three-phase electrical distribution systems. It is commonly used during maintenance and repair projects where matching the original breaker's ratings, dimensions, and configuration is essential.
