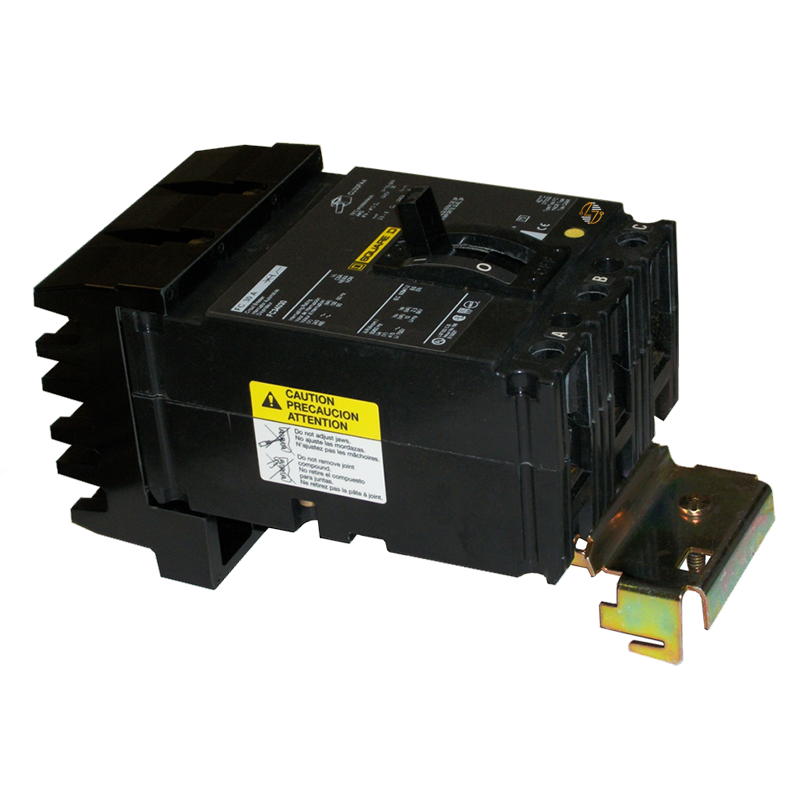

The FC34020 is a 20 Amp, 3-pole Type FC thermal-magnetic molded case circuit breaker made for use in compatible I-Line panelboards. Its thermal-magnetic trip mechanism provides two levels of protection.

Key Features and Benefits

• 20 Amp continuous current rating
• Three-pole configuration for three-phase electrical systems
• Type FC molded case circuit breaker
• Thermal-magnetic trip mechanism responds to overloads and short circuits
• Designed for use in compatible I-Line panelboards
• HACR Type classification
• Rated for 60Hz electrical systems
• Suitable for operation in ambient temperatures up to 40°C
• Intended to match the original breaker's form, fit, and function when specifications are the same
• Built to last


Technical Specifications

• Part Number: FC34020

• Product Type: Molded Case Circuit Breaker

• Breaker Type: FC

• Trip Type: Thermal-Magnetic

• Amperage: 20 Amps

• Poles: 3

• Frequency: 60Hz

• Voltage Ratings:
  • 480VAC
  • 240VAC
• Interrupt Rating (A.I.C.):
  • 65kA @ 480VAC
  • 100kA @ 240VAC
• HACR Rated: Yes

• Ambient Temperature Rating: 40°C

• Application: I-Line Panelboards

• Dimensions: 4.50"W × 8.75"H × 4.38"D

• Approximate Shipping Weight: 7.50 lbs.


Material Compliance and Certifications

• Before replacing an existing breaker, verify that the part number, breaker type, frame, amperage, pole count, voltage rating, interrupt rating (A.I.C.), dimensions, and terminal configuration all match the original equipment. Taking the time to compare these details helps ensure compatibility and allows the replacement breaker to provide the intended form, fit, and function.
• The HACR Type classification makes this breaker suitable for applications where that designation is specified. Installation should always follow the National Electrical Code (NEC), applicable local electrical codes, and the equipment manufacturer's installation requirements.
• No additional certifications beyond the provided product specifications are stated.


Where It Works Best

The FC34020 is commonly installed in I-Line panelboards serving commercial buildings, manufacturing facilities, schools, healthcare facilities, industrial plants, and other three-phase electrical distribution systems. It works well for maintenance and repair projects where maintaining the original breaker's ratings and physical dimensions is important. When the existing specifications match, the FC34020 delivers the form, fit, and function needed to keep compatible electrical equipment operating as intended.
