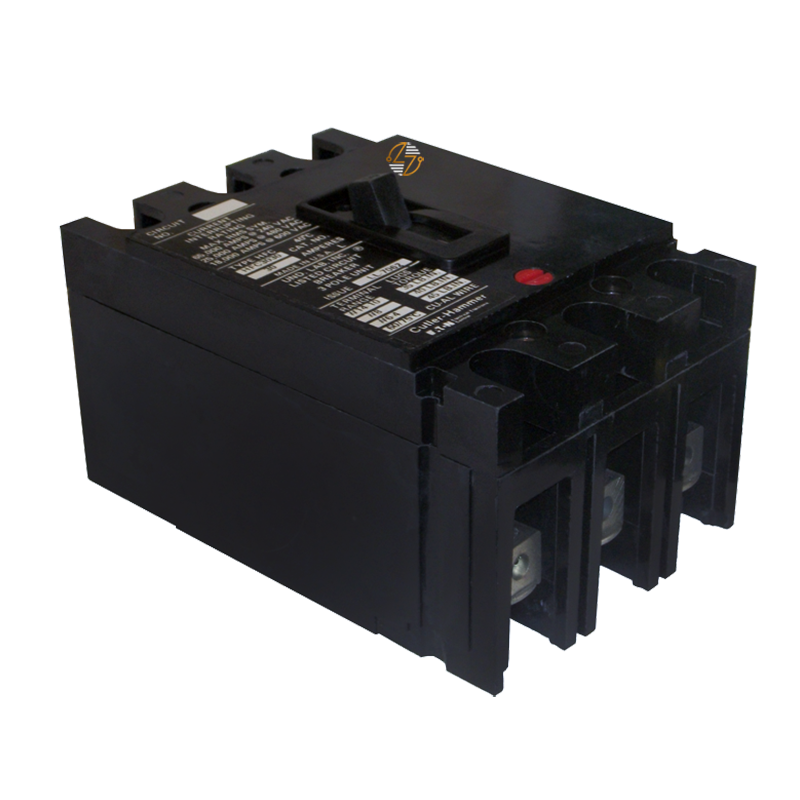

FC3100 - 100Amp Circuit Breaker

FC3100 - 100Amp Circuit Breaker

Replacing your molded case circuit breaker is about more than matching the amperage. For a proper replacement, it's important to verify the original breaker's catalog number, breaker type, frame, amperage, pole count, voltage rating, interrupt rating (AIC), dimensions, and terminal configuration.

The breaker features a factory-installed non-interchangeable trip unit, maintaining its calibrated trip characteristics throughout its service life. Rated for operation in ambient temperatures up to 40°C, the FC3100 is well suited for standard commercial and industrial installations. This model also includes load terminals, simplifying installations where they are required.

Key Features and Benefits

• 100 Amp current rating for compatible electrical distribution systems
• Three-pole configuration for three-phase power applications
• Type FC molded case circuit breaker
• Thermal-magnetic trip mechanism helps protect against overloads and short-circuit faults
• Factory-installed non-interchangeable trip unit
• Rated for operation in ambient temperatures up to 40°C
• Includes load terminals


Technical Specifications

• Part Number: FC3100

• Type: FC

• Product Type: Molded Case Thermal-Magnetic Circuit Breaker

• Amperage: 100 Amps

• Poles: 3

• Voltage Ratings:
  • 600VAC
  • 480VAC
  • 240VAC
• Interrupt Rating (A.I.C.):
  • 14kA @ 600VAC
  • 14kA @ 480VAC
  • 22kA @ 240VAC
• Trip Unit: Non-Interchangeable Thermal-Magnetic

• Ambient Temperature Rating: 40°C

• Load Terminals: Included

• Dimensions: 4.13"W × 6.00"H × 3.38"D

• Approximate Shipping Weight: 5.75 lbs.


Material Compliance and Certifications

• Before installation, verify that the part number, breaker type, frame, amperage, pole configuration, voltage rating, interrupt rating, dimensions, and terminal configuration match the original breaker. Confirming these specifications helps ensure proper compatibility with the existing electrical distribution system and supports safe operation.
• Installation should always be performed in accordance with the National Electrical Code (NEC), applicable local electrical codes, and the equipment manufacturer's installation requirements.
• No additional certifications beyond the provided product specifications are stated.


Where It Works Best

The FC3100 is commonly used in commercial buildings, manufacturing facilities, industrial plants, distribution panels, and other three-phase electrical systems that require a 100 Amp Type FC molded case circuit breaker. It is a practical choice for maintenance and repair projects where matching the original breaker's electrical ratings, physical dimensions, and terminal configuration is essential.
