FC3070 - 70Amp Circuit Breaker

FC3070 - 70Amp Circuit Breaker

When you're replacing a molded case circuit breaker, matching the original specifications is usually more important than simply choosing the correct amp rating. A compatible replacement should match the catalog number, breaker type, frame, amperage, pole configuration, voltage rating, interrupting capacity, dimensions, and terminal configuration. Taking the time to verify each of these details helps ensure the breaker fits properly and performs as intended within the existing electrical system.

Key Features and Benefits

• 70 Amp continuous current rating for compatible branch and feeder circuit applications
• Three-pole configuration designed for three-phase electrical systems
• Type FC molded case circuit breaker
• Thermal-magnetic trip unit helps protect against both overloads and short-circuit faults
• Non-interchangeable trip unit maintains the factory-configured protection settings
• Rated for operation in ambient temperatures up to 40°C
• Includes load terminals for installation
• Intended as a form, fit, and functional replacement when the original breaker specifications match
• Built to last when properly installed and maintained according to applicable electrical codes


Technical Specifications

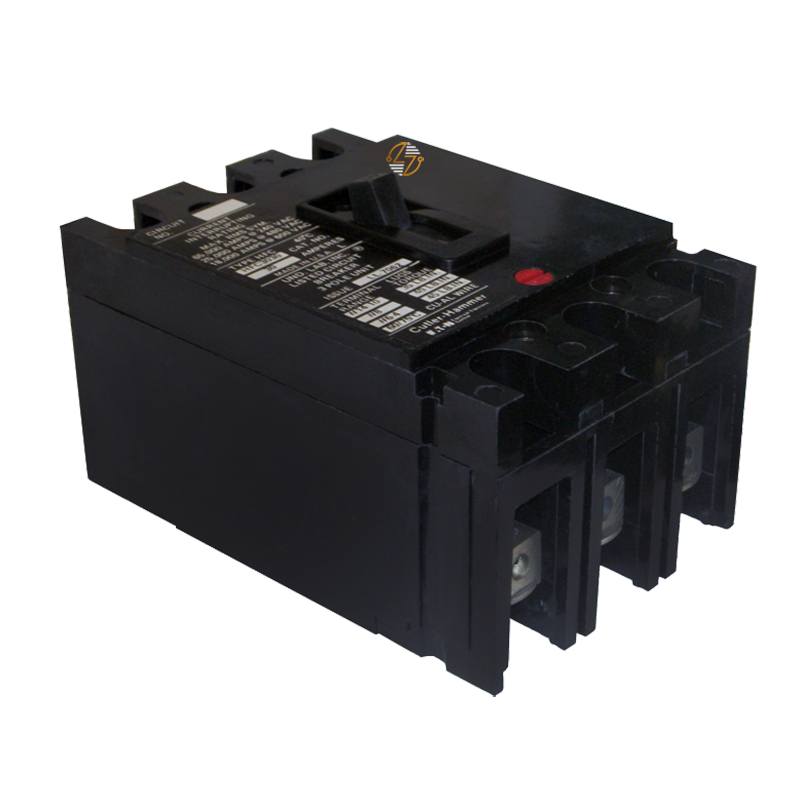

• Part Number: FC3070

• Product Type: Thermal-Magnetic Molded Case Circuit Breaker

• Breaker Type: FC

• Amperage Rating: 70 Amps

• Poles: 3

• Maximum Voltage Rating: 600VAC

• Interrupting Capacity (A.I.C.):
  • 14kA at 600VAC
  • 14kA at 480VAC
  • 22kA at 240VAC
• Trip Unit: Thermal-Magnetic

• Trip Unit Type: Non-Interchangeable

• Ambient Temperature Rating: 40°C

• Load Terminals: Included

• Dimensions: 4.13"W × 6.00"H × 3.38"D

• Width: 4.13 inches

• Height: 6.00 inches

• Depth: 3.38 inches

• Approximate Shipping Weight: 5.75 lbs.


Material Compliance and Certifications

• The FC3070 is intended for use in electrical systems that match its published electrical and mechanical specifications. Before replacing an existing breaker, compare the catalog number, breaker type, frame, amperage, pole configuration, voltage rating, interrupting capacity, terminal arrangement, and physical dimensions to help ensure compatibility with the original installation.
• Installation should be completed by qualified electrical personnel in accordance with the National Electrical Code (NEC), applicable local electrical codes, and the equipment manufacturer's installation requirements.
• No additional certifications beyond the provided product specifications are stated.


Where It Works Best

• Commercial electrical distribution systems
• Industrial facilities
• Manufacturing equipment
• Building service equipment
• Maintenance and repair projects requiring a Type FC replacement circuit breaker
• Three-phase electrical distribution systems requiring a 70 Amp, 3-pole thermal-magnetic molded case circuit breaker
• Existing installations where matching the original voltage rating, interrupting capacity, dimensions, and breaker type is essential for proper form, fit, and function
