FC3060 - 60Amp Circuit Breaker

FC3060 - 60Amp Circuit Breaker

When you're replacing a molded case circuit breaker, the amp rating is only one piece of the puzzle. A proper replacement should match the original breaker's type, frame, pole configuration, voltage rating, interrupting capacity, terminal layout, and physical dimensions.

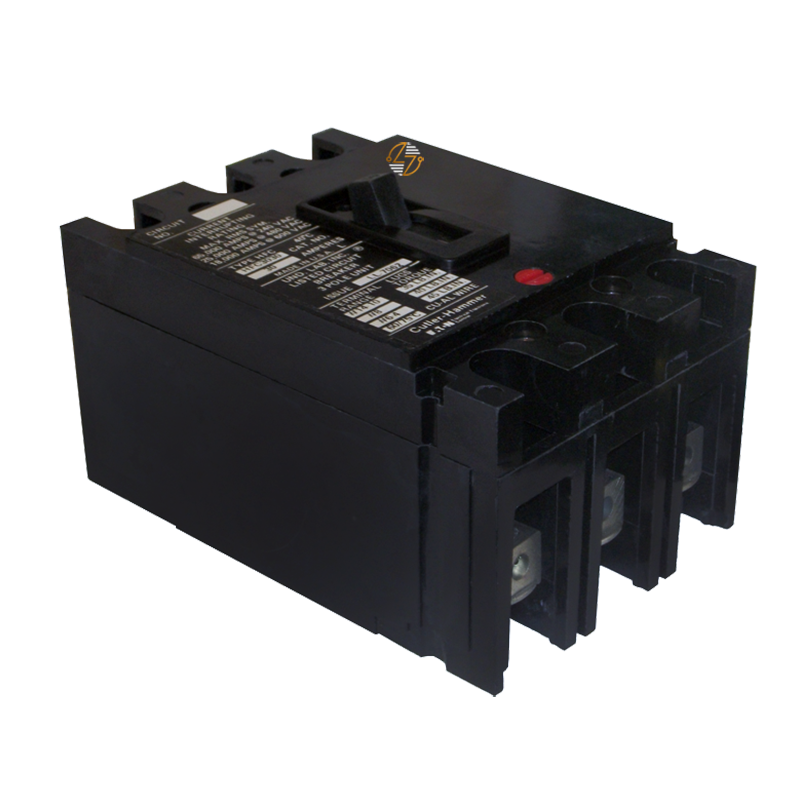

The FC3060 is a 60 Amp, 3-pole Type FC thermal-magnetic circuit breaker built for applications that require the same electrical ratings and physical fit as the original device. Its thermal-magnetic trip mechanism handles two different fault conditions: the thermal element responds to overloads that develop over time, while the magnetic element reacts almost instantly to short circuits.

Key Features and Benefits

• 60 Amp rating for compatible branch and feeder circuit applications
• Three-pole configuration for use in three-phase electrical systems
• Type FC molded case circuit breaker
• Thermal and magnetic trip elements work together to respond to both prolonged overloads and short-circuit faults
• Factory-installed, non-interchangeable trip unit
• Rated for operation in ambient temperatures up to 40°C
• Interrupting ratings of:
  • 14kA at 600VAC
  • 14kA at 480VAC
  • 22kA at 240VAC
• Load terminals are included
• Intended as a form, fit, and functional replacement when the original breaker specifications match
• Built to last when installed and maintained in accordance with applicable electrical codes


Technical Specifications

• Part Number: FC3060

• Product Type: Thermal-Magnetic Circuit Breaker

• Breaker Type: FC

• Amperage Rating: 60 Amps

• Poles: 3

• Voltage Rating: Up to 600VAC

• Interrupting Rating:
  • 14kA at 600VAC
  • 14kA at 480VAC
  • 22kA at 240VAC
• Trip Unit: Thermal-Magnetic

• Trip Unit Type: Non-Interchangeable

• Temperature Rating: 40°C

• Load Terminals: Included

• Dimensions: 4.13"W × 6.00"H × 3.38"D

• Width: 4.13 inches

• Height: 6.00 inches

• Depth: 3.38 inches

• Approximate Ship Weight: 5.75 lbs.


Material Compliance and Certifications

• The FC3060 is intended for electrical systems that match its published ratings and physical characteristics. Before installation, compare the catalog number, breaker type, frame, amperage, pole configuration, voltage rating, interrupting capacity, terminal arrangement, and dimensions with the breaker being replaced to help ensure compatibility.
• Installation should be performed by qualified electrical personnel in accordance with the National Electrical Code (NEC), applicable local electrical codes, and the equipment manufacturer's installation requirements. No additional certifications beyond the provided product specifications are stated.


Where It Works Best

• Commercial electrical distribution systems
• Industrial facilities
• Manufacturing equipment
• Building service equipment
• Maintenance and repair projects requiring a Type FC replacement breaker
• Three-phase electrical distribution applications
• Existing installations requiring a 60 Amp, 3-pole thermal-magnetic molded case circuit breaker with matching voltage ratings, interrupting capacity, and physical dimensions
