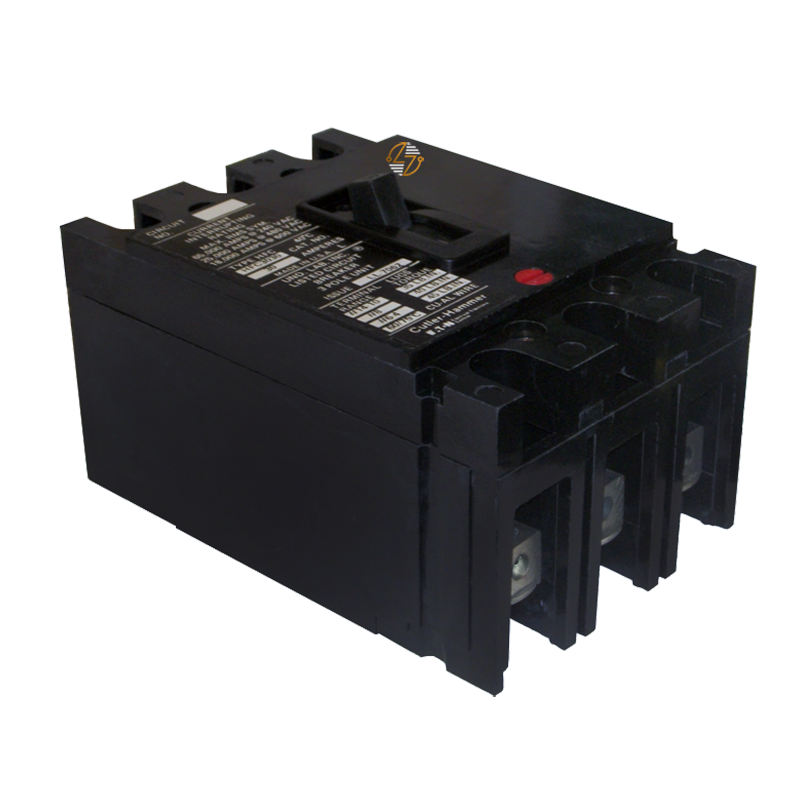

FC3050 - 50Amp Circuit Breaker

FC3050 - 50Amp Circuit Breaker

Replacing a molded case circuit breaker isn't just about matching the amp rating. The FC3050 is a 50 Amp, 3-pole Type FC thermal-magnetic circuit breaker with a factory-installed, non-interchangeable trip unit, so it's important to verify that the replacement matches the original breaker's specifications. Along with the amperage, you'll want to confirm the breaker type, pole configuration, voltage rating, interrupting capacity, and physical dimensions before installation. Those details help ensure the breaker fits properly and continues to provide the protection the electrical system was originally designed for.

Key Features and Benefits

• 50 Amp rating for compatible branch and feeder circuit applications
• Three-pole configuration for use in three-phase electrical systems
• Type FC molded case circuit breaker designed for form, fit, and functional replacement
• Thermal-magnetic trip unit provides protection against both overloads and short circuits
• Factory-installed, non-interchangeable trip unit
• Rated for operation in ambient temperatures up to 40°C
• Interrupting ratings of:
  • 14kA at 600VAC
  • 14kA at 480VAC
  • 22kA at 240VAC
• Load terminals are included for compatible installations
• Designed to match the original breaker's electrical and physical characteristics when replacing existing equipment
• Built to last when installed and maintained in accordance with applicable electrical codes


Technical Specifications

• Part Number: FC3050

• Product Type: Thermal-Magnetic Circuit Breaker

• Breaker Type: FC

• Amperage Rating: 50 Amps

• Poles: 3

• Voltage Rating: Up to 600VAC

• Interrupting Rating:
  • 14kA at 600VAC
  • 14kA at 480VAC
  • 22kA at 240VAC
• Trip Unit: Thermal-Magnetic

• Trip Unit Type: Non-Interchangeable

• Temperature Rating: 40°C

• Load Terminals: Included

• Dimensions: 4.13"W × 6.00"H × 3.38"D

• Width: 4.13 inches

• Height: 6.00 inches

• Depth: 3.38 inches

• Approximate Ship Weight: 5.75 lbs.


Material Compliance and Certifications

• The FC3050 is designed for use in electrical systems that match its published ratings and physical characteristics. Before installation, verify that the breaker type, catalog number, amperage, pole configuration, voltage rating, interrupting capacity, terminal arrangement, and dimensions correspond with the breaker being replaced.
• Installation should be performed by qualified electrical personnel in accordance with the National Electrical Code (NEC), applicable local electrical codes, and the equipment manufacturer's installation requirements. No additional certifications beyond the provided product specifications are stated.


Where It Works Best

• Commercial electrical distribution systems
• Industrial facilities
• Manufacturing equipment
• Building service equipment
• Maintenance and repair projects requiring a Type FC replacement breaker
• Three-phase electrical distribution applications
