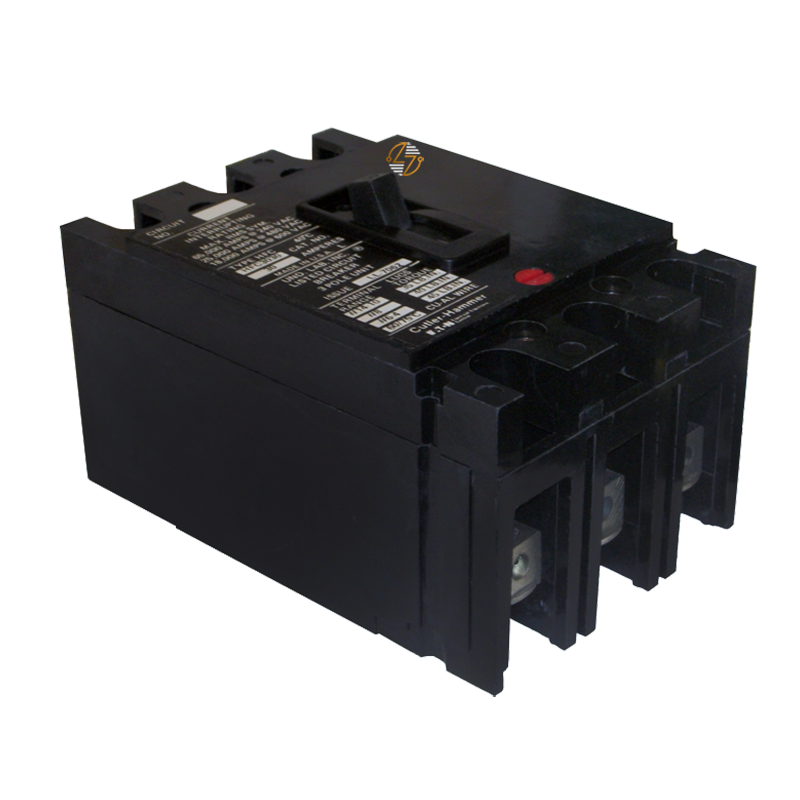

FC3030 - 30Amp Circuit Breaker

FC3030 - 30Amp Circuit Breaker

Finding the right replacement breaker starts with matching the original equipment's specifications—not just the amperage. The FC3030 is a 30 Amp, 3-pole Type FC molded case circuit breaker designed with a factory-installed, non-interchangeable thermal-magnetic trip unit. When you're replacing an existing breaker, confirm the catalog number, breaker type, pole configuration, voltage rating, interrupting capacity, and physical dimensions to ensure proper fit and continued operation within the electrical system. Matching these specifications helps maintain the form, fit, and function of the original installation while supporting safe and reliable circuit protection.

Key Features and Benefits

• 30 Amp thermal-magnetic circuit breaker
• Three-pole configuration for three-phase electrical systems
• Type FC molded case circuit breaker
• Factory-installed non-interchangeable thermal-magnetic trip unit
• Provides protection against overloads and short circuits
• Rated for operation in 40°C ambient conditions
• Includes load terminals
• Designed for form, fit, and functional replacement in compatible equipment
• Built to last for long-term service in properly maintained electrical systems


Technical Specifications

• Part Number: FC3030

• Product Type: Thermal-Magnetic Circuit Breaker

• Breaker Type: FC

• Amperage Rating: 30 Amps

• Poles: 3

• Voltage Rating: Up to 600VAC

• Interrupting Rating:
  • 14kA at 600VAC
  • 14kA at 480VAC
  • 22kA at 240VAC
• Trip Unit: Thermal-Magnetic

• Trip Unit Type: Non-Interchangeable

• Temperature Rating: 40°C

• Load Terminals: Included

• Dimensions: 4.13"W × 6.00"H × 3.38"D

• Width: 4.13 inches

• Height: 6.00 inches

• Depth: 3.38 inches

• Approximate Ship Weight: 5.75 lbs.


Material Compliance and Certifications

• The FC3030 is intended for installation in compatible electrical distribution equipment that matches its electrical ratings and physical configuration. Before replacing an existing breaker, verify that the amperage, voltage rating, interrupting capacity, dimensions, and terminal requirements are appropriate for the application.
• Installation should be performed by qualified electrical personnel in accordance with the National Electrical Code (NEC), applicable local electrical codes, and the equipment manufacturer's installation instructions. No additional certifications beyond the provided product specifications are stated.


Where It Works Best

• Commercial electrical distribution systems
• Industrial facilities
• Manufacturing equipment
• Building service equipment
• Maintenance and repair projects requiring a Type FC replacement breaker
• Three-phase power distribution applications
• Existing installations requiring a 30 Amp, 3-pole thermal-magnetic circuit breaker with matching voltage, interrupting ratings, and physical dimensions
