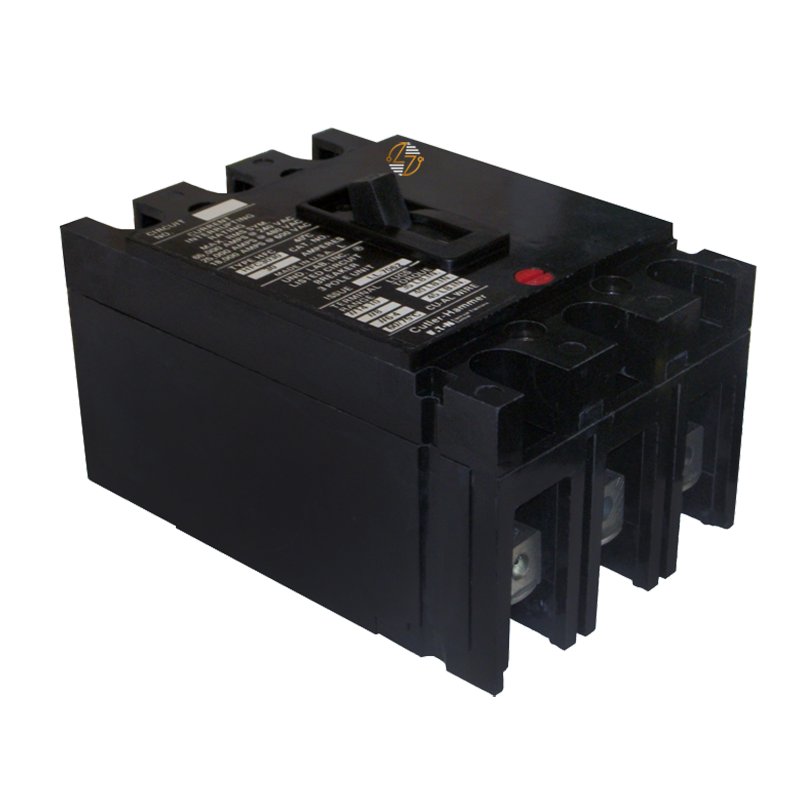

FC3020 - 20Amp Circuit Breaker

FC3020 - 20Amp Circuit Breaker

Replacing an existing breaker isn't just about finding the same amp rating. The FC3020 is a 20 Amp, 3-pole Type FC thermal-magnetic circuit breaker with a factory-installed, non-interchangeable trip unit, so matching the original breaker's specifications is important. Along with the amperage, you'll want to verify the breaker type, pole configuration, voltage rating, interrupting capacity, and physical dimensions before installing a replacement. Those details help ensure the new breaker fits properly and continues to provide the protection the equipment was originally designed for.

Key Features and Benefits

• 20 Amp thermal-magnetic circuit breaker
• Three-pole configuration for multi-phase electrical systems
• Type FC molded case circuit breaker
• Non-interchangeable thermal-magnetic trip unit
• Protects against overloads and short circuits
• Rated for operation in 40°C ambient conditions
• Interrupting ratings of:
  • 14kA at 600VAC
  • 14kA at 480VAC
  • 22kA at 240VAC
• Includes load terminals
• Designed for form, fit, and functional replacement in compatible equipment
• Built to last for long-term service in properly maintained electrical systems


Technical Specifications

• Part Number: FC3020

• Product Type: Thermal-Magnetic Circuit Breaker

• Breaker Type: FC

• Amperage Rating: 20 Amps

• Poles: 3

• Voltage Rating: Up to 600VAC

• Interrupting Rating:
  • 14kA at 600VAC
  • 14kA at 480VAC
  • 22kA at 240VAC
• Trip Unit: Thermal-Magnetic

• Trip Unit Type: Non-Interchangeable

• Temperature Rating: 40°C

• Load Terminals: Included

• Dimensions: 4.13"W × 6.00"H × 3.38"D

• Width: 4.13 inches

• Height: 6.00 inches

• Depth: 3.38 inches

• Approximate Ship Weight: 5.75 lbs.


Material Compliance and Certifications

• The FC3020 is intended for installation in compatible electrical distribution equipment that matches its ratings and physical configuration. Verify that the breaker's amperage, voltage, interrupting capacity, dimensions, and connection requirements match the existing installation before replacing it.
• Installation should be performed by qualified electrical personnel in accordance with the National Electrical Code (NEC), applicable local electrical codes, and the equipment manufacturer's installation instructions. No additional certifications beyond the provided product specifications are stated.


Where It Works Best

• Commercial electrical distribution systems
• Industrial facilities
• Manufacturing equipment
• Building service equipment
• Maintenance and repair projects requiring a Type FC replacement breaker
• Three-phase power distribution applications
• Existing installations requiring a 20 Amp, 3-pole thermal-magnetic circuit breaker with matching voltage and interrupting ratings
