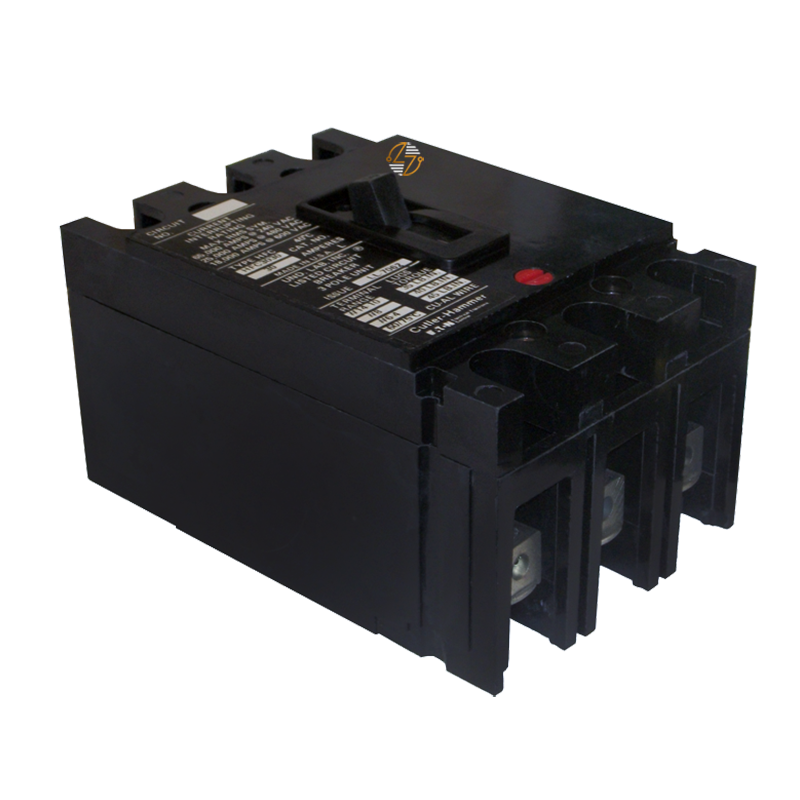

FC3015 - 15Amp Circuit Breaker

FC3015 - 15Amp Circuit Breaker

The FC3015 is a 15 Amp, 3-pole thermal-magnetic circuit breaker designed for electrical distribution applications where the existing breaker specifications need to be matched. This Type FC breaker uses a non-interchangeable thermal-magnetic trip unit and is rated for systems up to 600VAC. With load terminals included, the FC3015 is a practical choice for your maintenance and replacement work where keeping the original equipment configuration is important.

Inside the breaker, the thermal-magnetic trip mechanism provides protection against two common electrical conditions: overloads and short circuits. The thermal portion responds to prolonged overcurrent situations, while the magnetic portion reacts to higher fault currents. Because the trip unit is fixed, the breaker maintains the same protection characteristics specified for the application.

Before installation, confirm the breaker type, pole configuration, amperage, voltage rating, interrupting capacity, and physical dimensions to ensure the replacement matches your existing system.

Key Features and Benefits

• 15 Amp thermal-magnetic circuit breaker
• Three-pole configuration
• Type FC breaker design
• Non-interchangeable trip unit
• Provides overload and short-circuit protection
• Rated for systems up to 600VAC
• Includes load terminals
• 40°C temperature rating
• Designed for replacement and maintenance applications
• Helps maintain existing electrical system configuration


Technical Specifications

• Part Number: FC3015

• Product Type: Thermal-Magnetic Circuit Breaker

• Breaker Type: FC

• Amperage Rating: 15 Amps

• Poles: 3

• Voltage Rating: Up to 600VAC

• 600VAC Interrupting Rating: 14kAIC

• 480VAC Interrupting Rating: 14kAIC

• 240VAC Interrupting Rating: 22kAIC

• Trip Unit: Thermal Magnetic

• Trip Unit Type: Non-interchangeable

• Temperature Rating: 40°C

• Terminals: Load terminals included

• Dimensions: 4.13"W x 6.00"H x 3.38"D
  • Width: 4.13 inches
  • Height: 6.00 inches
  • Depth: 3.38 inches
• Approximate Ship Weight: 5.75 lbs


Material Compliance and Certifications

• The FC3015 is a thermal-magnetic circuit breaker intended for use in compatible electrical distribution equipment. Before installation, verify that the breaker ratings, physical dimensions, and connection requirements match the existing application.
• Installation should be completed by qualified electrical personnel and performed according to applicable electrical codes, safety requirements, and equipment manufacturer instructions.


Where It Works Best

• Commercial electrical distribution equipment
• Industrial power systems
• Equipment maintenance projects
• Replacement applications requiring a Type FC breaker
• Multi-pole circuit protection applications
• Systems operating at 240VAC, 480VAC, or 600VAC
• Installations where maintaining the original breaker specifications is required
