FB2090 - 90Amp Circuit Breaker

FB2090 - 90Amp Circuit Breaker

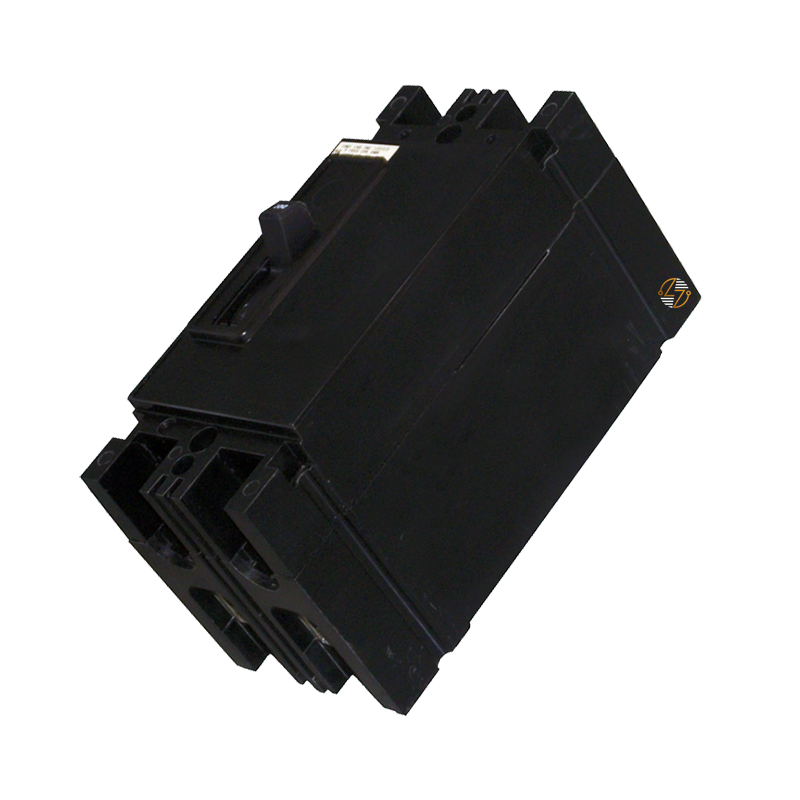

Finding the right replacement breaker means more than matching the amperage—it also requires the correct frame type, interrupting capacity, and physical dimensions. The FB2090 is a 90 Amp, 2-pole FB thermal-magnetic circuit breaker built as a form, fit, and functional replacement for compatible legacy electrical systems. Whether you're replacing a worn breaker during routine maintenance or restoring service after a failure, this unit helps maintain the original configuration of your existing equipment.

The FB2090 uses a thermal-magnetic trip mechanism to provide dependable protection against both overloads and short circuits.

Key Features and Benefits

• 90 Amp circuit breaker for compatible FB electrical systems
• Two-pole design for branch circuit protection
• Thermal-magnetic trip mechanism provides protection from overloads and short circuits
• Non-interchangeable trip unit with fixed protection characteristics
• Includes load terminals for installation and replacement applications
• Suitable for installations with a 40°C ambient temperature rating
• Form, fit, and functional replacement for compatible FB breaker applications
• Built to last for ongoing maintenance of existing commercial, industrial, and institutional electrical systems

Technical Specifications

• Part Number: FB2090

• Type: FB

• Product Type: Thermal-Magnetic Circuit Breaker

• Amperage: 90 Amps

• Poles: 2

• Interrupting Rating: 14kA @ 480VAC; 25kA @ 240VAC

• Trip Unit: Non-Interchangeable

• Ambient Rating: 40°C

• Terminals: Load terminals included

• Dimensions:
  • Height: 6.00 in.
  • Width: 2.75 in.
  • Depth: 3.38 in.
• Dimensions: 2.75 in. W × 6.00 in. H × 3.38 in. D

• Approximate Shipping Weight: 4.00 lbs.


Material Compliance and Certifications

No specific material compliance information or third-party certifications have been provided for the FB2090. Before installation, verify that the breaker's amperage, pole configuration, interrupting rating, dimensions, and terminal arrangement match the requirements of the equipment being serviced. Installation should be completed by a qualified electrician and performed in accordance with the National Electrical Code (NEC), applicable local electrical codes, and the original equipment manufacturer's recommendations. The FB2090 is intended as a form, fit, and functional replacement for compatible applications.

Where It Works Best

The FB2090 is well suited for maintaining compatible legacy electrical distribution systems found in commercial, industrial, and institutional facilities. It is commonly used to protect branch circuits supplying HVAC equipment, motor loads, pumps, lighting systems, manufacturing machinery, and general power distribution.
