FB2015 - 15Amp Circuit Breaker

FB2015 - 15Amp Circuit Breaker

Electrical maintenance often starts with tracking down the exact component that matches the existing installation. When your circuit breaker needs to be replaced, using one with the correct ratings and dimensions helps keep the job straightforward while preserving the original design of the electrical system. That means less time spent making adjustments and more time getting equipment back into service.

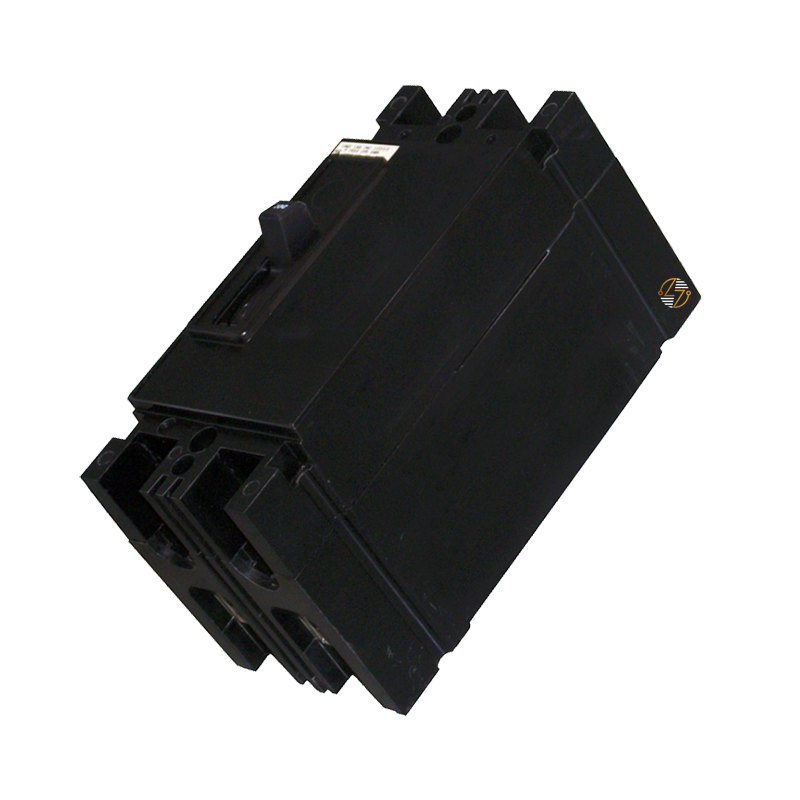

The FB2015 is a 15 Amp, 2-pole molded case circuit breaker designed with a thermal-magnetic, non-interchangeable trip unit that responds to both prolonged overloads and short-circuit conditions.

Key Features and Benefits

• 15 Amp current rating
• Two-pole molded case circuit breaker
• Thermal-magnetic trip mechanism provides protection from overloads and short circuits
• Non-interchangeable trip unit maintains the original factory trip configuration
• Rated for operation in 40°C ambient conditions
• Includes load terminals
• Compact dimensions help support compatibility with existing installations
• Helps preserve the original form, fit, and function during maintenance and equipment repairs
• Built to last for continued service in compatible electrical systems

Technical Specifications

• Part Number: FB2015

• Type: FB

• Current Rating: 15 Amps

• Poles: 2

• Trip Unit: Non-Interchangeable

• Trip Technology: Thermal-Magnetic

• Interrupting Rating:
  • 14kA @ 480VAC
  • 25kA @ 240VAC
• Ambient Rating: 40°C

• Terminals Included: Load Terminals

• Dimensions:
  • Height: 6.00 in.
  • Width: 2.75 in.
  • Depth: 3.38 in.
• Dimensions: 2.75"W × 6.00"H × 3.38"D

• Approximate Shipping Weight: 4.00 lbs.


Material Compliance and Certifications

Certification information was not provided in the available manufacturer specifications. Before installing a replacement breaker, verify the ampere rating, voltage rating, pole configuration, terminal arrangement, mounting method, and physical dimensions to help ensure compatibility with the existing electrical equipment.

Where It Works Best

The FB2015 is suitable for use in compatible switchboards, panelboards, and electrical distribution equipment that require a 15 Amp, 2-pole thermal-magnetic circuit breaker. It is commonly selected during scheduled maintenance, equipment repairs, and replacement projects in manufacturing facilities, office buildings, warehouses, schools, and institutional buildings where maintaining the original equipment configuration helps reduce downtime and supports reliable operation of existing electrical systems.
