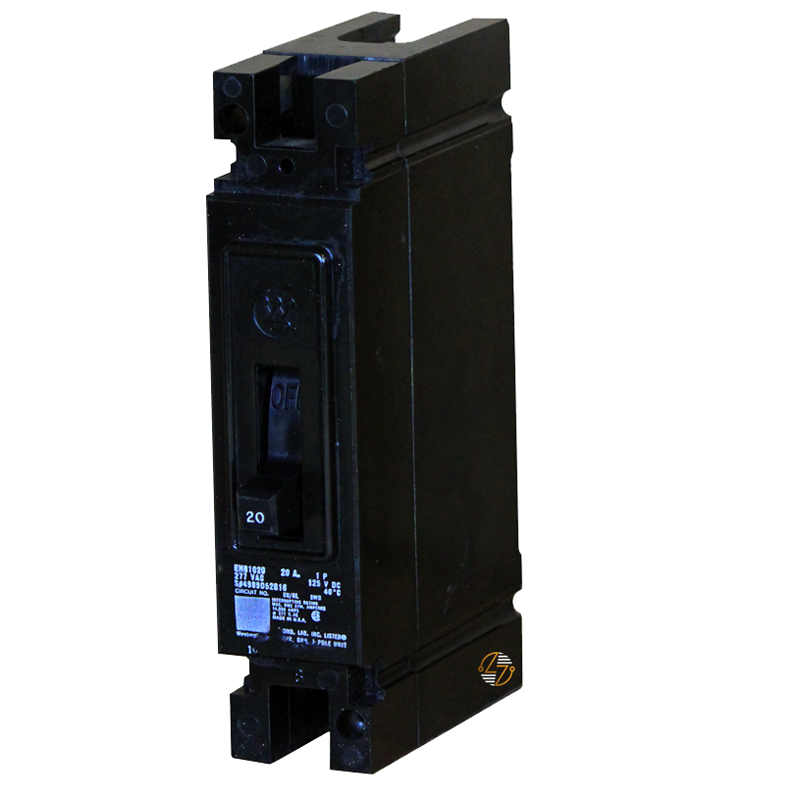

FB1020L - 20Amp Circuit Breaker

FB1020L - 20Amp Circuit Breaker

The FB1020L Thermal-Magnetic Circuit Breaker is an essential solution for maintaining the safety and reliability of your electrical systems. Designed with a 20-ampere capacity, this single-pole circuit breaker provides robust protection against overloads and short circuits, making it ideal for a wide range of maintenance applications. Its compact dimensions of 1.38"W x 6.00"H x 3.38"D ensure easy integration into existing setups without compromising performance. With a high A.I.C. rating of 14k at 277VAC and 25k at 120VAC, the FB1020L is built to handle significant electrical loads, ensuring durability and consistent operation in demanding environments. Featuring a non-interchangeable trip unit and rated for 40°C, this breaker is engineered for reliability, delivering peace of mind in the most critical situations. The inclusion of line and load-side terminals further simplifies installation, making the FB1020L a dependable choice for professionals focused on maintaining electrical systems.

Key Features and Benefits:

• Thermal-Magnetic Protection: Provides dual protection against both overloads and short circuits, ensuring comprehensive safety for your electrical systems.
• High A.I.C. Ratings: Rated at 14k @ 277VAC and 25k @ 120VAC, this breaker is capable of handling high interrupting capacities, making it reliable in various maintenance scenarios.
• Non-Interchangeable Trip Unit: Ensures consistent performance by preventing incorrect installations, enhancing the overall reliability of the circuit breaker.
• Ease of Installation: Includes both line and load-side terminals, simplifying the installation process for maintenance professionals.

Technical Specifications:

• Poles: 1
• Amperes: 20
• A.I.C. Rating: 14k @ 277VAC; 25k @ 120VAC
• Frame Type: FB
• Dimensions: 1.38"W x 6.00"H x 3.38"D
• Temperature Rating: 40°C
• Trip Unit: Non-Interchangeable
• Terminals: Includes line and load-side terminals

Material Compliance and Certifications:

• Compliance: Adheres to industry standards for safety and reliability, ensuring dependable performance in various applications.
• Certifications: Certified for use in a wide range of electrical systems, meeting all necessary regulatory requirements for quality and safety.

Suitability:

• The FB1020L circuit breaker is ideally suited for maintenance applications in residential, commercial, and industrial environments. Its reliable construction and robust design make it a trusted choice for professionals seeking to maintain the integrity and safety of existing electrical systems.
