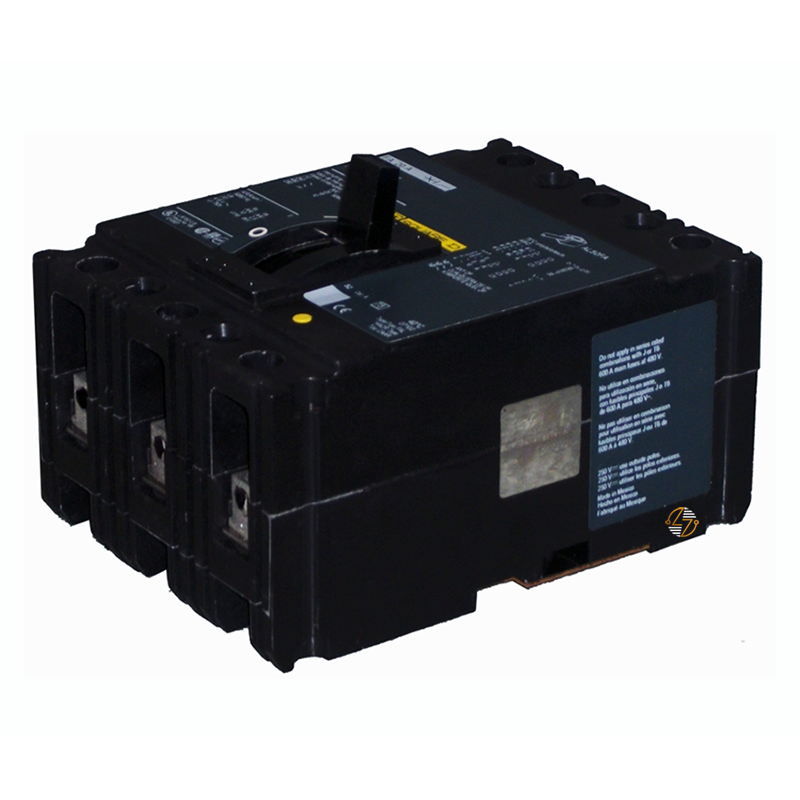

FAP34035 - 35 Amp Circuit Breaker

FAP34035 - 35 Amp Circuit Breaker

Electrical systems in commercial and industrial facilities are often expected to stay in service for decades. When your circuit breaker needs to be replaced, the goal is usually straightforward—install a compatible breaker that matches the original equipment without changing the existing electrical system. The FAP34035 is a 35 Amp, 3-pole thermal-magnetic molded case circuit breaker built for exactly that purpose, helping maintenance teams restore service while preserving the original form, fit, and function of the installation.

The FAP34035 is rated for 480 VAC operation and uses a thermal-magnetic trip unit that responds to both sustained overloads and short-circuit conditions.

Key Features and Benefits

• 35 Amp current rating for compatible power distribution systems
• Three-pole design for three-phase electrical applications
• 480 VAC voltage rating
• Thermal-magnetic trip unit provides overload and short-circuit protection
• Supports maintaining the original form, fit, and function of existing equipment
• Suitable for maintenance, repair, and replacement projects
• Built to last for continued service in commercial and industrial electrical systems

Technical Specifications

• Catalog Number: FAP34035

• Product Type: Molded Case Circuit Breaker

• Current Rating: 35 Amps

• Voltage Rating: 480 VAC

• Number of Poles: 3

• Trip Unit Type: Thermal-Magnetic

• Dimensions:
  • Height: 6.4 in.
  • Width: 4.5 in.
  • Depth: 4.13 in.
• Country of Origin: Mexico


Material Compliance and Certifications

• UL Listed

• CSA Certified


Before installation, verify that the amp rating, voltage rating, pole configuration, and physical dimensions match the equipment being serviced.

Where It Works Best

The FAP34035 is commonly used as a replacement breaker in existing commercial and industrial electrical systems. It is well suited for compatible panelboards, switchboards, distribution equipment, manufacturing facilities, mechanical rooms, and other three-phase applications where maintaining the original equipment configuration is the priority.
