FAL360601021 - 60 Amp Circuit Breaker

FAL360601021 - 60 Amp Circuit Breaker

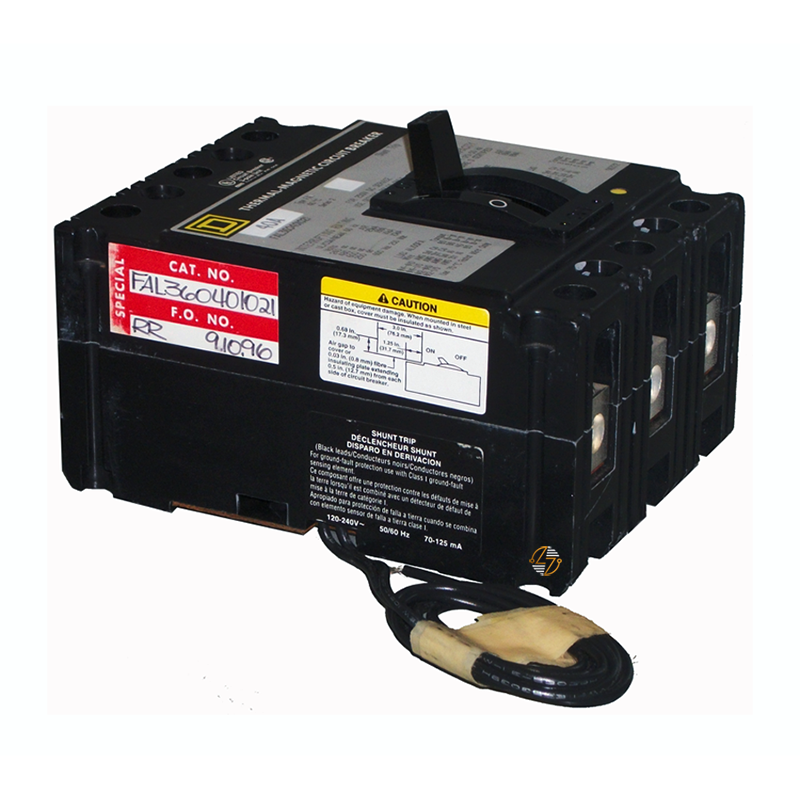

When your existing electrical system uses remote breaker operation, finding a replacement that matches the original setup is usually the most important part of the job. The FAL360601021 is a 60 Amp, 3-pole thermal magnetic circuit breaker with a factory-installed shunt trip built for compatible Type FAL installations. Rated for 600VAC, this breaker is intended for applications where maintaining the existing equipment layout, electrical ratings, and control features matters.

Built to last, the FAL360601021 is a practical replacement choice for commercial and industrial applications where keeping the original electrical design intact is the priority.

Key Features and Benefits

• 60 Amp current rating
• Three-pole thermal magnetic circuit breaker
• Factory-installed shunt trip for remote breaker operation
• Rated for systems up to 600VAC
• Type FAL frame for compatible installations
• Thermal-magnetic trip unit for overload and short-circuit protection
• Unit-mount construction
• Line and load lug connections
• AL100FA terminal identifier
• HACR rated for qualifying heating, air conditioning, and refrigeration equipment
• Maintains original form, fit, and function in compatible electrical systems
• Built to last for commercial and industrial service applications

Technical Specifications

• Catalog Number: FAL360601021

• Product Type: Thermal Magnetic Circuit Breaker with Shunt Trip

• Series / Type: FAL

• Trip Unit Technology: Thermal-Magnetic

• Amperage Rating: 60 Amps

• Voltage Rating: 600VAC

• Number of Poles: 3

• Breaking Capacity Code: A

• Mounting Style: Unit Mount

• Magnetic Hold Current: 800 Amps

• Magnetic Tripping Current: 1450 Amps

• Electrical Connections:
  • Line Lugs
  • Load Lugs
• Terminal Identifier: AL100FA

• Phase Connection: ABC

• Circuit Breaker Application: HACR Rated

• Dimensions: 4.50 in. W × 6.40 in. H × 4.13 in. D

• Approximate Shipping Weight: 5.01 lbs.

• Country of Origin: Mexico

• Warranty: 18 Months


Material Compliance and Certifications

The FAL360601021 is UL Listed and CSA Certified for use in applicable electrical installations. It also carries an HACR rating for approved heating, air conditioning, and refrigeration equipment.

Where It Works Best

The FAL360601021 is commonly used in commercial and industrial facilities where remote breaker operation is part of the original system design. Typical applications include HVAC equipment, motor control systems, panelboards, switchboards, manufacturing equipment, emergency shutdown circuits, and building automation systems.
