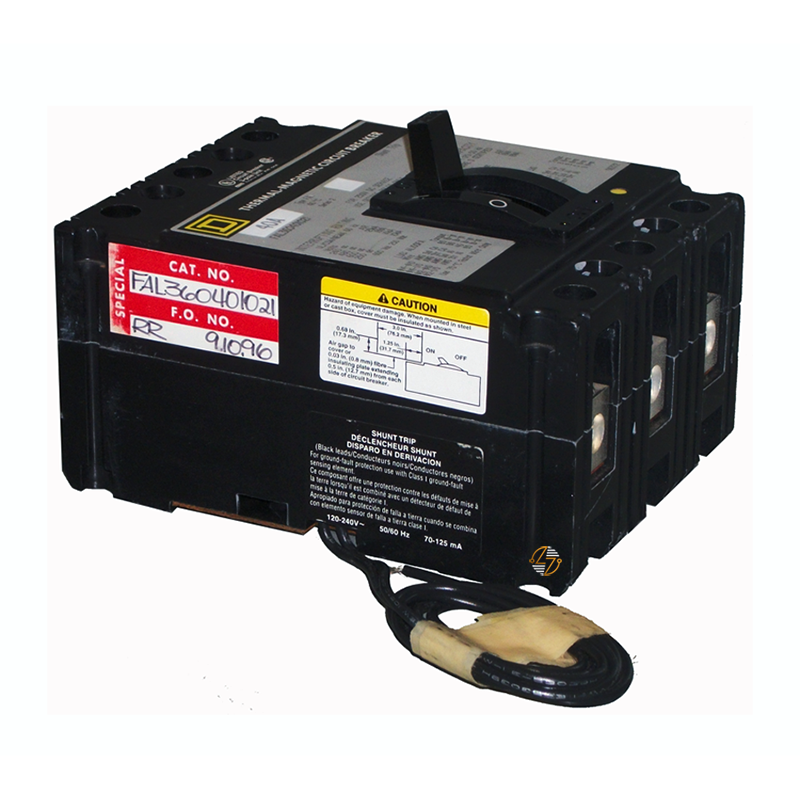

The FAL360501021 is a 50 Amp, 3-pole thermal magnetic circuit breaker with a factory-installed shunt trip for use in compatible Type FAL applications. This breaker is typically selected when an existing installation requires the same electrical ratings and operating features as the original device. Matching the breaker style helps you maintain the existing panel arrangement and avoids unnecessary changes to the surrounding equipment.

The shunt trip feature allows the breaker to be opened remotely through an external control circuit, which is useful in systems that include emergency shutdowns, remote disconnect stations, or building control functions. Along with remote operation, the thermal-magnetic trip unit provides protection for overload conditions and short circuits.

Key Features and Benefits

• 50 Amp current rating
• Three-pole thermal magnetic circuit breaker
• Factory-installed shunt trip for remote breaker operation
• Rated for systems up to 600VAC
• Type FAL frame for compatible installations
• Thermal-magnetic trip unit for overload and short-circuit protection
• Unit-mount construction
• Line and load lug connections
• AL100FA terminal configuration
• HACR rated for approved heating, air conditioning, and refrigeration applications
• Maintains original form, fit, and function in existing equipment
• Built to last for commercial and industrial applications

Technical Specifications

• Catalog Number: FAL360501021

• Product Type: Thermal Magnetic Circuit Breaker with Shunt Trip

• Series / Type: FAL

• Trip Unit Technology: Thermal-Magnetic

• Amperage Rating: 50 Amps

• Voltage Rating: 600VAC

• Number of Poles: 3

• Breaking Capacity Code: A

• Mounting Style: Unit Mount

• Magnetic Hold Current: 400 Amps

• Magnetic Tripping Current: 850 Amps

• Electrical Connections:
  • Line Lugs
  • Load Lugs
• Terminal Identifier: AL100FA

• Phase Connection: ABC

• Circuit Breaker Application: HACR Rated

• Dimensions: 4.50 in. W × 6.40 in. H × 4.13 in. D

• Country of Origin: Mexico

• Warranty: 18 Months


Material Compliance and Certifications

The FAL360501021 is UL Listed and CSA Certified for use in applicable electrical installations. It also carries an HACR rating for approved heating, air conditioning, and refrigeration applications. Before installation, confirm that the breaker rating, voltage, pole configuration, shunt trip requirements, and mounting style match the existing equipment. Installation should follow the National Electrical Code (NEC), local electrical requirements, and manufacturer specifications.

Where It Works Best

The FAL360501021 is commonly found in commercial and industrial facilities where remote breaker operation is part of the original system design. Typical applications include HVAC equipment, motor control systems, panelboards, switchboards, manufacturing equipment, emergency shutdown circuits, and building automation systems. It is a good fit for maintenance and replacement work where keeping the original Type FAL configuration intact is important.
