FAL360401021 - 40 Amp Circuit Breaker

FAL360401021 - 40 Amp Circuit Breaker

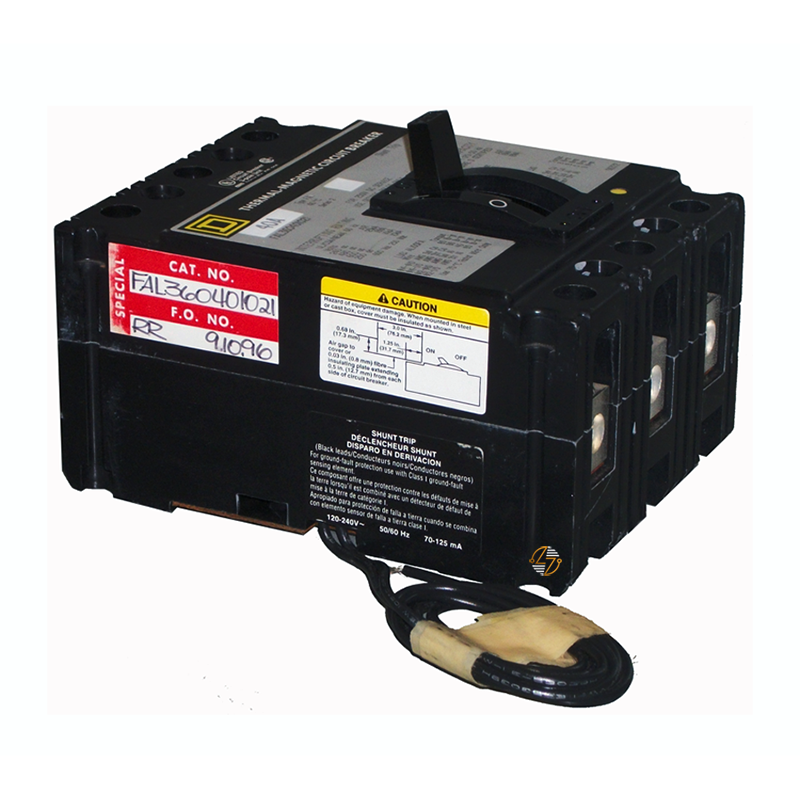

When your existing electrical system depends on remote breaker operation, replacing the device with the correct configuration is important. The FAL360401021 is a 40 Amp, 3-pole thermal magnetic circuit breaker with factory-installed shunt trip designed for compatible Type FAL installations. It is built for 600VAC applications and provides the same form, fit, and function needed when maintaining equipment that was originally configured around this breaker family.

The factory-installed shunt trip allows the breaker to be opened remotely through an external control circuit, which is commonly used in applications involving emergency shutdowns, building controls, and other remote disconnect functions.

Key Features and Benefits

• Catalog Number: FAL360401021
• 40 Amp current rating
• Three-pole thermal magnetic circuit breaker
• Factory-installed shunt trip for remote breaker operation
• Rated for systems up to 600VAC
• Type FAL frame for compatible installations
• Thermal-magnetic trip unit for overload and short-circuit protection
• Unit-mount construction
• Line and load lug connections
• AL100FA terminal identifier
• HACR rated for qualifying heating, air conditioning, and refrigeration applications
• Maintains original form, fit, and function in compatible electrical equipment
• Built to last for commercial and industrial service applications

Technical Specifications

• Catalog Number: FAL360401021

• Product Type: Thermal Magnetic Circuit Breaker with Shunt Trip

• Series / Type: FAL

• Trip Unit Technology: Thermal-Magnetic

• Amperage Rating: 40 Amps

• Voltage Rating: 600VAC

• Number of Poles: 3

• Breaking Capacity Code: A

• Mounting Style: Unit Mount

• Magnetic Hold Current: 400 Amps

• Magnetic Tripping Current: 850 Amps

• Electrical Connections:
  • Line Lugs
  • Load Lugs
• Terminal Identifier: AL100FA

• Phase Connection: ABC

• Circuit Breaker Application: HACR Rated

• Dimensions: 4.50 in. W × 6.40 in. H × 4.13 in. D

• Country of Origin: Mexico

• Warranty: 18 Months


Material Compliance and Certifications

The FAL360401021 is UL Listed and CSA Certified for use in applicable electrical installations. It also carries an HACR rating for approved heating, air conditioning, and refrigeration equipment.

Where It Works Best

The FAL360401021 is commonly used in commercial and industrial facilities where remote breaker operation is part of the original electrical design. Typical applications include HVAC equipment, motor control systems, switchboards, panelboards, manufacturing equipment, emergency shutdown circuits, and building automation systems.
