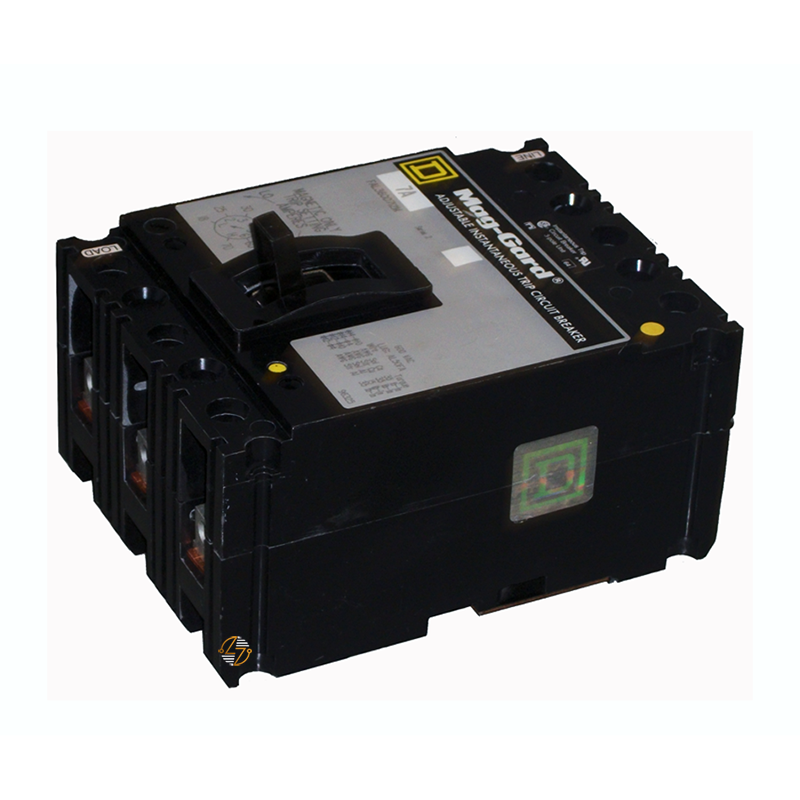

Finding the right replacement motor circuit protector is often about maintaining the original design of the equipment, not changing it. The FAL3603015M is a 30 Amp, 3-pole Type FAL Motor Circuit Protector (MCP) designed for installations that already use the FAL platform. Matching the original form, fit, and function helps you simplify maintenance while keeping existing motor control equipment configured as intended.

Unlike thermal-magnetic circuit breakers, this magnetic-only motor circuit protector is intended to provide short-circuit protection for motor branch circuits and is used together with a separate overload device as part of a coordinated motor protection system.

Key Features and Benefits

• Catalog Number: FAL3603015M
• 30 Amp current rating
• Three-pole configuration
• Type FAL Motor Circuit Protector (MCP)
• Magnetic-only short-circuit protection for motor branch circuits
• Designed for use with a separate motor overload protection device
• Interrupting rating of 25kA at 240VAC
• Interrupting rating of 18kA at 480VAC
• Compatible with equipment designed for Type FAL motor circuit protectors
• Compact dimensions help match existing installations without unnecessary modifications
• Built to last for demanding commercial and industrial applications

Technical Specifications

• Catalog Number: FAL3603015M

• Sub-Category: Motor Circuit Protector (MCP)

• Type: FAL

• Current Rating: 30 Amps

• Number of Poles: 3

• Protection Type: Magnetic-Only

• Interrupting Rating:
  • 25kA @ 240VAC
  • 18kA @ 480VAC
• Dimensions: 4.50 in. W × 6.00 in. H × 3.13 in. D

• Height: 6.00 in.

• Width: 4.50 in.

• Depth: 3.13 in.

• Approximate Shipping Weight: 6.50 lbs.


Material Compliance and Certifications

This motor circuit protector should be installed only in equipment designed for a compatible Type FAL device. Before replacing an existing unit, verify the catalog number, amp rating, pole configuration, interrupting capacity, and application requirements.

Where It Works Best

The FAL3603015M is commonly used in commercial and industrial facilities where motors power everyday operations. Typical applications include motor control centers, HVAC systems, pumps, compressors, conveyor equipment, process machinery, and manufacturing equipment that uses separate overload protection.
