FAL360301021 - 30 Amp Circuit Breaker

FAL360301021 - 30 Amp Circuit Breaker

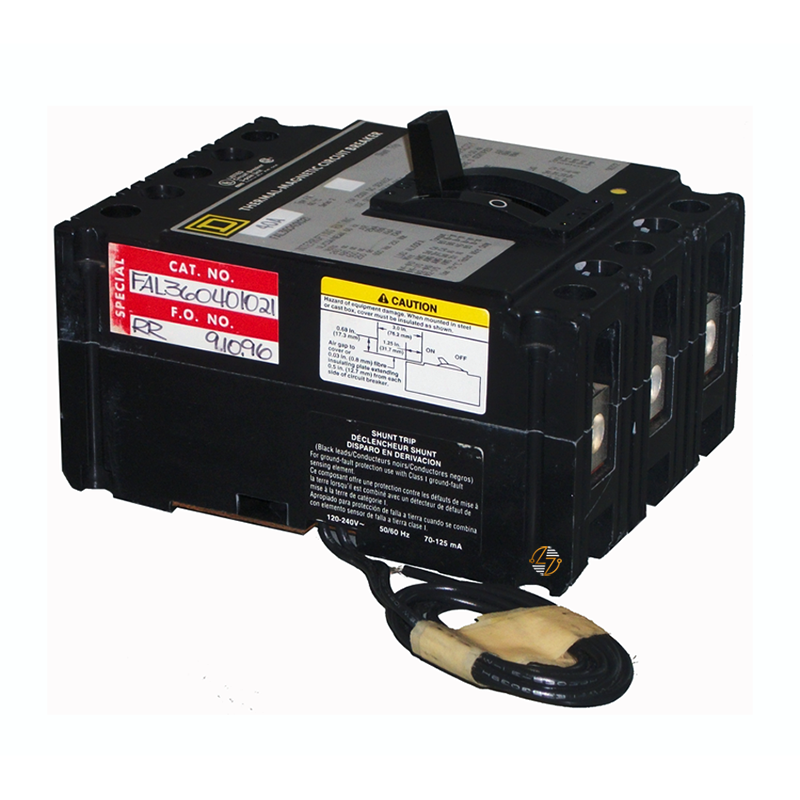

When your circuit breaker with a factory-installed shunt trip needs to be replaced, matching the original ratings and configuration is one of the easiest ways to keep a system operating as intended. The FAL360301021 is a 30 Amp, 3-pole thermal magnetic circuit breaker rated for 600VAC, making it a suitable replacement for compatible FAL installations. Its unit-mount design, line and load lug connections, and AL50FA terminals help maintain the original form, fit, and function without changing the existing equipment layout.

The built-in shunt trip allows the breaker to be opened remotely when connected to an external control circuit. That's a common requirement in facilities that use emergency stop stations, fire alarm systems, or building automation controls to disconnect power from a distance.

Key Features and Benefits

• Catalog number FAL360301021
• 30 Amp current rating
• Three-pole design for three-phase electrical systems
• Factory-installed shunt trip for remote breaker operation
• Thermal-magnetic trip unit for overload and short-circuit protection
• Rated for systems up to 600VAC
• Unit-mount construction for compatible FAL equipment
• Line and load lug connections
• AL50FA terminal configuration
• HACR rated for qualifying HVAC and refrigeration equipment

Technical Specifications

• Catalog Number: FAL360301021

• Product Type: Circuit Breaker with Factory-Installed Shunt Trip

• Trip Unit: Thermal-Magnetic

• Current Rating: 30 Amps

• Voltage Rating: 600 VAC

• Poles: 3

• Breaking Capacity Code: A

• Magnetic Hold Current: 275 Amps

• Magnetic Trip Current: 600 Amps

• Mounting: Unit Mount

• Connections:
  • Line Lugs
  • Load Lugs
• Terminal Identifier: AL50FA

• Phase Connection: ABC

• Application Rating: HACR

• Dimensions:
  • Height: 6.40 in. H
  • Width: 4.50 in. W
  • Depth: 4.13 in. D

Material Compliance and Certifications

The FAL360301021 is UL Listed and CSA Certified for use in applicable North American electrical installations. It also carries an HACR rating for approved heating, air conditioning, and refrigeration applications.

Where It Works Best

This breaker is commonly found in commercial and industrial electrical distribution systems where remote tripping is part of the original design. Typical applications include switchboards, panelboards, HVAC equipment, motor control systems, emergency shutdown circuits, fire alarm interfaces, and building automation systems.
