FAL3601513M - 15 Amp Motor Circuit Protector

FAL3601513M - 15 Amp Motor Circuit Protector

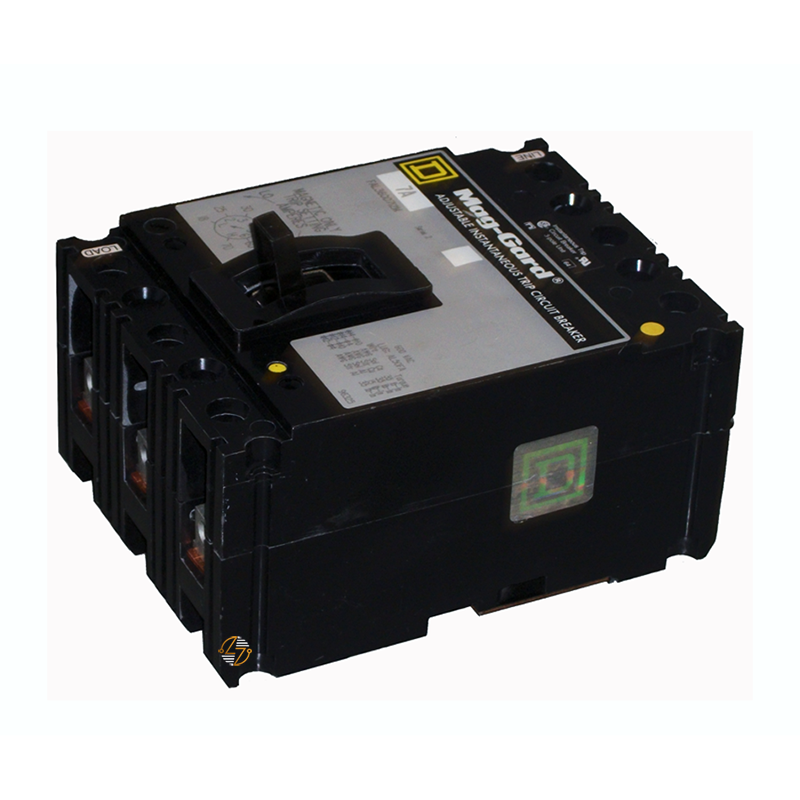

When your motor circuit protector needs to be replaced, the priority is usually simple—find one that matches the original equipment and gets the system back in service without changing the existing design. The FAL3601513M is a 15 Amp, 3-pole motor circuit protector built for use in 600VAC electrical systems and designed for compatible FAL-series applications. It provides instantaneous short-circuit protection for motor branch circuits when used alongside the proper overload protection, making it a practical choice for maintaining existing motor control equipment.

For maintenance teams and electrical contractors, keeping the original form and fit often makes the job easier. This unit fits where a compatible FAL motor circuit protector is already installed, helping preserve the existing panel layout and wiring configuration.

Key Features and Benefits

• 15 Amp motor circuit protector for motor branch circuit applications
• Three-pole design for three-phase electrical systems
• Rated for use on systems up to 600VAC
• Interrupting capacity of 18kA at 480VAC and 25kA at 240VAC
• Compatible with FAL-series installations
• Provides instantaneous short-circuit protection when used with separate overload protection
• Helps maintain the original equipment layout and wiring configuration
• Compact design for commercial and industrial motor control equipment
• Built to last for long-term service
• Well suited for replacement and maintenance projects

Technical Specifications

• Catalog Number: FAL3601513M

• Product Type: Motor Circuit Protector

• Series / Type: FAL

• Amperage: 15 Amps

• Voltage Rating: 600VAC

• Interrupting Rating: 18kA @ 480VAC; 25kA @ 240VAC

• Poles: 3

• Dimensions:
  • 4.50 in. W
  • 6.00 in. H
  • 3.13 in. D
• Approximate Shipping Weight: 6.50 lbs.


Material Compliance and Certifications

The FAL3601513M is intended for use in compatible FAL-series equipment. Installation should be performed by qualified personnel in accordance with the National Electrical Code (NEC), applicable local regulations, and the equipment manufacturer's instructions. Always verify that the electrical ratings and application requirements match the existing installation before replacing a motor circuit protector.

Where It Works Best

• Motor control centers (MCCs)
• Industrial manufacturing facilities
• Commercial buildings with three-phase motor systems
• Pump, fan, and compressor applications
• Conveyor and material handling equipment
• Processing and production machinery
• Existing FAL-series motor control equipment requiring a compatible replacement
• Maintenance projects where preserving the original electrical design is the goal
