FAL341001021 - 100 Amp Circuit Breaker

FAL341001021 - 100 Amp Circuit Breaker

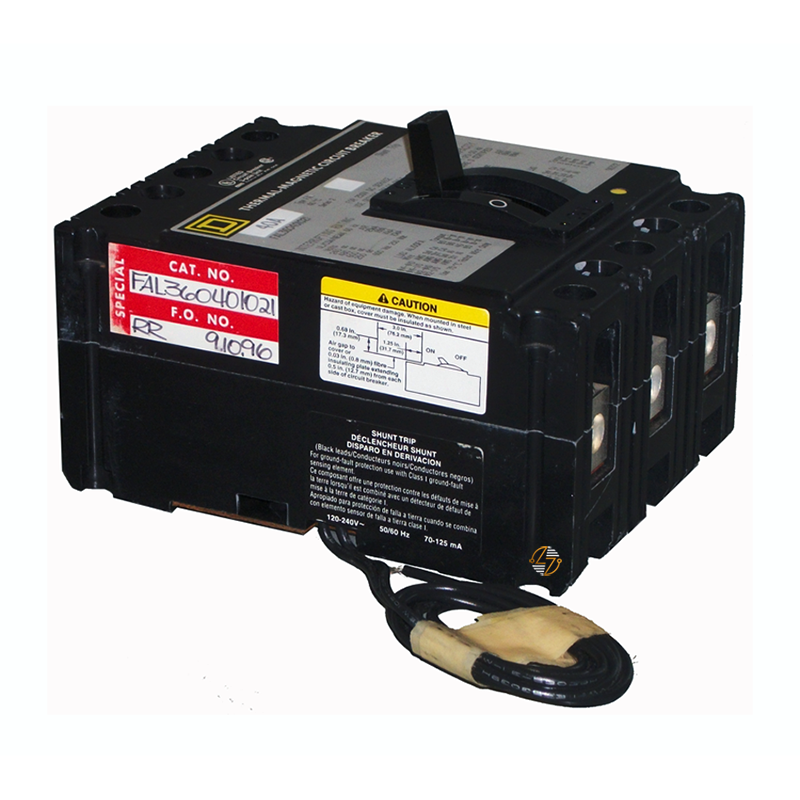

The Square D FAL341001021 is a 100 Amp, 3-pole FA Series molded case circuit breaker with a factory-installed shunt trip for compatible 480 VAC electrical systems. This breaker is typically selected when an existing installation already uses a shunt trip accessory and the replacement needs to match the original equipment configuration.

With its unit-mount design, AL100FA terminal configuration, and line and load lug connections, the FAL341001021 is made for compatible FA Series applications. It provides the same key specifications maintenance teams look for when you're replacing an existing breaker, without requiring changes to the surrounding electrical equipment. Built to last, this breaker is a dependable fit for established commercial and industrial systems.

Key Features and Benefits

• 100 Amp FA Series molded case circuit breaker
• Three-pole design for compatible three-phase applications
• Factory-installed shunt trip for remote breaker operation
• Thermal-magnetic protection for overload and short-circuit conditions
• Designed for compatible 480 VAC systems
• Unit-mount construction
• Line and load lug connections
• AL100FA terminal configuration
• HACR rated for qualifying HVAC and refrigeration applications

Technical Specifications

• Manufacturer: Square D

• Catalog Number: FAL341001021

• Series: FA

• Product Type: Molded Case Circuit Breaker with Shunt Trip

• Current Rating: 100 Amps

• Number of Poles: 3

• Voltage Rating: 480 VAC

• Trip Unit Technology: Thermal-Magnetic

• Accessory: Factory-Installed Shunt Trip

• Breaking Capacity Code: A

• Mounting Mode: Unit Mount

• Electrical Connections:
  • Line Lugs
  • Load Lugs
• Terminal Identifier: AL100FA

• Phase Connection: ABC

• Magnetic Hold Current: 900 A

• Magnetic Tripping Current: 1700 A

• Circuit Breaker Application: HACR Rated

• Dimensions:
  • Height: 6.4 in.
  • Width: 4.5 in.
  • Depth: 4.13 in.

Material Compliance and Certifications

The Square D FAL341001021 is UL Listed and CSA Certified for applicable molded case circuit breaker installations. It is also HACR rated for qualifying heating, ventilation, air conditioning, and refrigeration equipment. Before replacing an existing breaker, verify that the amp rating, voltage class, number of poles, mounting style, terminal arrangement, and shunt trip requirements match the equipment. Install according to the National Electrical Code (NEC) and applicable local electrical codes.

Where It Works Best

• Commercial distribution panels
• Industrial facilities
• Manufacturing equipment
• HVAC systems
• Refrigeration equipment
• Three-phase electrical systems
• Equipment with emergency shutdown requirements
• Compatible FA Series electrical distribution equipment
